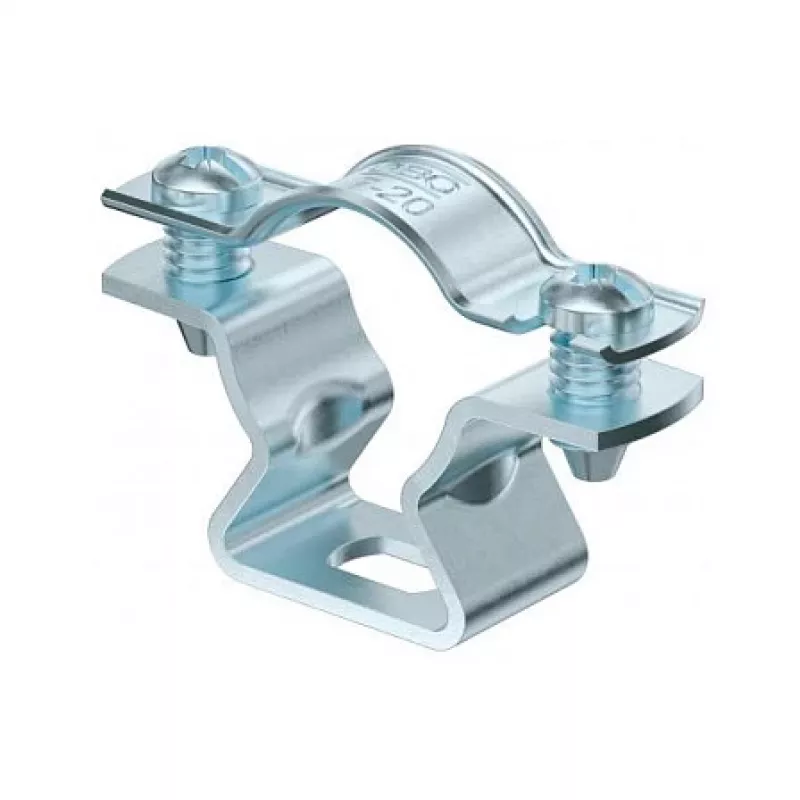

OBO ASL 733 20 G abrazadera de distancia con ranura ovalada 17-20 mm acero galvanizado en caliente

Distance clamp for secure fastening of pipes, cables, and conduits with diameters from 17 to 20 mm. The OBO ASL 733 20 G provides a reliable stand-off of 20 mm from the mounting surface, ensuring proper clearance and ventilation. Made from hot-dip galvanized steel, this clamp offers high corrosion resistance, making it suitable for outdoor and demanding indoor environments. The slotted mounting hole (7 x 15 mm) allows for easy alignment and adjustment during installation on walls or ceilings.

Advantages

Hot-dip galvanized steel construction delivers exceptional durability and long service life even in harsh conditions. The slotted hole design simplifies positioning, compensating for minor drilling inaccuracies. With a wide temperature range from -40 to +100 °C, this clamp performs reliably in extreme climates. Its compact dimensions (40 mm length, 20 mm width) make it unobtrusive while providing a stable hold.

Suitable for

• Fastening pipes with outer diameter 17–20 mm
• Securing cables and conduits in industrial and commercial installations
• Outdoor applications requiring high corrosion resistance
• Wall or ceiling mounting where a 20 mm stand-off is needed

Key specifications

• Product type: Distance clamp
• Material: Steel, hot-dip galvanized
• Clamping diameter range: 17–20 mm
• Mounting hole: Slotted, 7 x 15 mm (diameter x length)
• Stand-off height: 20 mm
• Overall dimensions: 40 x 20 x 20 mm (L x W x H)
• Temperature range: -40 to +100 °C
• Colour: Metallic grey

Recommendations

For optimal performance, use appropriate fasteners for the mounting surface and ensure the clamp is not overloaded beyond its specified diameter range.
