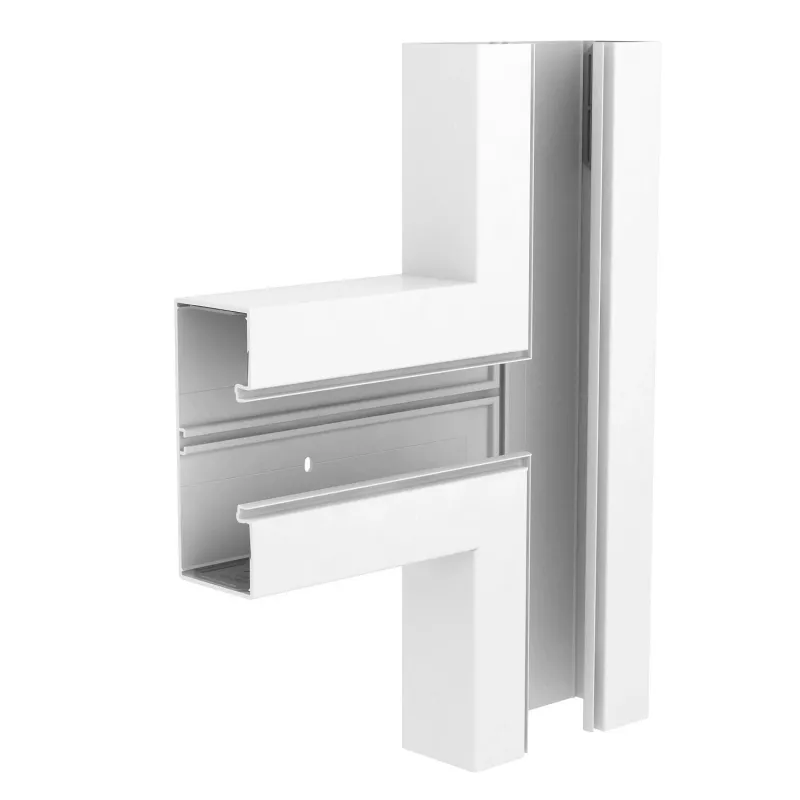

OBO Bettermann pieza en T GK-T70170RW blanco puro 70x170mm 6274760

Routing a branch off a main cable trunking run can be awkward, but this T-piece makes it a clean junction. It is made for the OBO Bettermann GK trunking system and matches 70 mm high by 170 mm wide duct.

Who is it for

Electricians and panel builders who install OBO Bettermann GK trunking and need a factory-made branch point. It saves cutting and fitting a junction by hand.

Main features

• Fits GK trunking 70 mm high and 170 mm wide
• Steel body with powder-coated pure white finish (RAL 9010)
• Halogen-free material
• Non-flame propagating
• Operating temperature -5 °C to +60 °C

Specifications

• Product type: T-piece / T-junction
• Compatible trunking height: 70 mm
• Compatible trunking width: 170 mm
• Material: Steel
• Surface finish: Powder-coated
• Colour: Pure white (RAL 9010)
• Halogen-free: Yes
• UV-resistant: No
• Mounting type: Accessory for cable trunking
• Application: Branching cable routes
• Standard: DIN EN 50085-1
• Operating temperature range: -5 °C to +60 °C
• Fire behaviour: Non-flame propagating

Tips

Use the matching GK trunking and couplers for a secure fit. The powder-coated finish is durable for indoor installations.
