OBO BETTERMANN Rehau signo ZB caja de empotrar para dispositivos BRK GD2 (6133585) caja de empotrar para dispositivos, 2 elementos, blanco puro

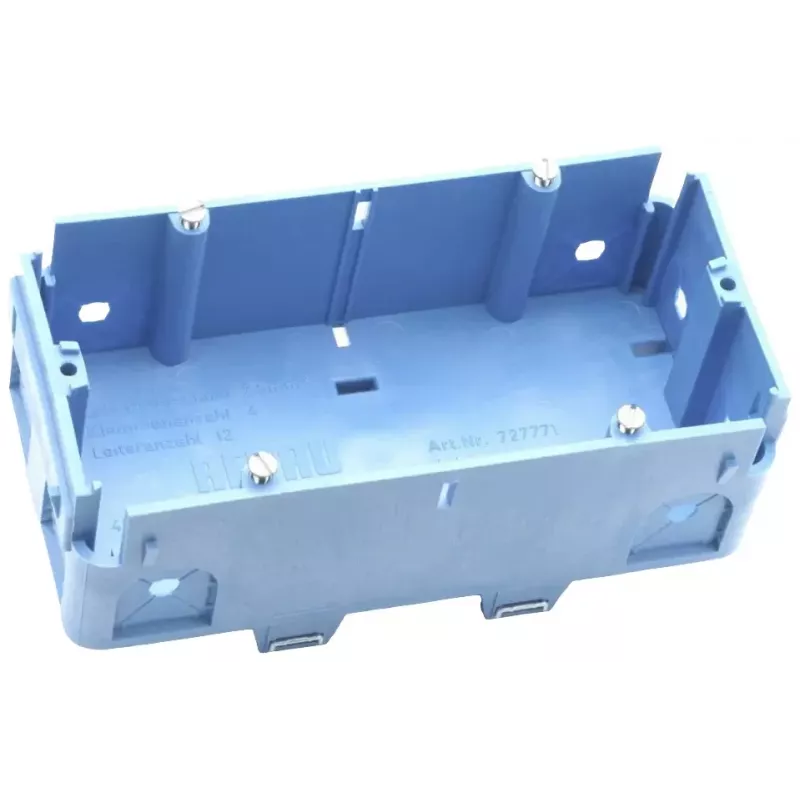

The OBO BETTERMANN Rehau signo ZB Geräteeinbaudose BRK GD2 (6133585) is a device installation box engineered for the REHAU signo ZB dado trunking system. Unlike generic boxes, it is tailored for 60 mm deep trunking and supports widths of 110 mm, 130 mm, and 170 mm, ensuring a precise fit in commercial and office environments.

Highlights

• 2-gang device capacity for multiple installations
• Snap-in / clip-on mounting for quick assembly
• Pure white (RAL 9010) PVC construction
• Compatible with REHAU signo ZB trunking system

In daily use

This box simplifies electrical installations in dado trunking. Its snap-in design reduces installation time, while the standard screw fixing provides secure device mounting. The PVC material offers durability in indoor settings.

Full specifications

• Product Type: Device Installation Box
• System Compatibility: REHAU signo ZB Dado Trunking System
• Trunking Depth Compatibility: 60 mm
• Trunking Widths Supported: 110 mm, 130 mm, 170 mm
• Number of Device Positions: 2-gang
• Material: PVC (Polyvinyl Chloride)
• Color: Pure White
• RAL Color Code: RAL 9010
• Halogen-free: No
• Mounting Method: Snap-in / Clip-on
• Device Mounting: Standard screw fixing
• Protection Class: IP20
• Operating Temperature Range: -5°C to +60°C
• Application Area: Commercial, Office, Public Buildings
• Certifications: CE Compliant

Final note

Designed for seamless integration with REHAU signo ZB trunking, this box provides a reliable solution for organized electrical installations.
