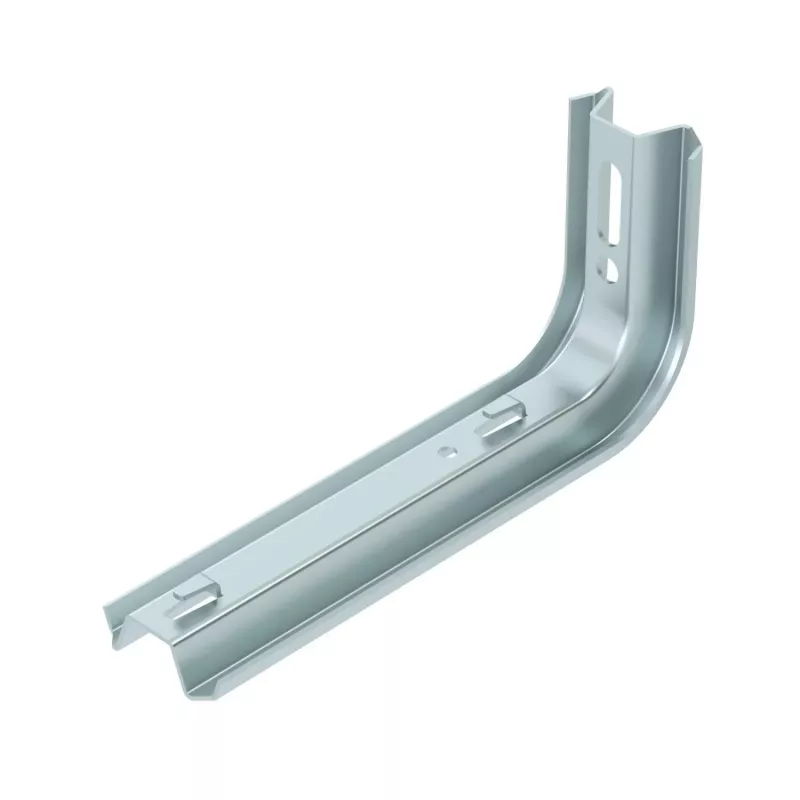

OBO Bettermann TPSAG 245 FS Soporte para bandeja de rejilla 200 mm, acero galvanizado en caliente 6366031

Cantilever for mesh cable trays, providing robust support for cable routing in industrial and commercial environments. Its hot-dip galvanised steel construction ensures high corrosion resistance for indoor and outdoor use.

Advantages

Hot-dip galvanised finish per DIN EN ISO 1461 delivers long-lasting protection against corrosion. The cantilever supports mesh cable trays up to 200 mm width with a usable support length of 200 mm and a load capacity of 0.2 kN.

Suitable for

• Mesh cable trays up to 200 mm width
• Wall or ceiling mounting in industrial, commercial, and public buildings
• Indoor and outdoor cable routing applications

Key specifications

• Material: Steel
• Surface finish: Hot-dip galvanised (FS)
• Cantilever length: 245 mm
• Profile dimensions: 40 x 40 mm
• Mounting hole diameter: 11 mm (for M10 anchors)
• Number of mounting holes: 2

Recommendations

For secure installation, use appropriate fastening elements (not included) suitable for the wall or ceiling substrate.
