OBO Bettermann Vertr soporte colector Grip ignífugo 960Grad 20 (2205412) - soporte de mazo de cables resistente al fuego, 20 mm, gris claro

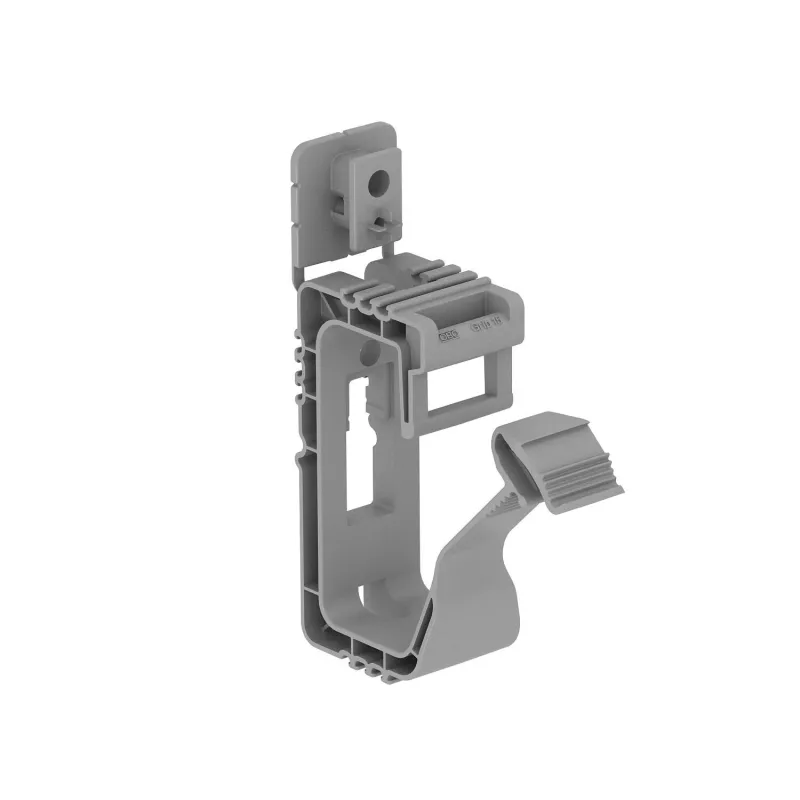

Cable bundles in fire protection routes need a holder that maintains its integrity under extreme heat. The OBO Bettermann Vertr Grip-Sammelhalterung flammwidrig 960Grad 20 (2205412) provides secure retention for cables and pipes with a fire resistance rating of 960°C. Its grip-type design holds bundles up to 20 mm in diameter, while the halogen-free polyamide PA6 V0 material is self-extinguishing and suitable for operating temperatures from -20 to +90 °C.

Who is it for

Electricians and installers working on fire-rated cable routes in commercial and industrial buildings. This holder is essential where building codes require cable supports that withstand fire conditions without contributing to flame spread.

Main features

• Fire resistance rating: 960°C (flame-retardant)
• Material: Halogen-free polyamide PA6 V0, light grey (RAL 7035)
• Maximum bundle diameter: 20 mm
• Single screw mounting with 6.1 mm hole diameter
• Self-extinguishing and suitable for indoor use

Specifications

• Product type: Cable bundle holder / collecting bracket
• Operating temperature range: -20 to +90 °C
• UV-resistant: No
• Suitable for outdoor use: No
• Application: Secure bundling of cables and pipes in fire protection routes
• Design: Grip-type for secure and flexible cable retention
• Compliance: Meets fire protection requirements for cable installations

Tips

For optimal fire safety, pair this holder with fire-rated cable ties and ensure the mounting surface is non-combustible. The single screw design allows quick installation, but verify the screw length to avoid damaging the substrate.
