Soporte DAHUA PFB303W – soporte de cámara de aluminio impermeable, rosca de 1/2", capacidad de carga 7 kg, 115×255×160 mm

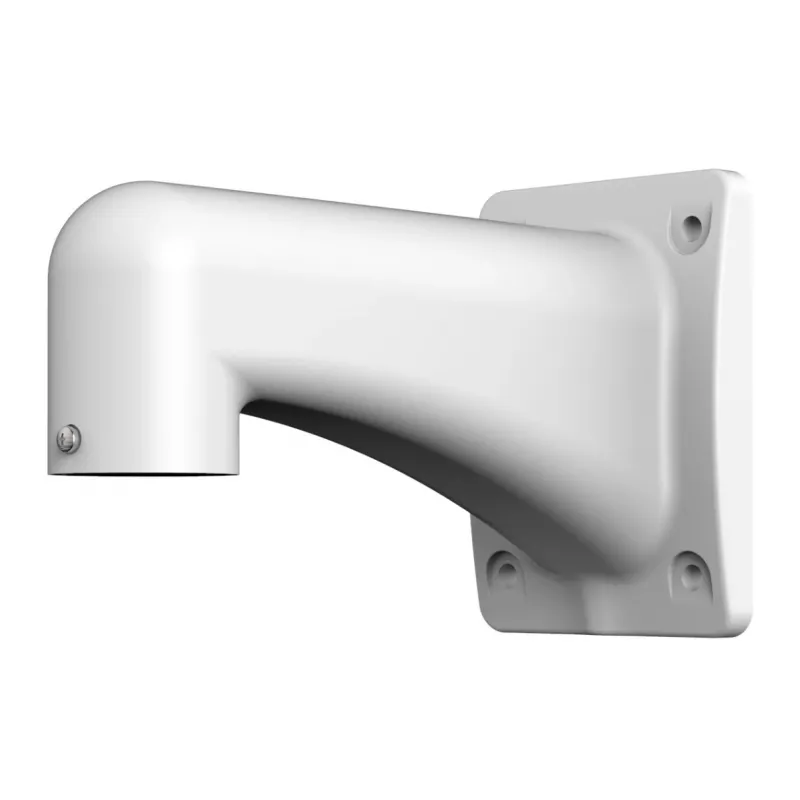

DAHUA PFB303W is an aluminium outdoor wall mount bracket designed for CCTV camera and housing installations. The bracket measures 115×255×160 mm and provides a compact, integrated mounting solution with a 1/2" connecting thread and a rated load capacity of up to 7 kg. The mount features a neat, low-profile design and is finished to withstand exterior conditions, making it suitable for use with a wide range of surveillance cameras and housings.

Advantages

The aluminium construction offers a balance of strength and corrosion resistance while remaining lightweight for easier handling during installation. The waterproof design protects internal fixing points and connections from moisture and dust exposure in outdoor environments. A standard 1/2" thread ensures compatibility with many camera housings and accessories, and the 7 kg load rating supports most dome and bullet cameras used in exterior CCTV systems.

Suitable for

• Mounting outdoor surveillance cameras on vertical walls
• Installing camera housings that require a 1/2" connecting thread
• Small to medium-weight dome and bullet cameras up to 7 kg
• Exterior CCTV points where a neat, integrated bracket is desired

Key specifications

• Material: aluminium
• Mount type: wall mount bracket
• Connecting thread: 1/2"
• Maximum load capacity: 7 kg
• Dimensions (W×D×H): 115×255×160 mm
• Protection: waterproof design for outdoor use
• Design: neat and integrated appearance

How to use

Position the bracket on a suitable vertical surface and mark anchor points according to the bracket's mounting holes. Use appropriate anchors and fasteners for the wall material. Attach the bracket securely, route camera cables through the bracket as required, and connect the camera or housing using the 1/2" thread. Verify that the combined camera and housing weight does not exceed the 7 kg capacity and adjust mounting fasteners for correct alignment and stability.

Recommendations

For reliable long-term performance, use corrosion-resistant fasteners suitable for outdoor environments and seal cable entry points to maintain the waterproof integrity of the installation. Periodically inspect mounting hardware and seals, especially after severe weather, to ensure continued structural safety and protection against moisture.
