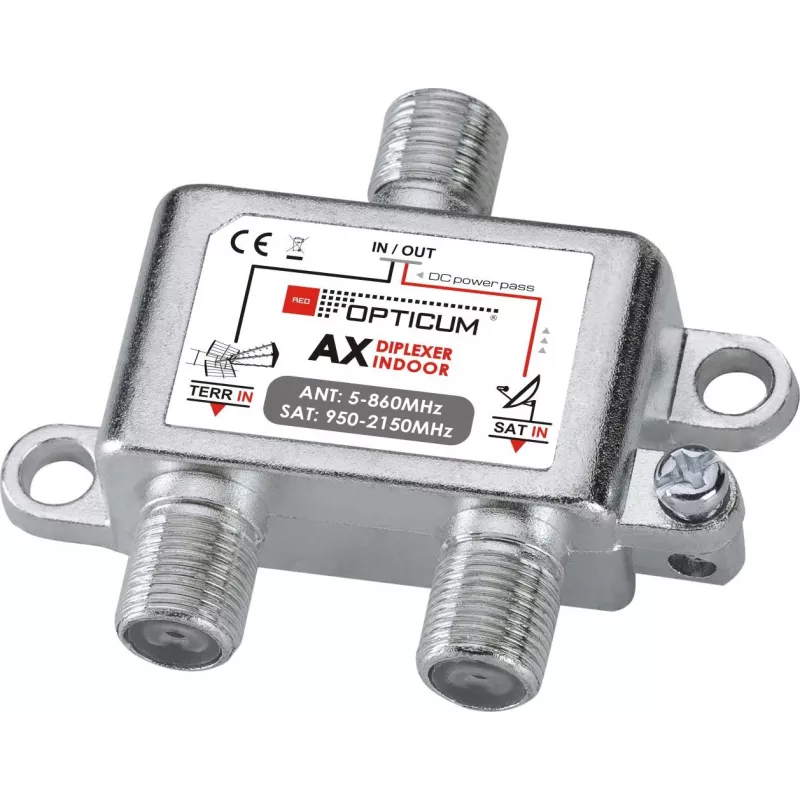

OPTICUM Combiner RTV/SAT IN

The OPTICUM Combiner RTV/SAT IN (model ANT0046) combines a satellite signal from a single LNB with a terrestrial TV signal. It features one SAT input and one DVB-T input, and passes a maximum voltage of 24V DC at 500 mA.

Key features

• Combines satellite and terrestrial TV signals
• 1 SAT input
• 1 DVB-T input
• Passes 24V DC, 500 mA (max)

Specifications

• Brand: Opticum
• MPN: ANT0046
• DVB-T frequency range: 5-862 MHz
• SAT frequency range: 950-2150 MHz
• Application: Combining satellite signal from a single LNB with terrestrial TV signal
