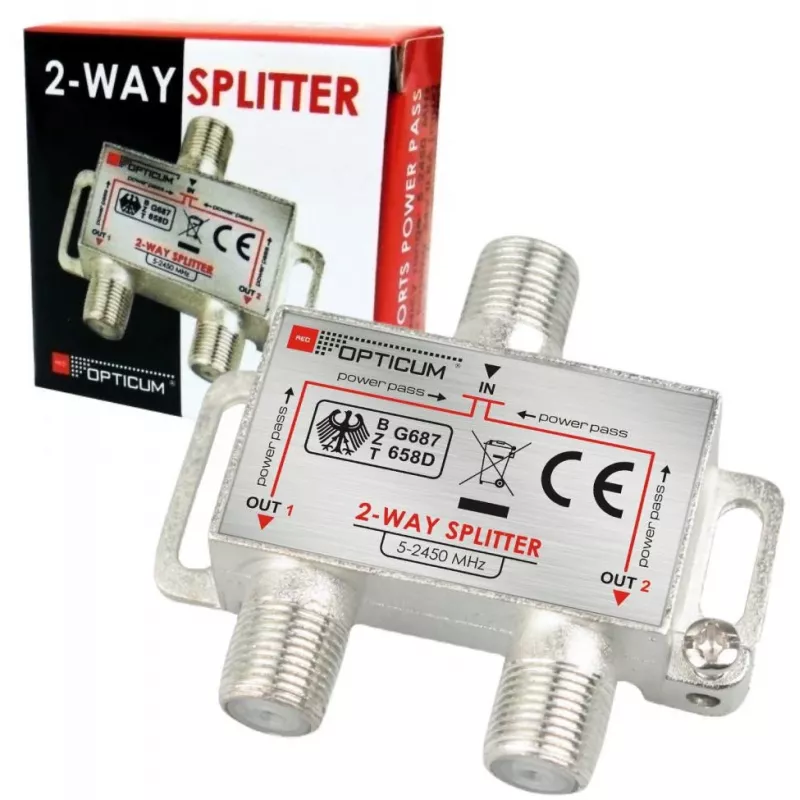

OPTICUM ANT0041 distribuidor de señal de TV por satélite y terrestre de 2 vías, 5-2400 MHz, tipo F, paso DC

When you need to feed a second TV or set-top box from a single satellite or terrestrial antenna line, the OPTICUM ANT0041 splitter is a reliable solution. This compact splitter takes one input and divides it into two outputs, allowing you to connect two receivers without running additional cables. It's ideal for apartments, homes, or small offices where a single antenna feed must serve multiple rooms. The splitter supports both terrestrial (DVB-T/T2, DAB, FM) and satellite (DVB-S/S2) signals, covering the full 5-2400 MHz range. With DC pass-through on one output, it can power an LNB or an active antenna, simplifying installation.

Key specifications

• 1 input, 2 outputs (F-type female connectors)
• Frequency range: 5-862 MHz (terrestrial) and 950-2400 MHz (satellite)
• Insertion loss: ≤4.0 dB (terrestrial), ≤5.0 dB (satellite)
• Isolation between outputs: ≥20 dB
• Return loss: ≥10 dB
• Impedance: 75 Ohm
• DC pass on one output (for LNB power)
• Die-cast zinc alloy housing with high shielding (≥100 dB)
• Indoor use, operating temperature -20 to +50 °C

Why choose it

The OPTICUM ANT0041 is built to last with a rugged die-cast housing that provides excellent shielding against interference. Its low insertion loss ensures strong signal levels at both outputs, and the DC pass feature lets you power a satellite LNB or an active terrestrial antenna directly through the splitter. It's compatible with all common digital TV standards, making it a versatile choice for mixed installations.

Ideal use cases

• Distributing a satellite signal to two receivers in different rooms
• Splitting a terrestrial antenna signal for two TVs
• Connecting a TV and a DVR to the same antenna feed
• Powering an active antenna or LNB through the splitter

Good to know

The splitter is designed for indoor use only and should be installed in a dry location. It passes DC on one output only; connect the device requiring power (like an LNB) to that port. The F-type connectors are standard for satellite and cable TV, and the compact size allows easy mounting behind a TV or in a distribution box.
