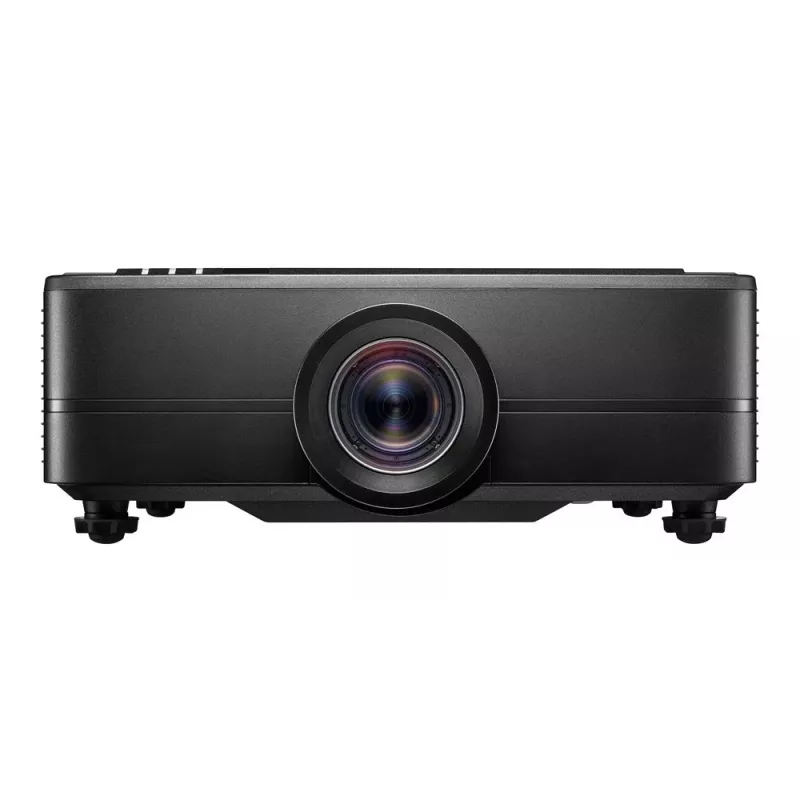

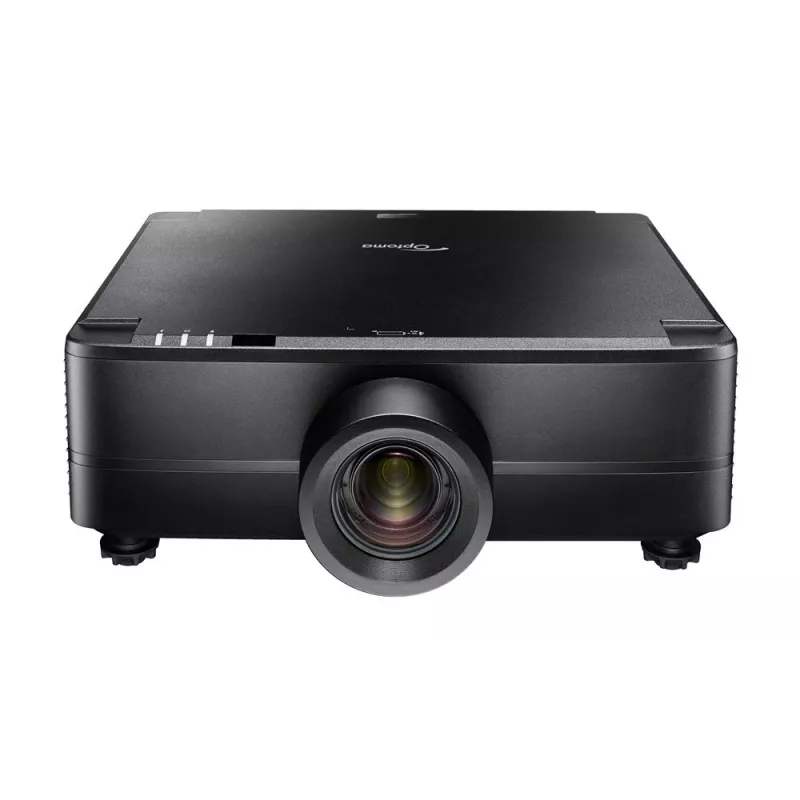

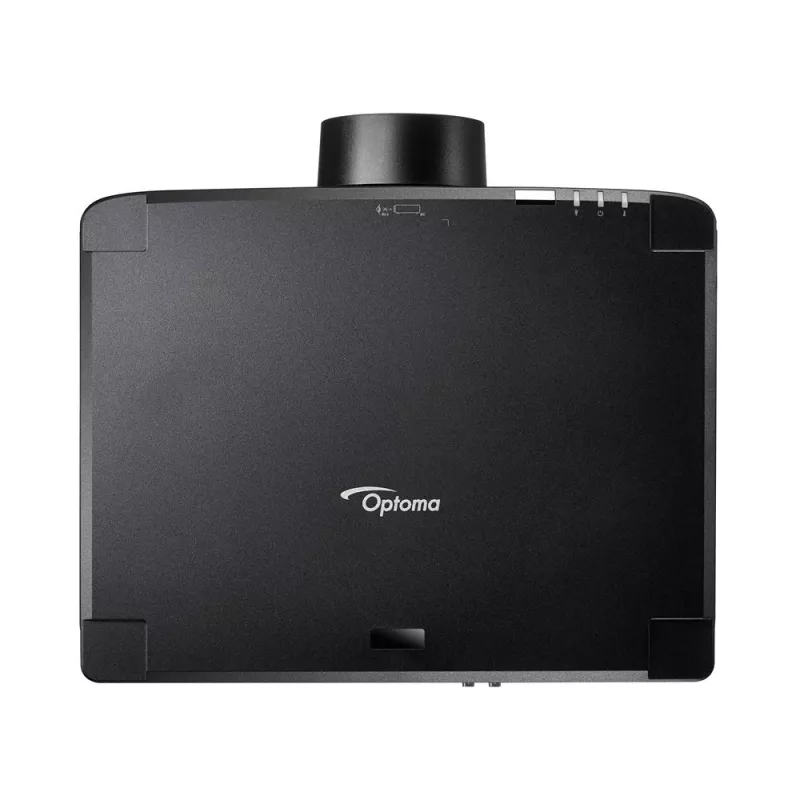

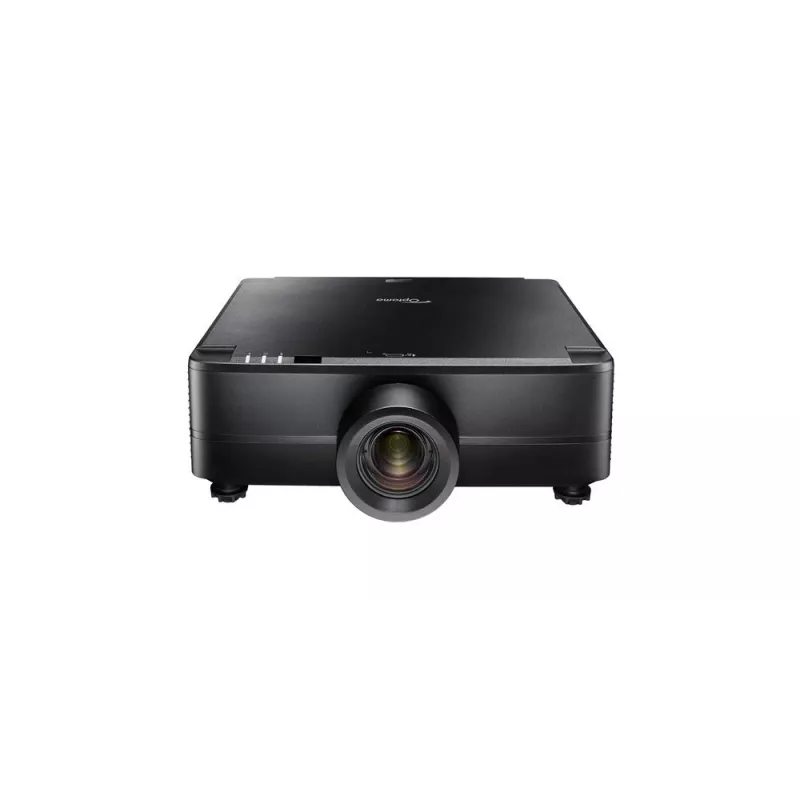

Optoma ZU920T Proyector de distancia ultra corta 9800 ANSI Lumen DLP WUXGA 3D Negro

Ultra bright professional installation laser projector
At 9,800 lumens with 4K and HDR compatibility, the ZU920T features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorized zoom and focus, full motorized lens shift, and built-in dual 10W speakers.

High brightness, color precision and quiet operation, along with a standard throw lens makes this projector the ideal solution for a variety of end-user scenarios and professional environments, such as digital signage, edge-blending and projection mapping, simulation, and immersive installations.

The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.

DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Full lens shift
Full lens shift makes installation simple and hassle-free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.

Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry-leading durability; paramount for 24/7 maintenance-free operation in challenging environments.

HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT-type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

HDR compatible
Capable of receiving and displaying HDR metadata, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth. It’s like looking through a window.

Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

360 projection
With 360° projection, images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on-screen display or with PC software depending on the model.

Colour Management System (CMS)
Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings of your projector for optimal precision.

True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality, no light is emitted from the projector, giving 100% blackout on the screen.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting, and the latest generation 3D media servers.

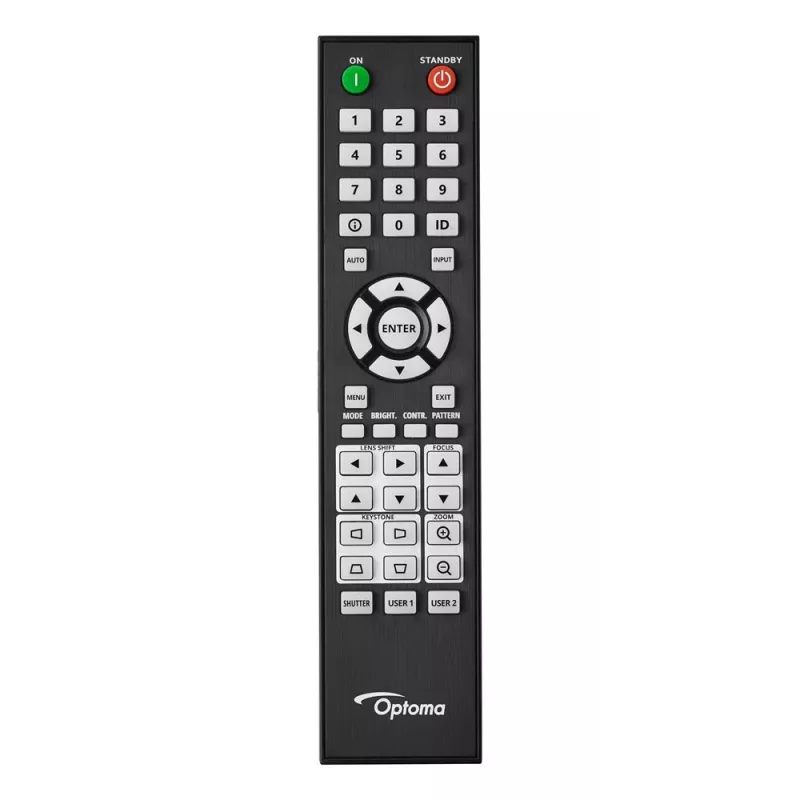

Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Customize your projector
Have your projector in any color. Choose from any RAL color. Perfect for bespoke installations.

Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere in between.

Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for fine-tune installations.

Telnet
This model is able to receive commands via Telnet allowing for easy installation with Telnet-compatible control systems.

How to use

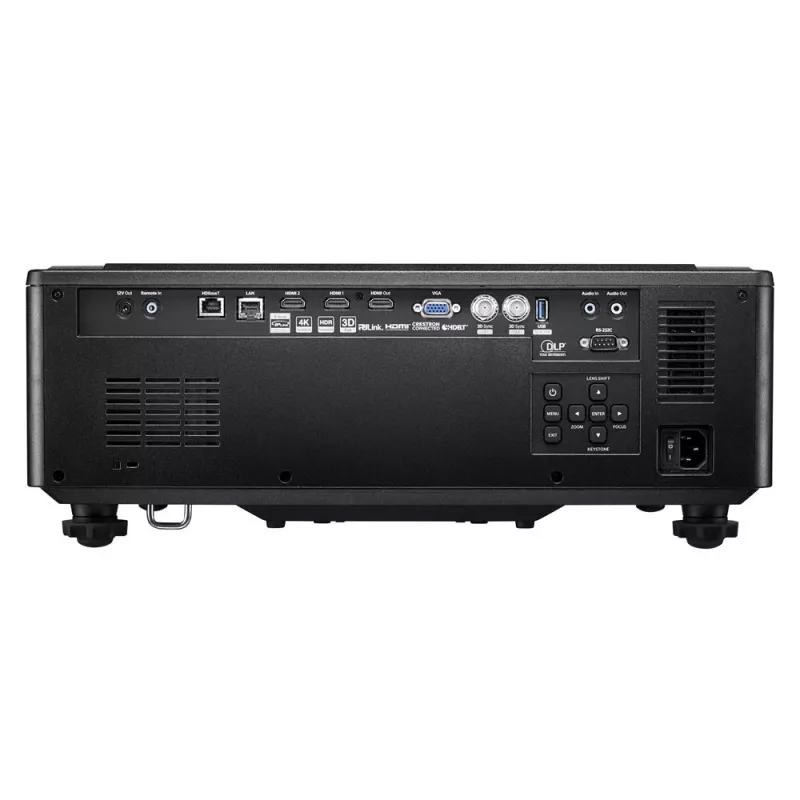

Install the ZU920T on a suitable mount or surface and adjust motorized zoom, focus and full lens shift to position the image without moving the projector. Use the on‑screen display or network control (LAN/HDBaseT/Telnet) to configure picture settings, warping and edge blending for multi‑projector setups, and to apply Color Management adjustments. For portrait or 360° projection, rotate the unit as required and verify orientation in the OSD. Connect signal and control sources via HDMI, HDBaseT or the supported inputs and power the projector on. The wired remote option enables control without line‑of‑sight when multiple units are in use.

Recommendations

For continuous 24/7 installations, enable Eco mode and use the constant brightness and constant power settings to balance image output and laser life. Ensure regular environmental assessment of the installation site to maintain airflow around the projector and confirm IP5X suitability for dusty environments. Use HDBaseT for simplified long‑distance cabling up to 100 m and employ integrated warping/edge blending to minimize extra hardware.
