Proyector de ultra corta distancia Optoma ZU500USTe 5000 lúmenes ANSI DLP WUXGA

The Optoma ZU500USTe is an ultra short throw DLP projector with WUXGA resolution (1920x1200) and 5000 ANSI lumens of brightness. It uses a DuraCore laser light source with an extended lifetime (rated up to 30,000 hours) and a fixed ultra-short throw lens (throw ratio 0.253:1, focal length 3.7 mm). The compact, lamp-less and filter-free design reduces running costs and supports 24/7 operation with IP5X dust-resistant optical engine for reliable performance in continuous-use or challenging environments.

Advantages

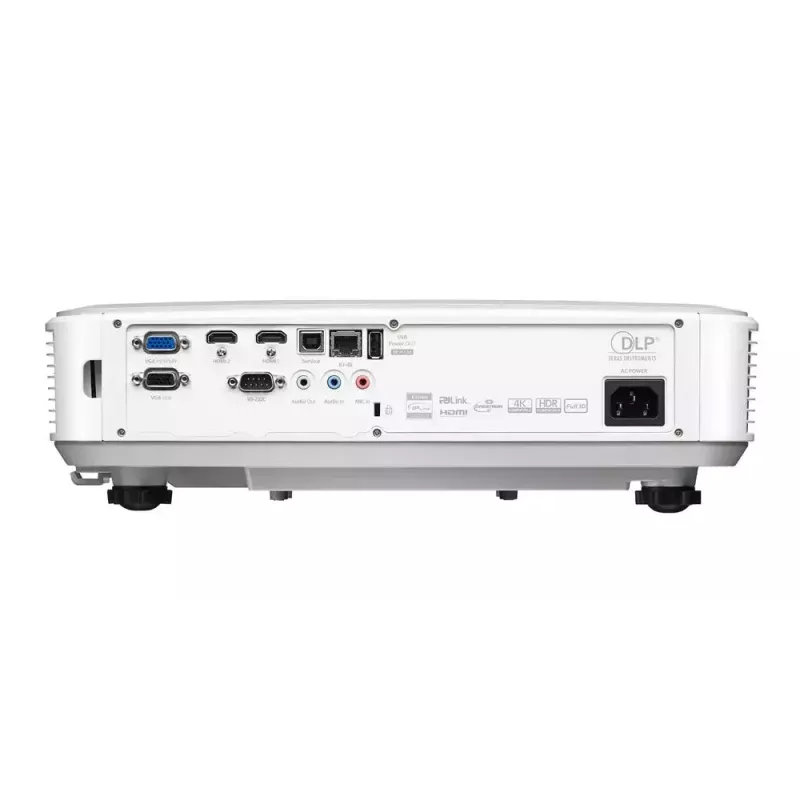

The ZU500USTe delivers high brightness and superior contrast while maintaining accurate colour performance suitable for graphics and video content. Its ultra short throw capability allows projection of very large images from a few centimetres from the surface, minimising shadows and enabling installation in tight spaces such as shop windows or retail displays. The projector includes integrated control options (RS232, AMX, Crestron RoomView, Extron IPLink), a built-in speaker, AV mute, direct power on/off and support for full 3D formats. An optional DuraCare warranty package extends serviceability up to 5 years or 24,000 hours with a 12,000-hour preventative maintenance service.

Suitable for

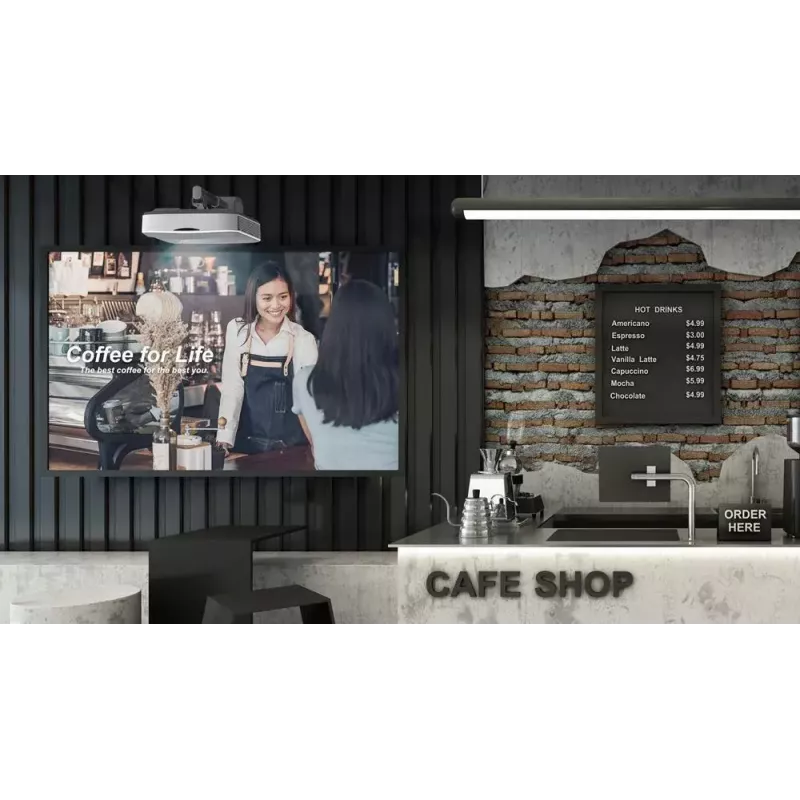

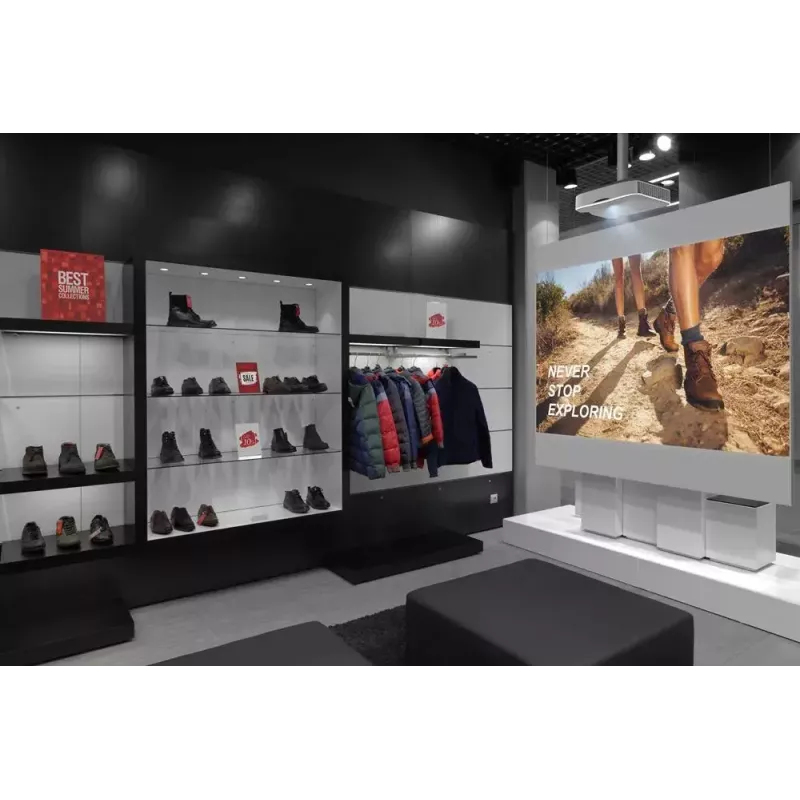

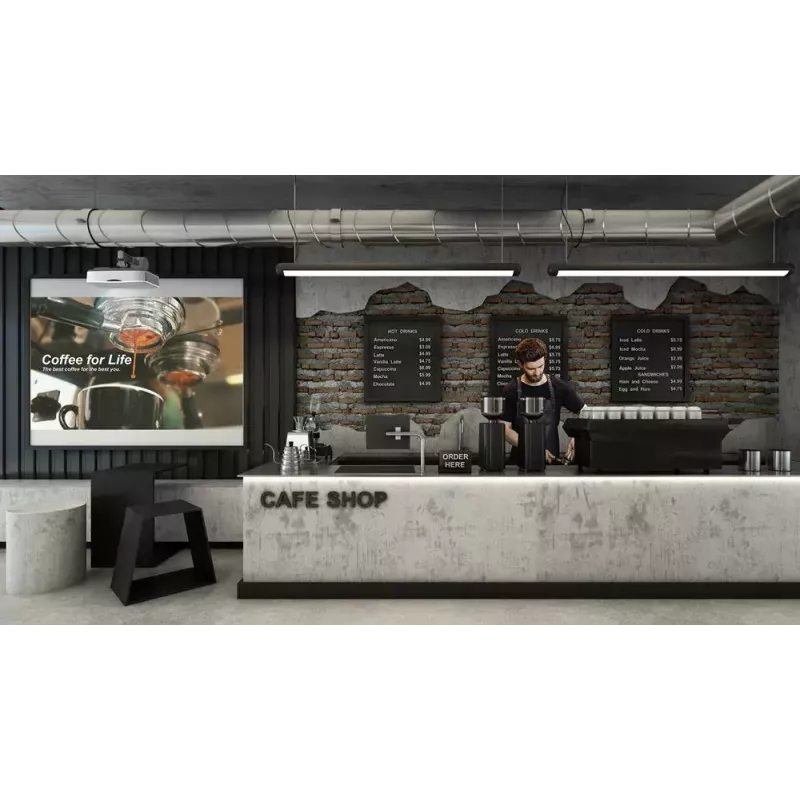

• Retail signage and shop window displays

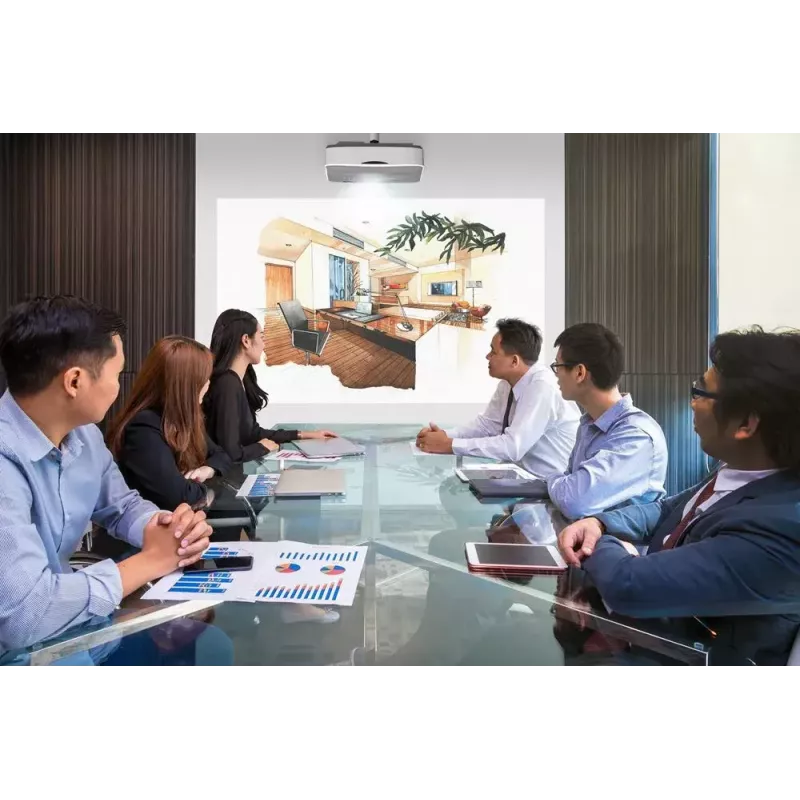

• Corporate meeting rooms and presentation spaces
• Digital signage in public or high-use areas
• Interactive installations and museums
• Education and training rooms requiring bright, durable projection

Key specifications

• Projection technology: DLP
• Native resolution: WUXGA (1920 x 1200)
• Brightness: 5000 ANSI lumens
• Light source: DuraCore laser, up to 30,000 hours
• Throw ratio: 0.253:1 (ultra short throw)
• Fixed focal length: 3.7 mm
• Aspect ratio: 16:10
• Screen size compatibility: approx. 3352.8 – 3937 mm
• Weight: 7.8 kg
• Colour: White
• IP rating: IP5X dust-resistant optical engine

How to use

Mount the projector close to the projection surface using a suitable ultra-short-throw mount or existing EPSON® replacement adapter if replacing a compatible UST projector. Connect video and control sources via your chosen interfaces and configure projector settings using on-screen menus or remote control. For interactive use, position the unit to minimise shadows and adjust four-corner correction to square the image on uneven surfaces. Use direct power on to start the projector when mains power is applied and direct power off to switch it off immediately at the mains without waiting for cool-down.

Recommendations

For continuous 24/7 operation, follow Optoma’s guidelines: allow the projector to enter standby or be turned off for about 30 minutes every 24 hours to prolong component life. Consider the DuraCare warranty and 12,000-hour re-manufacture service for very high duty installations to maintain brightness and reliability over extended periods.
