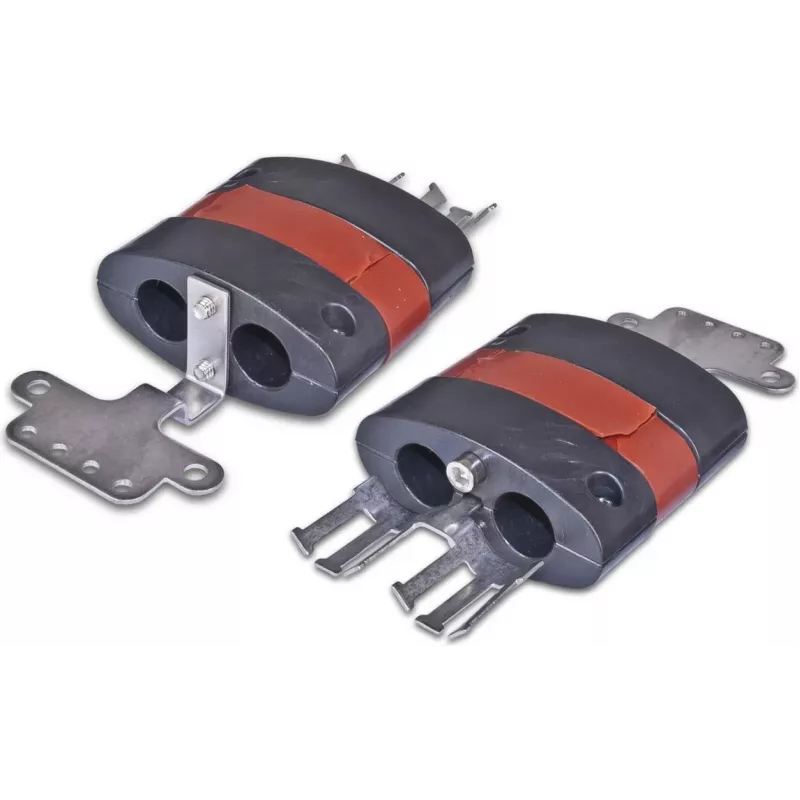

Optotec Set de juntas de silicona termorretráctil para entrada de cables para 2 cables (12-20mm), oval FTTx (FOCUS-ODCKIT-CCSO-2X20)

Sealing cable entry points in FTTx networks can be challenging, especially when dealing with multiple cables of varying diameters. This cold shrink cable entry seal kit provides a reliable, tool-free solution for sealing two cables with diameters between 12 and 20 mm, ensuring long-term protection against environmental factors.

Who is it for

Network installers and technicians working on FTTx (Fiber to the X) deployments who need a quick, durable, and weather-resistant sealing method for cable entries in outdoor or indoor enclosures.

Main features

• Seals two cables with diameters from 12 to 20 mm in an oval entry port
• Made from high-grade silicone rubber for excellent elasticity and tear resistance
• Cold shrink technology: no heat, tools, or flame required for installation
• Provides IP68-rated protection against dust and water immersion
• UV and weather resistant for long-term outdoor use
• Operating temperature range: -40°C to +80°C

Specifications

• Product type: Cold shrink cable entry seal kit
• Sealing material: High-grade silicone rubber
• Application: FTTx networks
• Cable capacity: 2 cables
• Cable entry shape: Oval
• Compatible cable diameter range: 12 - 20 mm
• Installation method: Cold shrink (no heat or tools)
• Environmental protection: IP68 (dust-tight, water-resistant for continuous immersion)
• UV resistance: Yes
• Weather resistance: Excellent
• Operating temperature range: -40°C to +80°C
• Storage temperature range: -40°C to +80°C
• Material properties: Excellent elasticity, tear resistance, chemical resistance
• Compatibility: Outdoor and indoor use
• Standards compliance: RoHS compliant

Tips

Ensure the cable entry surface is clean and dry before installation. The cold shrink sleeve will contract to form a tight seal around the cables, so no additional sealing compounds are needed.
