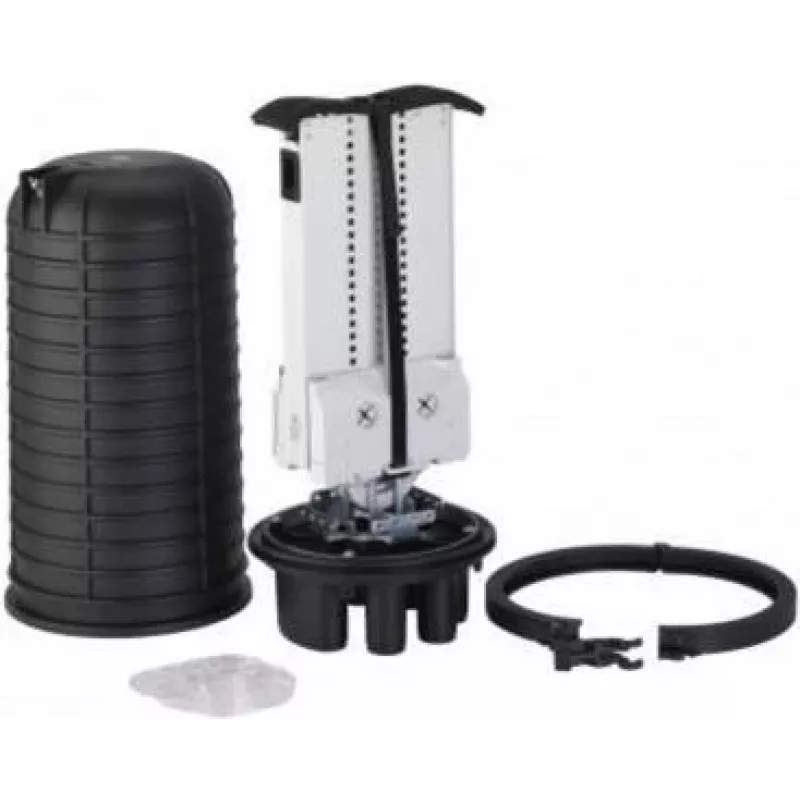

Optotec manguito de empalme IP68 Outdoor Dome, máx. 432 fibras, 525 mm de altura, 2x oval, 8x redondo FTTx (FOCUS-ODC2-CB)

The FOCUS-ODC2-CB stands apart with its high fiber capacity of 432 splices in a compact dome design, paired with versatile cable entry options for demanding FTTx deployments. Its IP68-rated mechanical sealing and re-enterable structure make it a practical choice for outdoor networks that require both protection and accessibility.

Highlights

• Maximum fiber capacity: 432 fibers
• IP68 environmental protection for outdoor use
• 10 cable entry ports: 2 oval and 8 round
• Mechanical sealing with re-entry capability
• High-strength UV-resistant engineering plastic
• Operating temperature: -40°C to +65°C

In daily use

This dome closure is built for outdoor installation in underground, aerial, duct, or pole/wall mount scenarios. The oval ports accommodate cables with diameters of 10–25 mm, while the round ports suit 5–18 mm cables, providing flexibility for various network designs. A pressure valve allows for integrity testing after installation, and the closure can be reopened for maintenance or capacity expansion.

Full specifications

• Product type: Fiber optic splice closure
• Closure type: Dome closure
• Environmental protection: IP68
• Maximum fiber capacity: 432 fibers
• Total cable entry ports: 10 (2 oval, 8 round)
• Application: FTTx, telecommunication networks, CATV, data networks
• Sealing mechanism: Mechanical sealing
• Re-entry capability: Yes
• Material: High-strength UV-resistant engineering plastic
• Operating temperature: -40°C to +65°C
• Relative humidity: Up to 95% (non-condensing)
• Pressure valve: Yes
• Maximum splice trays: Up to 18 (24-fiber trays)
• Cable diameter range (oval ports): 10–25 mm
• Cable diameter range (round ports): 5–18 mm
• Colour: Black

Final note

A robust and adaptable solution for high-count fiber splicing in outdoor FTTx networks, offering reliable protection and easy re-entry.
