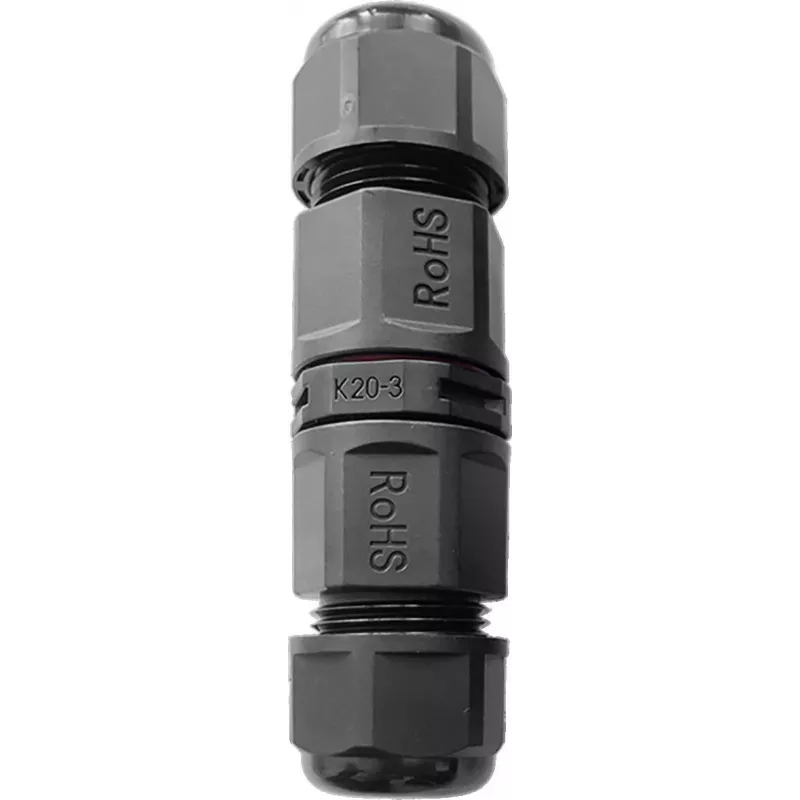

ORNO Conector de cable recto IP68 3x4mm² 400V/20A Quick Terminal OR-AE-13620

The ORNO OR-AE-13620 is a professional-grade straight cable coupler designed for reliable and secure electrical connections in demanding environments. With an IP68 rating, it offers complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and wet location applications. The coupler features a quick terminal (screwless) connection method for fast and tool-free installation, accommodating wire cross-sections from 0.5 mm² to 4 mm² and cable diameters from 4 to 8 mm.

Advantages

This cable coupler provides a waterproof and dustproof seal, ensuring long-lasting performance even in harsh conditions. The screwless quick terminal simplifies wiring, reducing installation time and effort. Its robust polyamide (PA66) and PC housing, combined with silicone sealing, offers excellent durability and resistance to extreme temperatures from -40°C to +105°C. The coupler is also flame retardant (UL94-V0) and compliant with CE and RoHS standards.

Suitable for

• Outdoor lighting and power distribution
• Industrial machinery and equipment connections
• Wet locations such as gardens, pools, and marine environments
• Temporary or permanent electrical installations requiring a reliable, waterproof connection

Key specifications

• Connector Type: Straight Cable Coupler
• Ingress Protection: IP68
• Number of Poles: 3
• Max Wire Cross-Section: 4 mm²
• Min Wire Cross-Section: 0.5 mm²
• Rated Voltage: 400V AC
• Rated Current: 20A
• Connection Method: Quick Terminal (Screwless)
• Compatible Cable Diameter: 4 - 8 mm
• Housing Material: Polyamide (PA66), PC
• Seal Material: Silicone
• Operating Temperature: -40°C to +105°C
• Colour: Black
• Flammability Rating: UL94-V0
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure that the cable diameter is within the specified range and that the quick terminal is fully engaged. This coupler is not suitable for use with solid-core cables without ferrules. Always verify compatibility with your specific application before installation.
