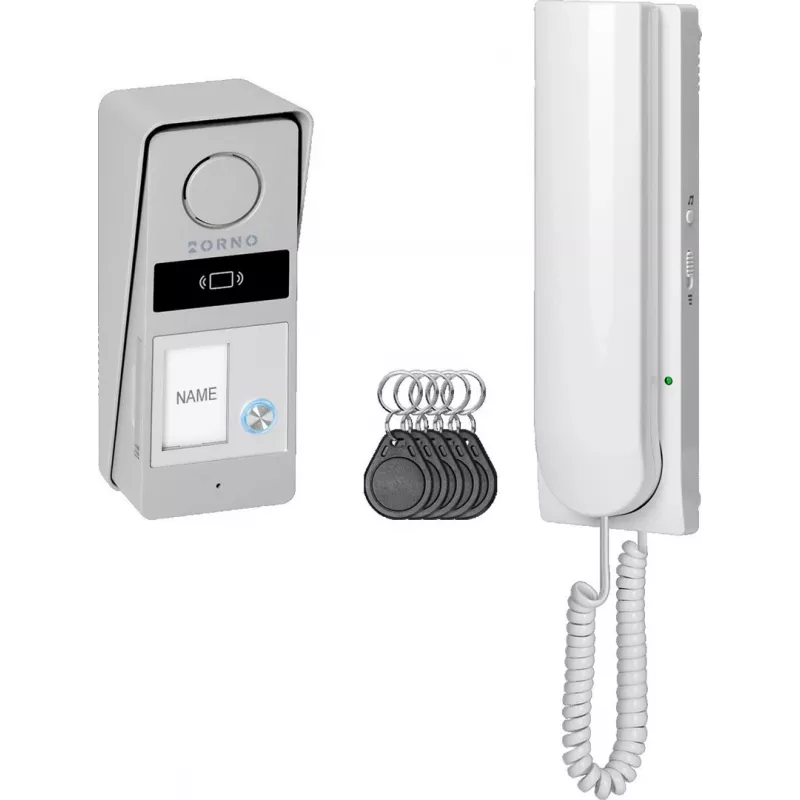

ORNO OR-DOM-RD-937/W kit de portero automático analógico, 1 unidad interior, 1 panel exterior, blanco/plata

The ORNO OR-DOM-RD-937/W is an analog door phone kit consisting of one internal unit and one external panel. It is a wired, single-family system with mains power supply and supports electric strike control and gate automation. The external panel features an RFID card and key fob reader with a frequency of 125 kHz.

Key features

• Analog door phone kit with 1 internal unit and 1 external panel
• Wired transmission, two-wire installation
• Mains power supply, 15V DC 1A
• Electric strike control: yes, additional power supply not required
• Gate automation control: yes
• External panel: RFID reader 125 kHz, max. 100 users (key fobs included: 5 user, 2 admin)
• External panel: 1 call button, label space, cover, IPX5, aluminium, black
• Internal unit: surface mounting, 16 ringtones, volume control, call mute, plastic, black

Specifications

• Brand: ORNO
• MPN: OR-DOM-RD-937/W
• Type: single-family
• Video function: no
• Power supply: mains
• Supply voltage: 15V DC 1A
• Transmission type: wired
• Smartphone communication: no
• Installation method: two-wire
• Number of wires (from external panel to electric strike): 2 (+2)
• Number of internal units: 1
• Number of external panels: 1
• Expandable to max. number of internal units: 1
• Expandable to max. number of external panels: 1
• Electric strike power supply: additional power supply not required
• Electric strike connection system: with external panel
• Internal unit mounting: surface mounting
• Hands-free system: no
• Intercom function: no
• Number of ringtones: 16
• Volume control: yes
• Call mute: yes
• Internal unit material: plastic
• Internal unit colour: black
• Internal unit width: 62 mm
• Internal unit height: 201 mm
• Internal unit depth: 54 mm
• External panel number of call buttons: 1
• External panel mounting: surface mounting
• Card and key fob reader: yes
• Card and key fob frequency: 125 kHz
• Label/designation space: yes
• With cover: yes
• Protection degree: IPX5
• External panel material: aluminium
• External panel colour: black
• External panel width: 62 mm
• External panel height: 149 mm
• External panel depth: 41 mm
• Other external panel features: RFID - max. 100 users (key fobs included: 5 user, 2 admin)
