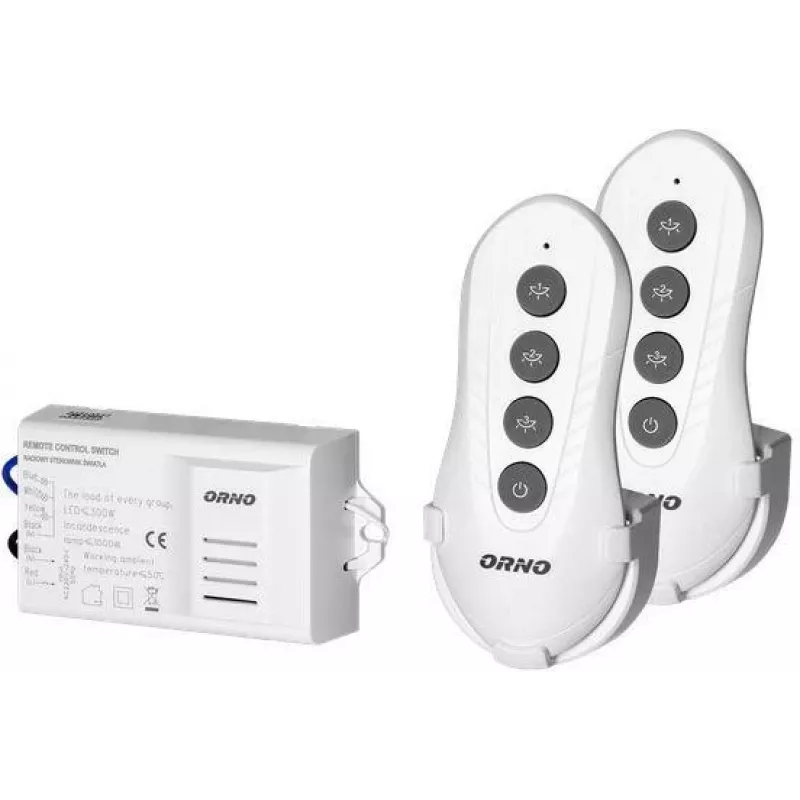

ORNO OR-GB-448 Set de control de luz inalámbrico con 2 mandos a distancia

The ORNO OR-GB-448 is a wireless lighting controller set designed for convenient ON/OFF control of various lighting types. This set includes two remote controls and a receiver, allowing you to operate lights from up to 30 meters away in open areas. Ideal for residential and commercial applications, it supports incandescent, halogen, LED, and fluorescent loads.

Advantages

Easy installation with surface-mounted receiver, no wiring needed for remote control. Reliable 433.92 MHz frequency ensures stable communication. The set includes two remotes for multi-point control, and the receiver handles up to 1000W resistive load or 300W LED/fluorescent load.

Suitable for

• Home lighting control
• Office and retail lighting
• Warehouse and industrial lighting
• Outdoor lighting (within IP20 rated environment)

Key specifications

• Product Type: Wireless Lighting Controller Set
• Control Type: ON/OFF
• Number of Channels: 1
• Operating Frequency: 433.92 MHz
• Wireless Range: Up to 30m (open area)
• Receiver Power Supply: 230V AC, 50Hz
• Max Resistive Load: 1000W
• Max LED/Fluorescent Load: 300W
• Number of Remotes Included: 2
• Remote Power Supply: 1x 12V DC (A23 battery) per remote
• Receiver Dimensions (L x W x H): 50 x 50 x 25 mm
• Remote Dimensions (L x W x H): 85 x 35 x 15 mm
• Protection Rating (Receiver): IP20
• Operating Temperature: -20°C to +50°C
• Mounting Type (Receiver): Surface Mounted / Junction Box

Recommendations

For optimal performance, ensure the receiver is installed in a dry location (IP20 rated). Use A23 batteries for the remotes. This controller is compatible with most dimmable and non-dimmable LED bulbs, but check the load specifications.
