OWC ThunderBay 8 Array de discos Sobremesa Negro 8 unidades HDD SSD

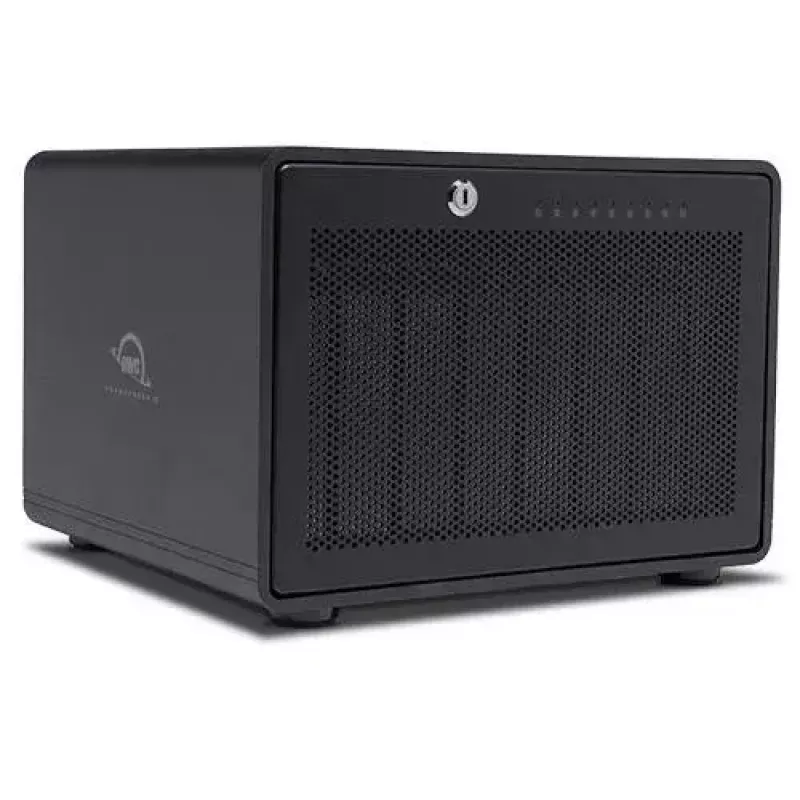

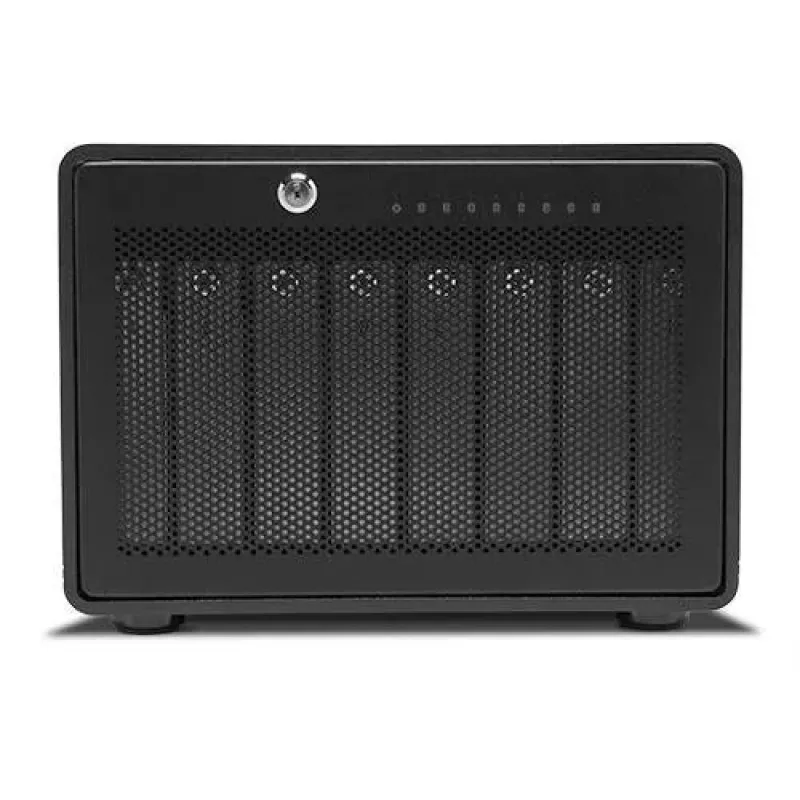

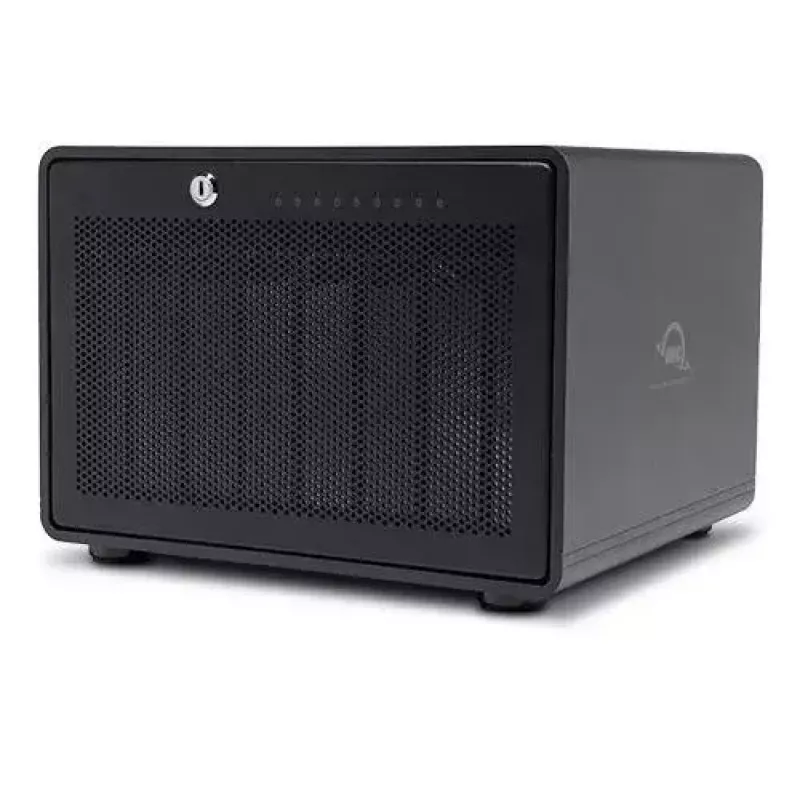

The OWC ThunderBay 8 is a desktop disk array that supports up to eight 2.5-inch or 3.5-inch HDDs and/or SSDs in any combination. Designed for professionals working with large media files, this compact black chassis provides high-capacity RAID storage with Thunderbolt 3 connectivity and an aluminum, field-tested enclosure. It supports hot-swappable drives mounted in alphabetically labeled trays and includes a locking front panel and rear security slot for physical protection.

Advantages

ThunderBay 8 delivers high sustained transfer rates via Thunderbolt 3 and the ability to RAID together up to eight drives, making it suitable for high-bandwidth workflows. The enclosure offers large maximum capacities by daisy-chaining up to six units, straightforward drive identification with labeled trays and thumb-screw retention, and additional physical security with a locking front panel and security slot. Optional SoftRAID software adds advanced RAID configuration, drive validation, verification and failure prediction.

Suitable for

• Photo and video editors working with RAW and 4K/large-format footage
• Post-production studios requiring high-bandwidth RAID storage
• Users needing a compact desktop data center for large archives
• Workflows that benefit from hot-swappable drive pools

Key specifications

• Supported drives: up to 8 x 2.5" or 3.5" HDD/SSD (any mix)
• Interface: Thunderbolt 3 host connection; internal drives: Serial ATA
• Chassis: aluminum enclosure, black finish

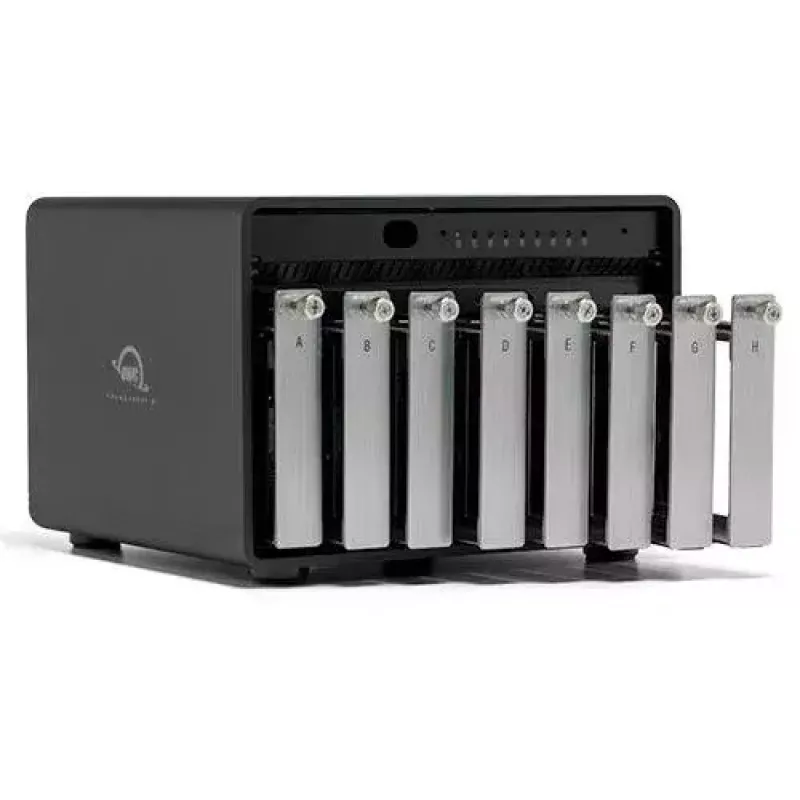

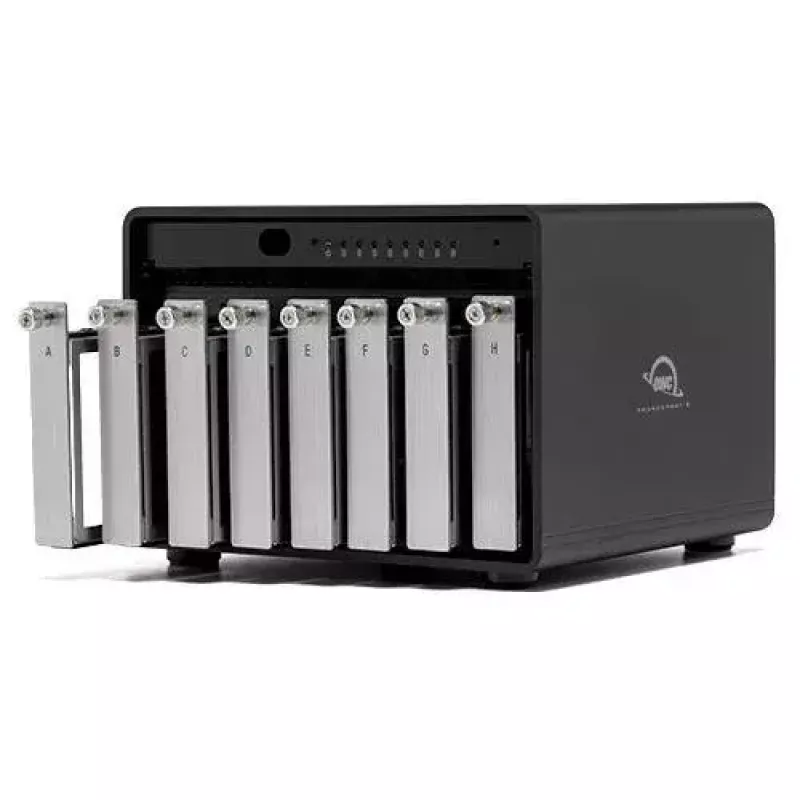

• Drive trays: alphabetically labeled, hot-swappable, secured by thumb screws

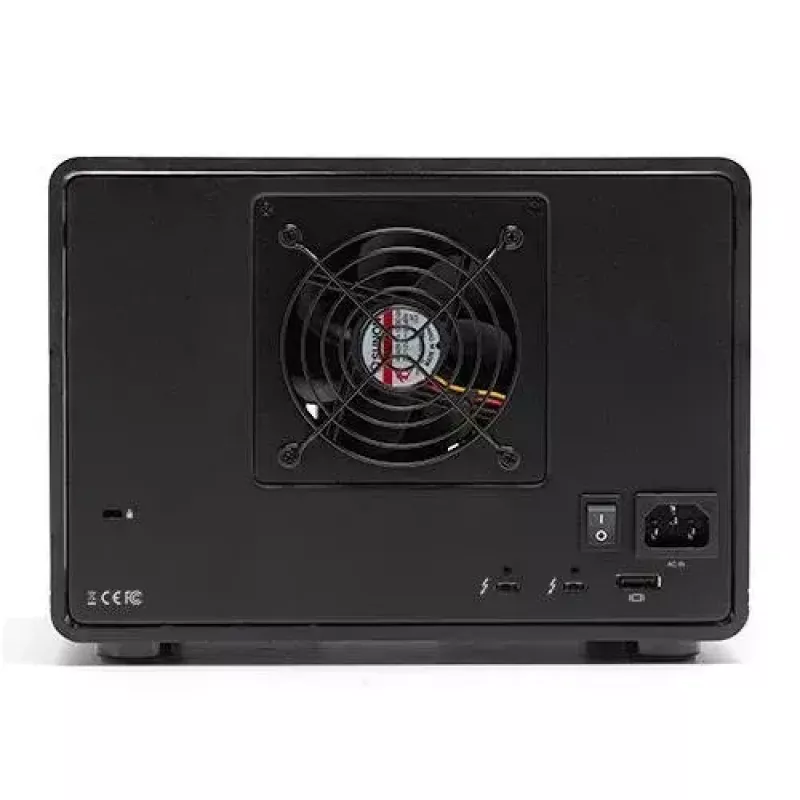

• Security: front-panel lock and rear security slot
• Dimensions (W×D×H): 260 × 240 × 180 mm
• Weight: 7.3 kg
• MPN: OWCTB38JBKIT0 • EAN: 0810586037136

How to use

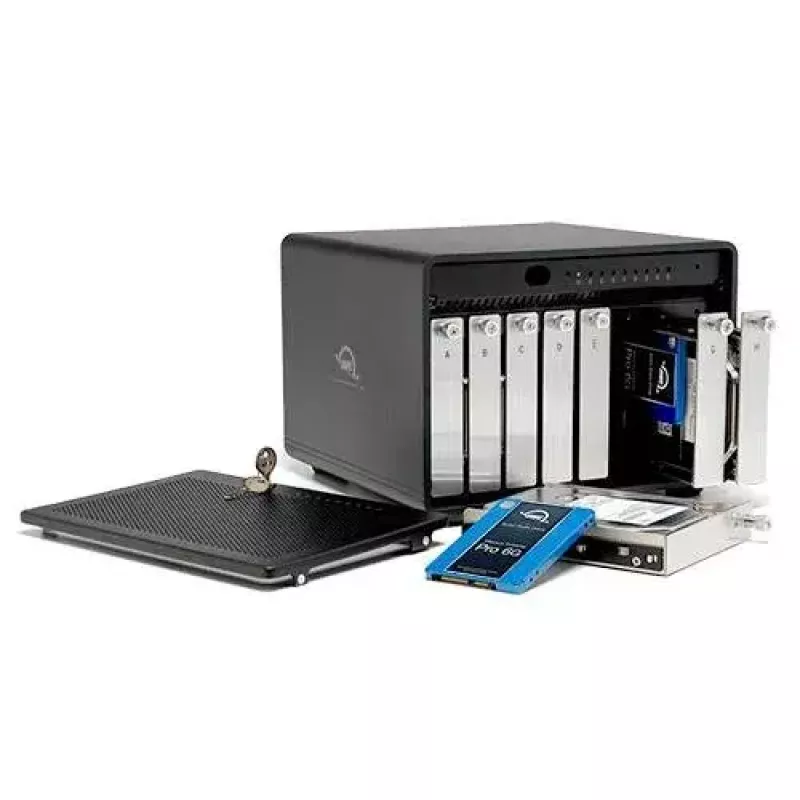

Install 2.5-inch or 3.5-inch SATA drives into the labeled trays and secure each tray with its thumb screw. Slide trays into the corresponding bay slots and connect the ThunderBay 8 to your Mac or PC using a Thunderbolt 3 cable. Configure the drives as desired using your operating system disk utility or optional SoftRAID software to create RAID volumes. For extended setups, daisy-chain additional ThunderBay 8 units using the extra Thunderbolt 3 port and configure as needed.

Recommendations

If using the unit for professional media projects, consider including SoftRAID for enhanced RAID management and monitoring. Use the locking front panel and a Kensington-style cable lock on the rear security slot when installing in shared or public spaces. For repeated hot-swapping workflows, keep additional OWC drive trays available to organize drive pools efficiently.
