P F PF sensor inductivo NBB4-12GM30-E3 326161-0019

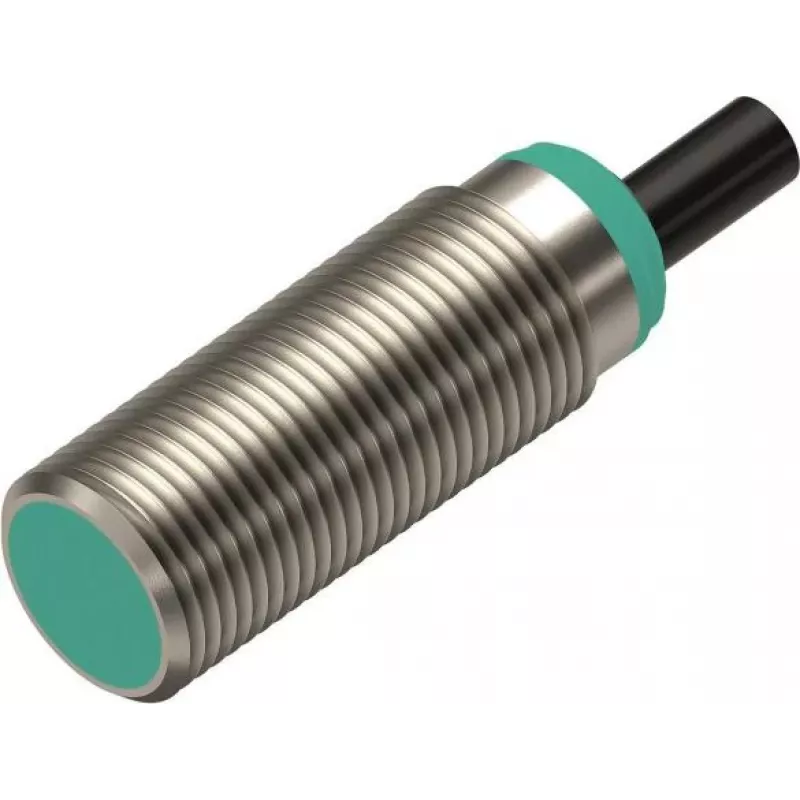

The P F PF Inductive Sensor NBB4-12GM30-E3 (326161-0019) is a high-quality inductive proximity sensor designed for reliable non-contact detection of metallic objects. With a sensing distance of 4 mm and a robust cylindrical threaded barrel housing, this sensor is ideal for industrial automation applications.

Advantages

This sensor offers precise detection with a repeat accuracy of ≤1% and a hysteresis of typ. 5%. Its PNP normally open output and M12 connector ensure easy integration into control systems. The nickel-plated brass housing and IP67 protection make it suitable for harsh environments.

Suitable for

• Position detection in machinery and equipment
• Automation and control systems
• Conveyor and material handling systems

Key specifications

• Sensor Type: Inductive Proximity Sensor
• Sensing Distance: 4 mm
• Installation Type: Non-flush
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10 - 30 V DC
• Switching Frequency: 0 - 1000 Hz
• Connection Type: M12 Connector, 3-pin
• Housing Material: Brass, nickel-plated
• Sensing Face Material: PBT
• Degree of Protection: IP67
• Operating Temperature: -25 ... 70 °C
• Output Current: Max. 200 mA
• Short-circuit Protection: Pulsed
• Reverse Polarity Protection: Yes
• Switching State Indicator: Yellow LED
• Housing Style: Cylindrical, Threaded Barrel
• Thread Size: M12 x 1
• Standard Compliance: EN 60947-5-2

Recommendations

For optimal performance, ensure proper wiring and mounting according to the manufacturer's guidelines. This sensor is a reliable choice for demanding industrial environments.
