Panel de control inteligente Sonoff NSPanel Pro – Wi-Fi, Bluetooth, Zigbee, interfaz de casa inteligente de pared

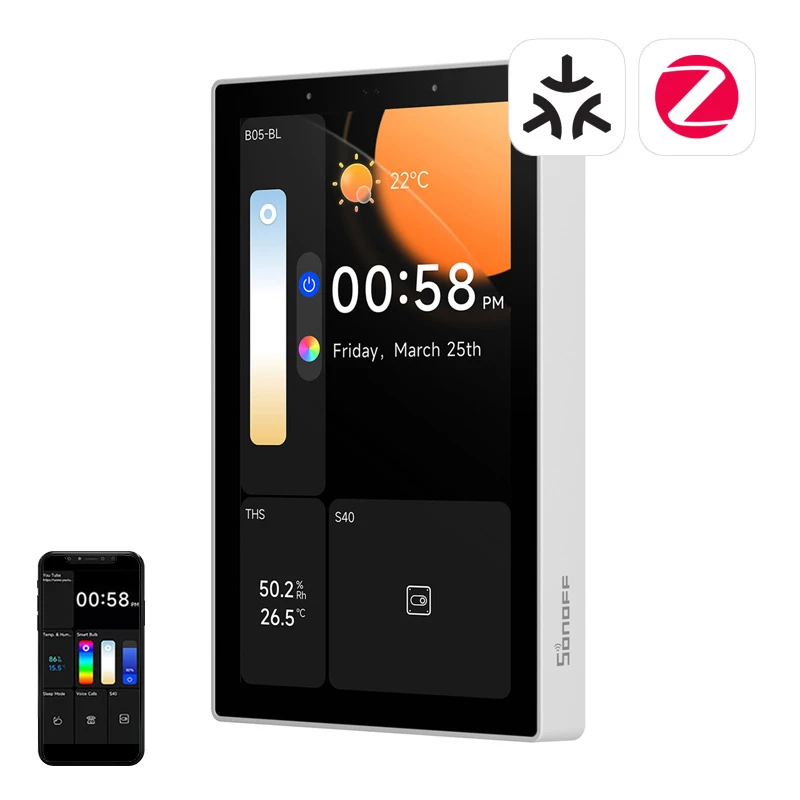

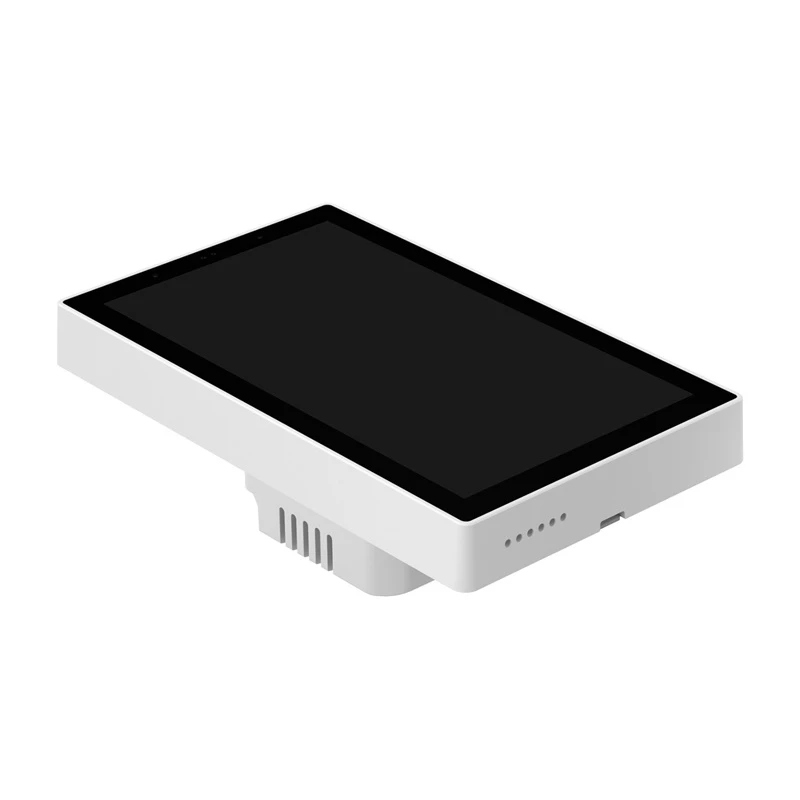

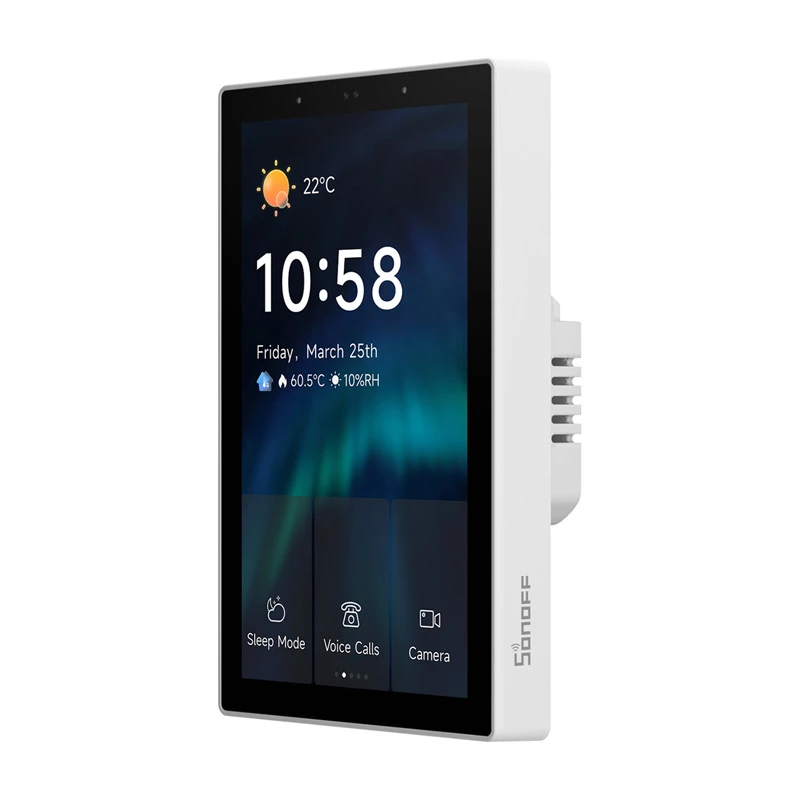

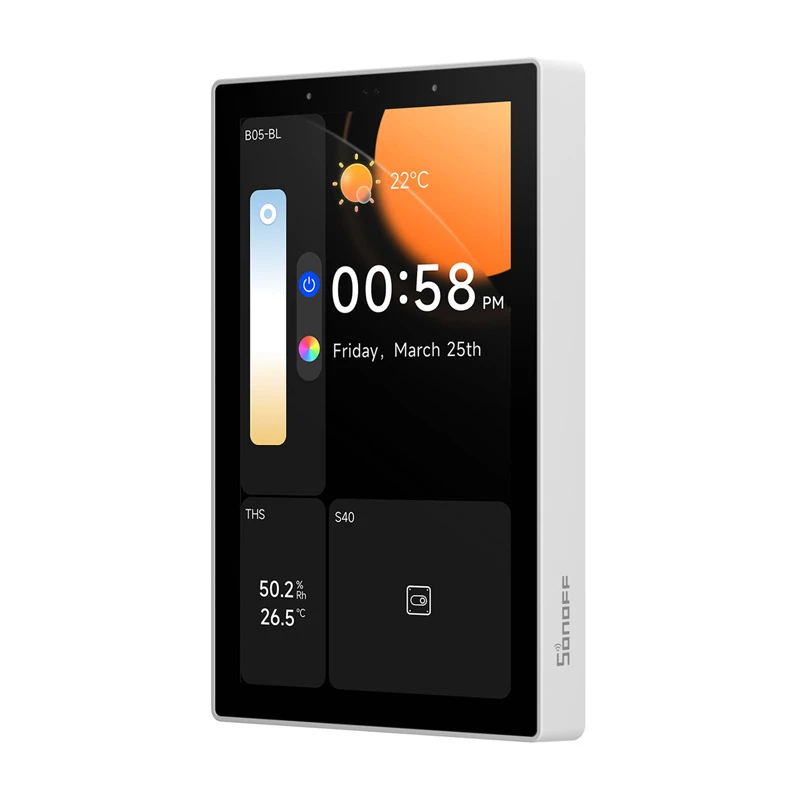

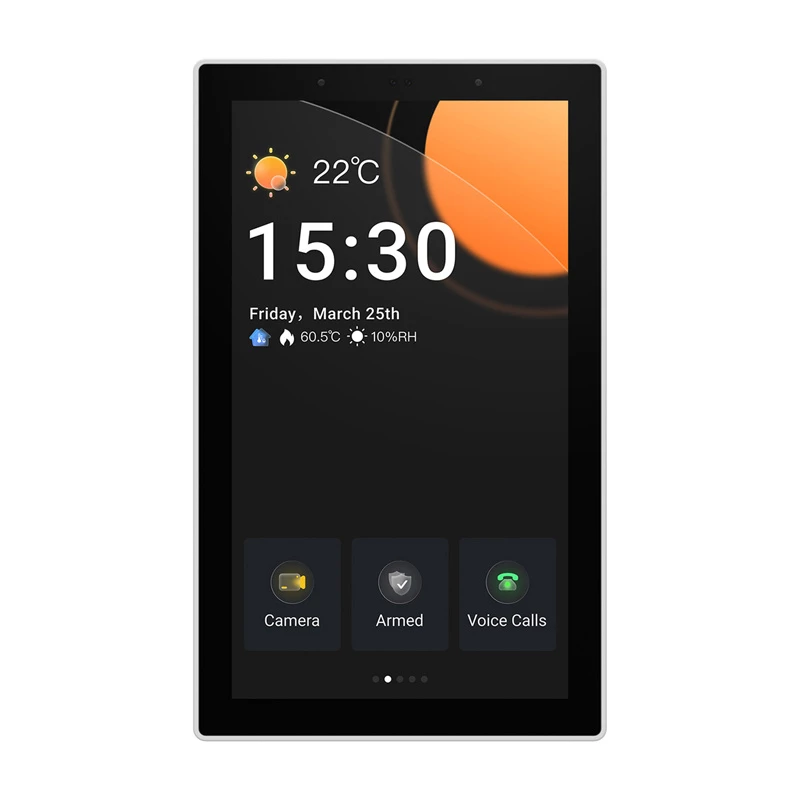

SONOFF NSPanel Pro 120 is a wall-mounted smart control panel that combines Wi‑Fi, Bluetooth, Zigbee 3.0 and Matter to centralize control of home automation devices. The panel features a 4.7" TFT LCD touchscreen with 750 x 1334 px resolution, an intuitive interface and a built‑in Zigbee hub and Matter controller, enabling compatibility with devices from different manufacturers. It supports camera viewing, energy monitoring and configurable security modes, and can act as an intercom using the integrated microphone and speaker.

Advantages

The NSPanel Pro 120 provides multi-protocol connectivity (Wi‑Fi, Bluetooth, Zigbee and Matter) for broad device compatibility and flexible ecosystem building. A built‑in Zigbee 3.0 hub and the option to switch to Zigbee router mode improve network range and stability. The touchscreen supports 16.7 million colors and automatic brightness adjustment via an ICC light sensor. Powerful hardware—quad‑core ARM Cortex‑A35 CPU, 2 GB DDR3 RAM and 8 GB eMMC—ensures smooth operation and the ability to manage multiple devices simultaneously. Additional features include camera integration, two‑way voice calls, energy consumption monitoring and web access.

Suitable for

• Centralized control of smart lights, plugs and switches
• Integration of Zigbee and Matter devices from multiple manufacturers
• Room temperature monitoring and HVAC automation with compatible sensors
• Home security monitoring with configurable alarm modes and camera viewing
• Energy consumption monitoring when paired with compatible power meters

Key specifications

• Manufacturer: SONOFF
• Model: NSPanel120PW
• Screen size: 4.7" TFT LCD, 750 x 1334 px
• Processor: Quad‑core ARM Cortex‑A35
• Memory: 2 GB DDR3 RAM, 8 GB eMMC 5.1 internal storage
• Connectivity: Wi‑Fi IEEE 802.11 b/g/n 2.4 GHz, Bluetooth, Zigbee 3.0, Matter support
• Power supply: 100–240 V~ 50/60 Hz, 0.15 A max.
• Operating temperature: 0 °C to 40 °C
• Operating humidity: 5% to 90% RH, non‑condensing
• Housing materials: PC V0 + CRS + tempered glass
• Dimensions: 122.5 x 74.5 x 39.5 mm
• Certifications: CE / FCC / ISED / RoHS

How to use

Mount the NSPanel Pro 120 on a compatible wall junction box and connect it to mains power according to local electrical regulations. Use the touchscreen interface or the eWeLink app to add and manage devices: pair Zigbee devices via the built‑in hub, add Matter or Wi‑Fi devices through the supported workflows, and configure scenes, schedules and security modes. Connect compatible sensors (for example SNZB‑02P or TH Elite) and power meters (POW Elite, POW Origin, S40, S31, DUALR3) to enable temperature control and energy monitoring. Use the panel’s web browser for quick access to web services and the microphone/speaker for two‑way calls and intercom functions.

Recommendations

For reliable Zigbee network performance, position the panel centrally relative to Zigbee devices or enable Zigbee router mode to extend coverage. Keep firmware and the eWeLink app up to date to maintain Matter and third‑party integration compatibility. Install compatible sensors and power meters where accurate measurement is needed (room level for temperature sensors, mains or device level for energy meters).
