Panel de gestión de cables Digitus DN-97669

Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
Panel de gestión de cables Digitus DN-97669
24,72 €
PDF
PDF

Envíos y devoluciones

Entrega estimada martes, 1 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

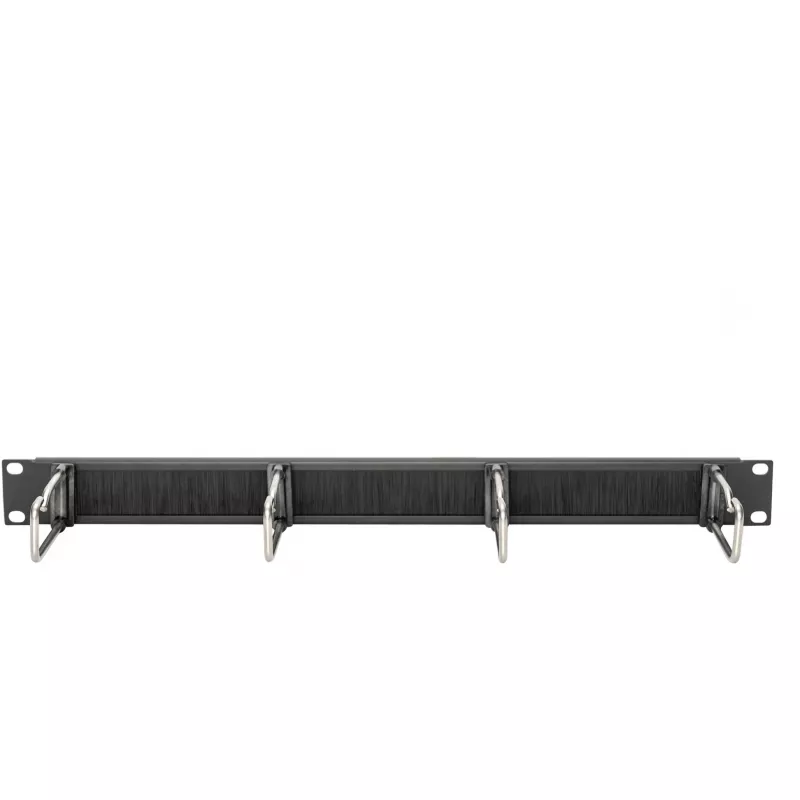

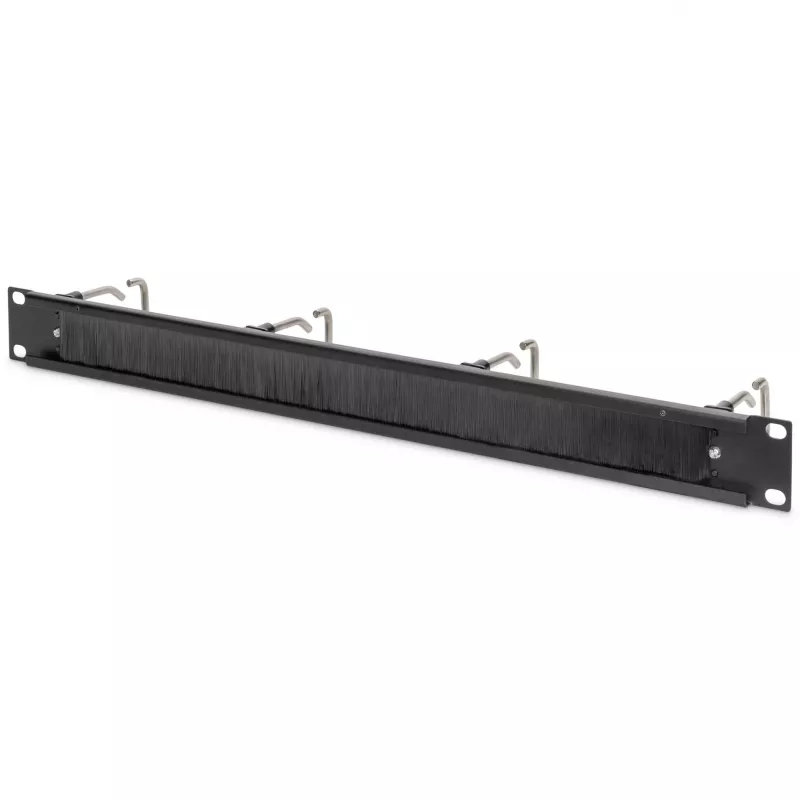

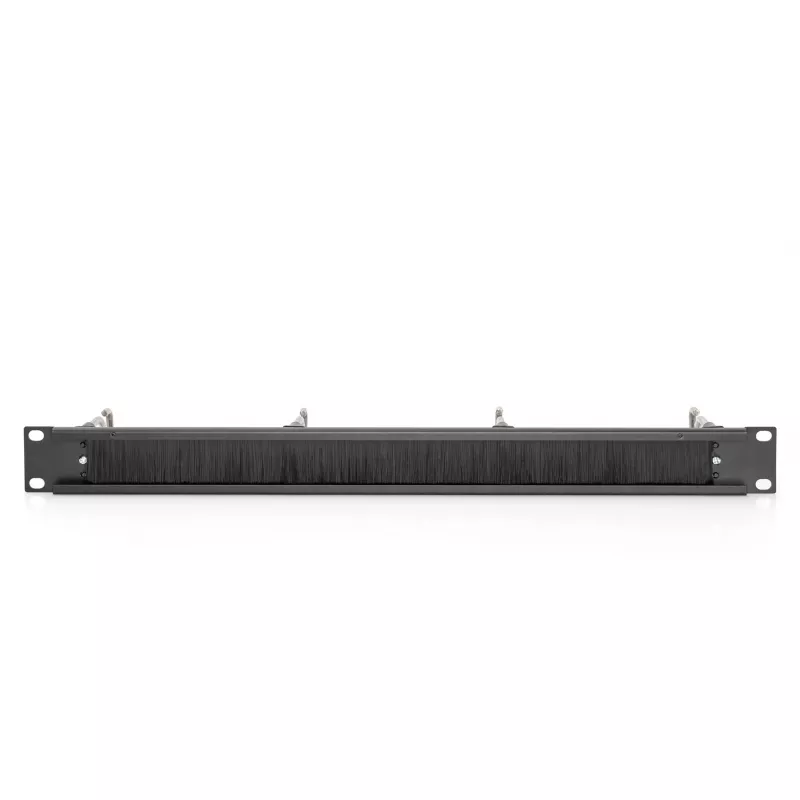

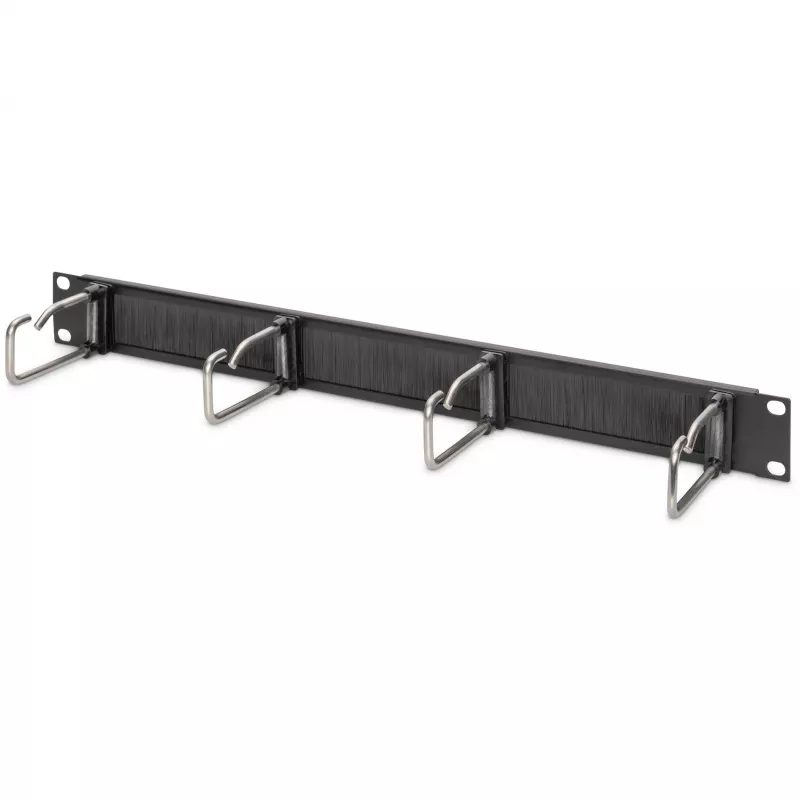

The DIGITUS Cable Management Panel DN-97669 is a 1U, 19" panel designed to keep cables organized in server and network cabinets. The panel features a sturdy steel sheet construction with four detachable steel brackets and a brush strip between the brackets to route cables into the cabinet while maintaining a neat appearance. The product is powder coated and available in light gray (RAL 7035) or jet black (RAL 9005); the supplied unit is black.

Advantages

The steel construction and powder coating ensure durability and resistance to wear. Four robust, removable steel brackets provide secure support for larger cable bundles, while the integrated brush strip prevents dust ingress and allows cables to pass through cleanly. The 1U height and 75 mm depth make the panel compatible with standard 482.6 mm (19") cabinets without occupying excessive rack space.

Suitable for

  • Organizing network and server cables in 19" racks
  • Managing larger cable bundles in data centers and server rooms
  • Installing cable entry/exit points in network cabinets
  • Retrofit or new cabinet installations requiring 1U cable management

Key specifications

  • Model: DIGITUS DN-97669
  • Rack compatibility: 482.6 mm (19")
  • Height: 1U
  • Depth: 75 mm
  • Material: Steel sheet with powder coating
  • Colour: Black (RAL 9005); also available in light gray (RAL 7035)
  • Features: 4 steel brackets (detachable), brush management panel between brackets

How to use

Mount the panel into a free 1U position in a 19" cabinet using standard rack screws. Route cables through the brush strip openings and secure bundles with appropriate cable ties or fastening accessories to the steel brackets as needed. If required for your setup, dismantle individual steel brackets to adapt the panel layout to different cable routing scenarios, then reattach them securely.

Recommendations

Use appropriate fastening (cable ties, Velcro straps) and avoid overloading brackets beyond the capacity of the cabinet’s mounting and the bracket attachment points. Regularly inspect the brush strip and brackets for accumulated dust or wear and clean as part of routine cabinet maintenance.
Aspectos destacados
  • Organizing network and server cables in 19" racks
  • Managing larger cable bundles in data centers and server rooms
  • Installing cable entry/exit points in network cabinets
  • Retrofit or new cabinet installations requiring 1U cable management
  • Model: DIGITUS DN-97669
  • Rack compatibility: 482.6 mm (19")
  • Height: 1U
  • Depth: 75 mm
  • Material: Steel sheet with powder coating
  • Colour: Black (RAL 9005); also available in light gray (RAL 7035)
  • Features: 4 steel brackets (detachable), brush management panel between brackets

Especificaciones

Especificaciones
Altura
40 mm
Altura de la caja exterior
320 mm
Altura del embalaje
60 mm
Ancho
482.6 mm
Ancho de la caja exterior
530 mm
Ancho del embalaje
510 mm
Cantidad por paquete
1 pc(s)
Capacidad del rack
1U
Código del Sistema Armonizado (HS)
85389099
Color del producto
Negro
Forma del orificio de montaje
Ovalado
Longitud de la caja exterior
450 mm
Material de la carcasa
Acero
País de origen
China
Peso
0.43 kg
Peso bruto de la caja exterior
12500 g
Peso del embalaje
500 g
Productos por caja exterior
25 pc(s)
Profundidad
75 mm
Profundidad del embalaje
100 mm
Tamaño (pulgadas)
19 "
Tipo
Panel de gestión de cables
Volumen de la caja exterior
76320 cm³
