Panel de parcheo 1U TRENDNET TC-P16C6AS

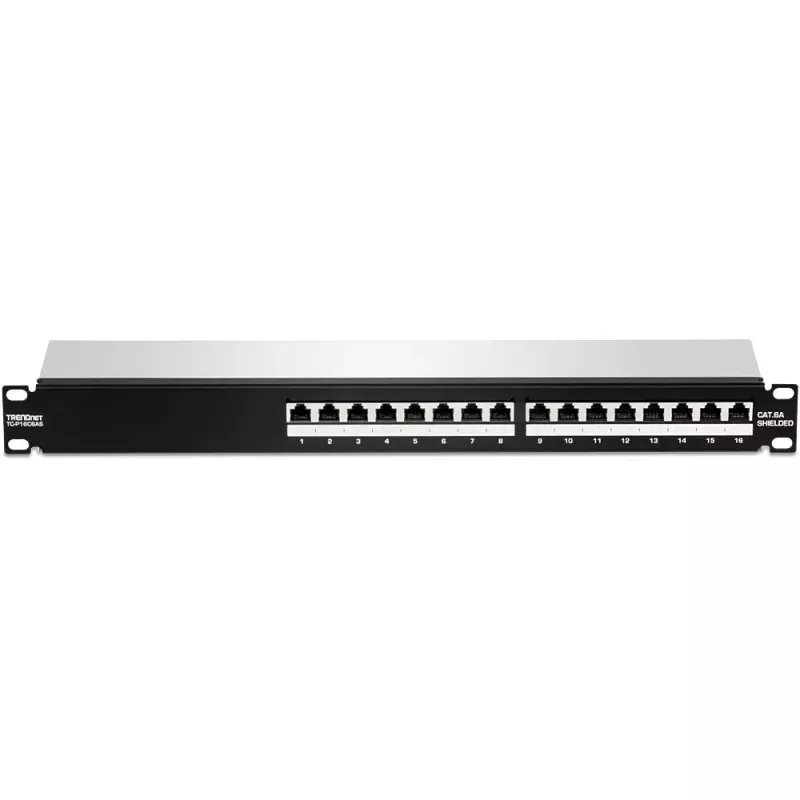

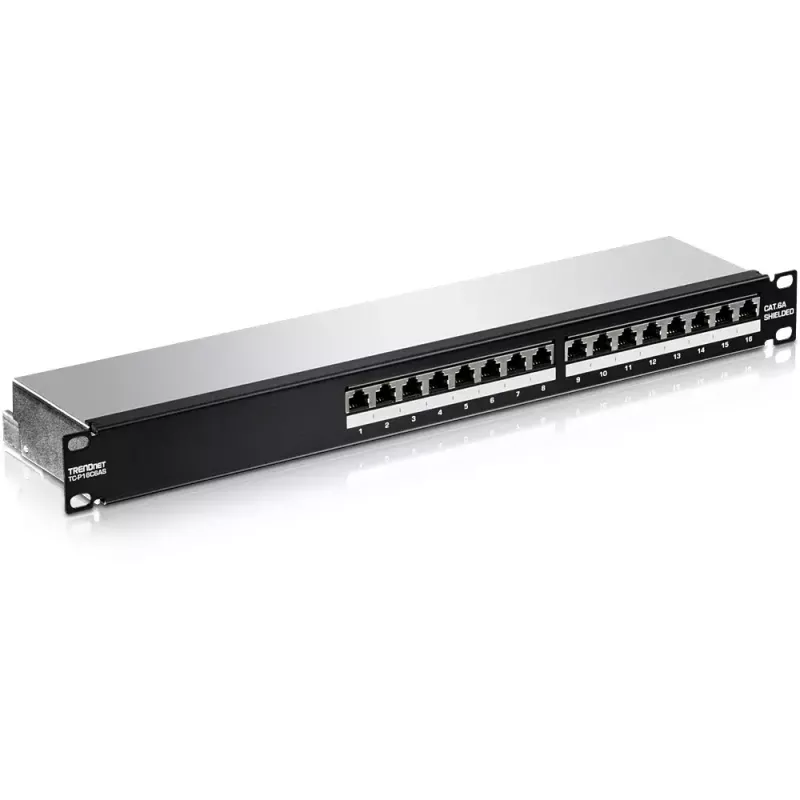

TRENDnet TC-P16C6AS is a 16-port, 1U rackmount patch panel designed for Cat6A shielded cabling and copper Ethernet networks. The panel provides a compact and durable solution for organizing and terminating Ethernet runs in server racks and communication cabinets while supporting gigabit and 10G copper Ethernet applications.

Advantages

The shielded Cat6A design reduces electromagnetic interference (EMI) and crosstalk to help maintain data integrity and stable connections. This 19" 1U metal housing is 10G-ready and compatible with Cat5e, Cat6 and Cat6A cabling. Color-coded labels support both T568A and T568B wiring schemes, and the panel uses 110 IDC type terminal blocks for reliable terminations. Standards compliance includes ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801; rack compatibility follows ANSI/EIA/TIA 310-D and EN50173-1.

Suitable for

• Data centers and server racks requiring organized copper cabling
• Enterprise and small business LANs with 1U rack space
• 10G and gigabit Ethernet copper deployments using Cat6A cabling
• Telecommunications rooms and network closets

Key specifications

• Model: TC-P16C6AS
• Ports: 16
• Form factor: 19" 1U rackmount
• Cabling: Cat6A shielded (backwards compatible with Cat6, Cat5e)

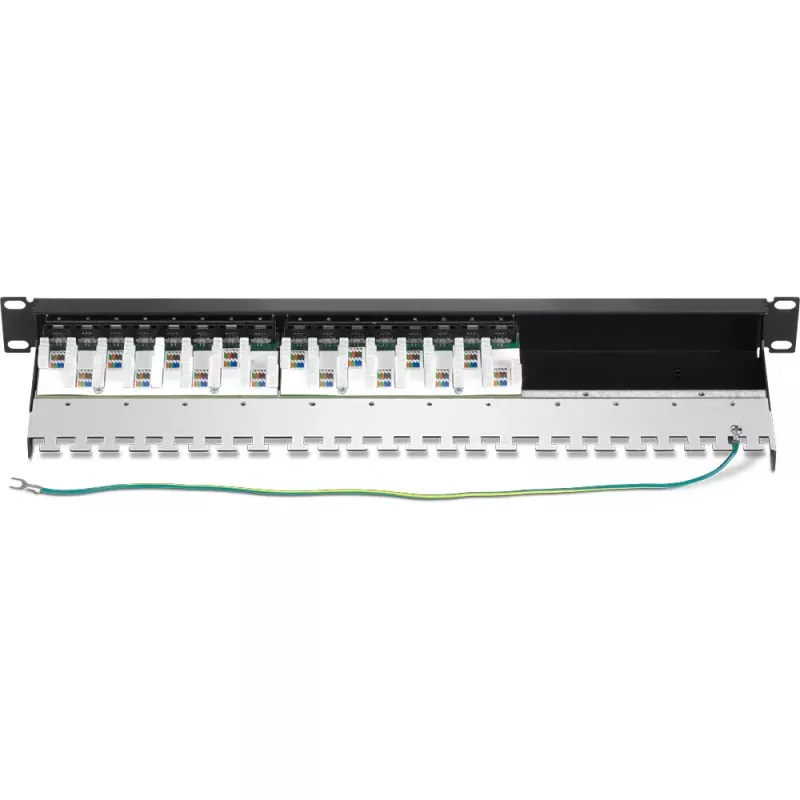

• Termination: 110 IDC type terminal blocks (use 110 or Krone tool)
• Connector orientation: 90° angle type
• Material/Color: Metal housing, black
• Operating temperature: -25° to 50° C (-13° to 122° F)
• Standards: ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, ANSI/EIA/TIA 310-D, EN50173-1

How to use

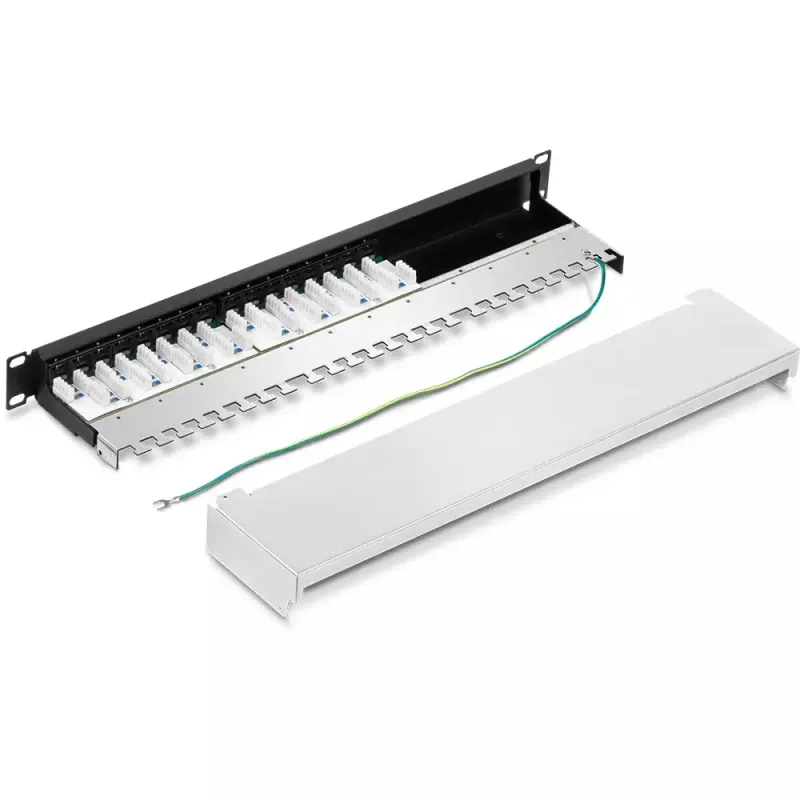

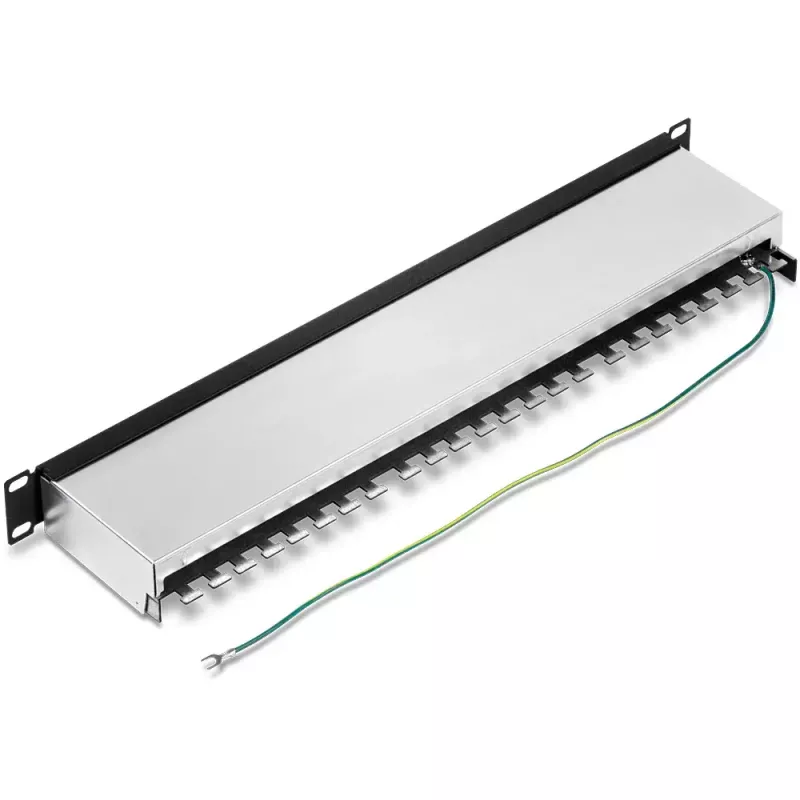

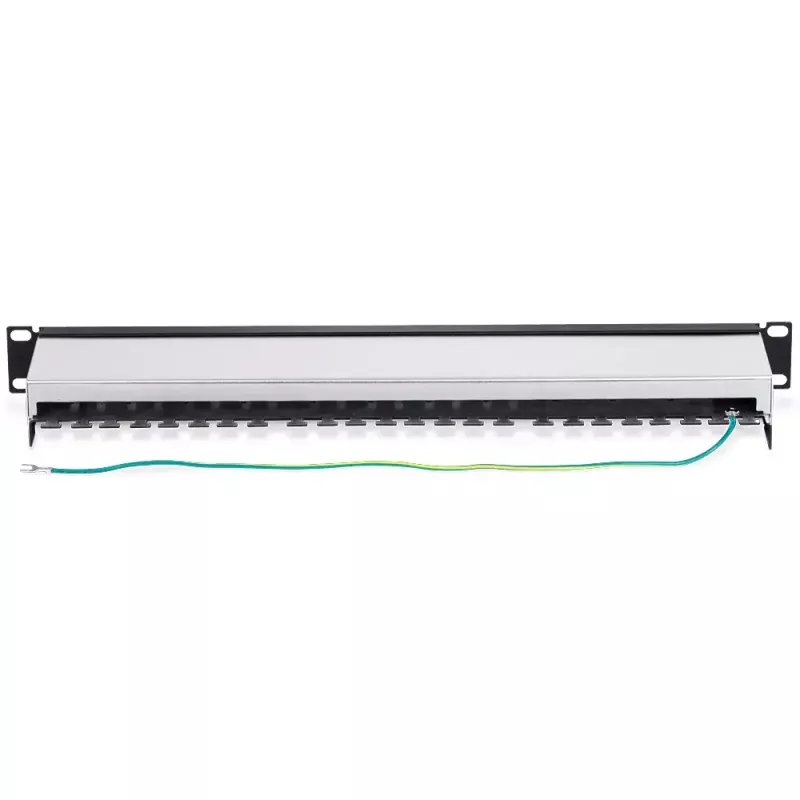

Mount the patch panel in a 19" rack occupying 1U of space. Terminate each Ethernet cable onto the 110 IDC terminal blocks using an appropriate 110 or Krone type punch-down tool; TRENDnet's TC-PDT punch down tool is compatible and sold separately. Use the color-coded labels to follow either T568A or T568B wiring schemes for consistent terminations. Close the integrated cable management cover plate to separate and secure cables and reduce clutter.

Recommendations

For optimal performance, use with shielded Cat6A cabling and maintain proper grounding of the shielded system. Verify wiring scheme consistency across the network and use a certified punch-down tool for reliable terminations. Keep operating environment within the specified temperature range.
