Panel de parcheo de fibra óptica DeLOCK 10" 12 puertos SC simplex verde 1U negro

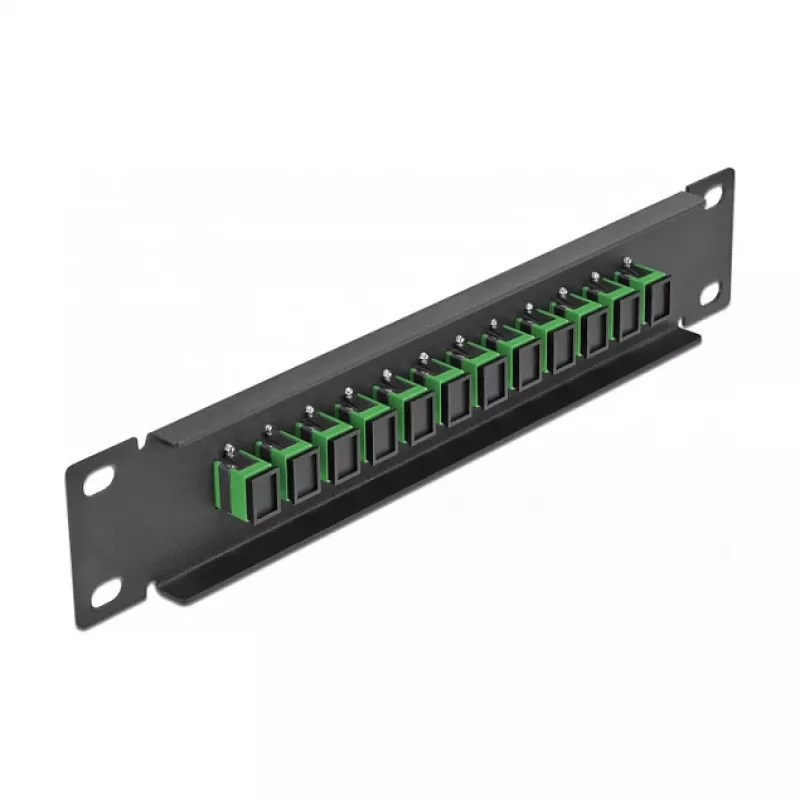

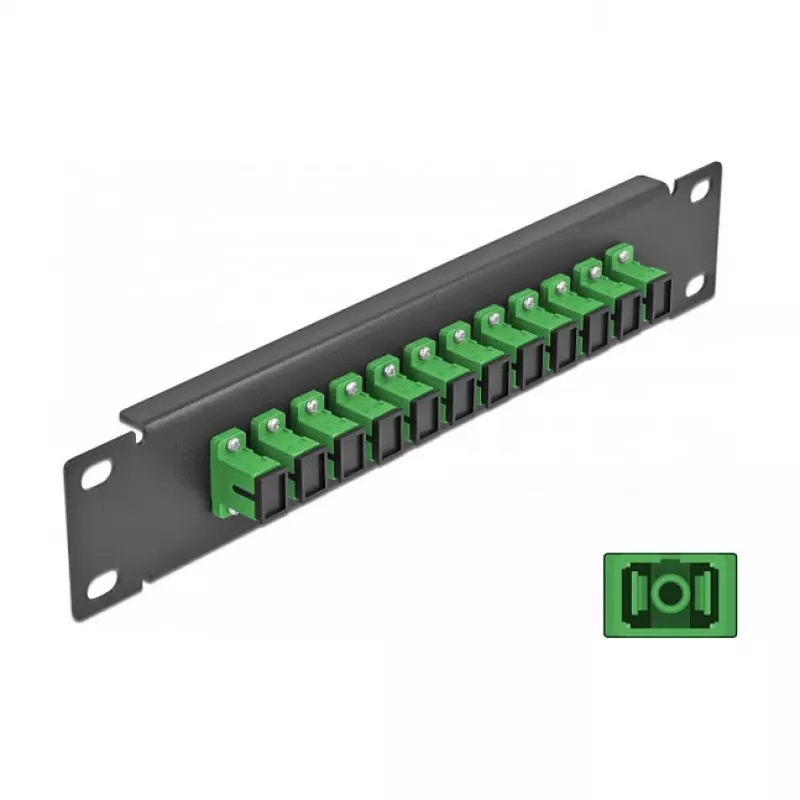

This Delock 10" fiber optic patch panel provides 12 SC Simplex fiber couplers in a 1U rack-mountable metal housing. It is intended for installation in a 10" network cabinet and enables simple connection of fiber optic male connectors via the SC Simplex couplers. The panel is finished in black with green ports and has compact dimensions suitable for organized fiber management.

Advantages

The patch panel offers twelve SC Simplex ports for straightforward fiber connections, a robust metal construction for rack use, and a compact 1U design that saves space in a 10" cabinet. Color-coded ports (green) help identify fiber lines and simplify installation and maintenance.

Suitable for

• Rack-mounted fiber distribution in 10" network cabinets
• Organizing and managing SC Simplex fiber connections
• Small to medium data closets, telecommunication cabinets, and patching panels

Key specifications

• Brand: DELOCK
• Model / MPN: 66761
• EAN: 4043619667611
• Ports quantity: 12 SC Simplex
• Form factor: 1U, 10" rack-mountable
• Material: Metal housing
• Colour: Black housing with green ports
• Dimensions (approx.): 44 mm (W) x 10 mm (H) x 254 mm (D)

How to use

Mount the patch panel into a 10" network cabinet using suitable rack screws. Insert SC Simplex male fiber connectors into the corresponding SC Simplex couplers on the front of the panel until they click into place. Route fiber cables to the rear of the panel and secure them with appropriate cable management accessories. To disconnect, press the connector latch and gently pull the connector out of the coupler.

Recommendations

Install and handle fiber connectors in a clean environment, avoid bending fibers beyond their minimum bend radius, and use dust caps when ports are not in use. Verify connector cleanliness before mating to prevent signal loss or damage.
