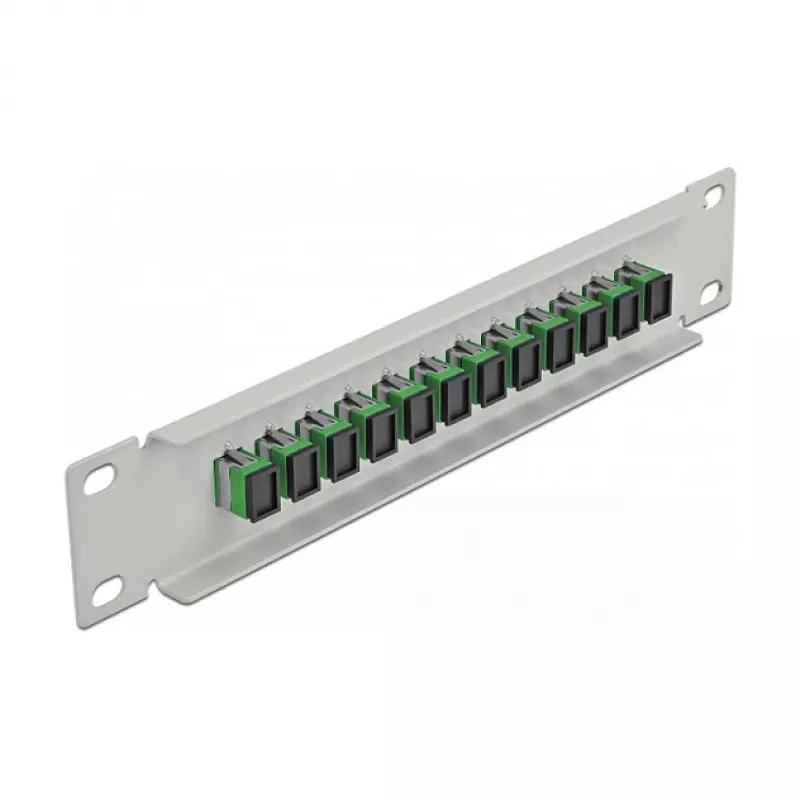

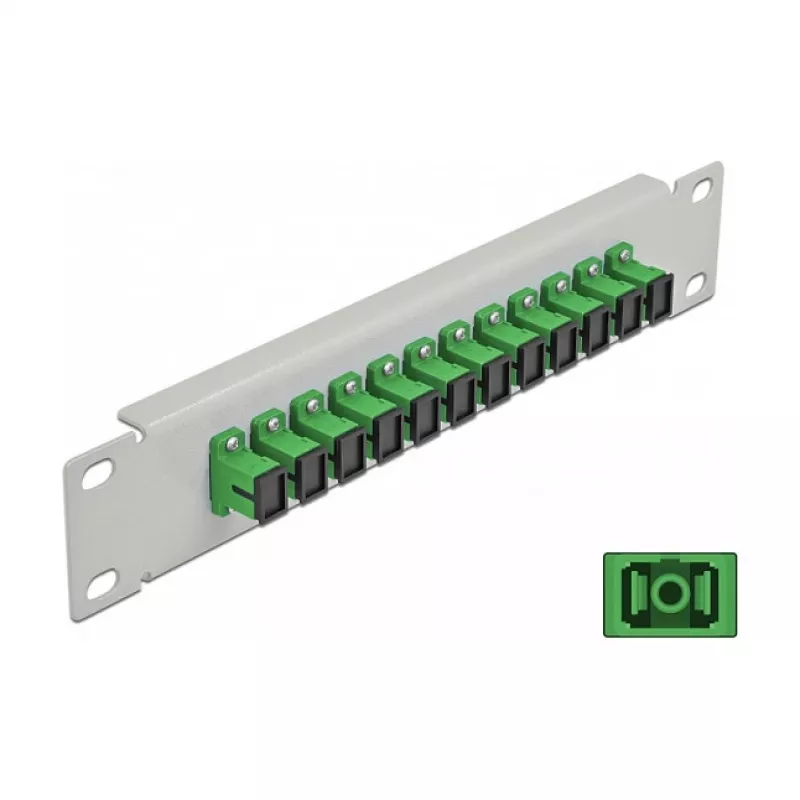

Panel de parcheo de fibra óptica DeLOCK 10 pulgadas 12 puertos SC simplex verde 1HE gris

The DeLOCK 10" 12 Port SC Simplex patch panel provides a compact and robust solution for organizing fiber optic connections in a 1U rack space. It is fitted with twelve SC Simplex couplers that allow easy mating of fiber optic male connectors and is intended for installation in a 10" network cabinet. The housing is made of metal and combines grey and green colouring for port identification and durable operation.

Advantages

The panel offers 12 SC Simplex ports in a 1U form factor to save rack space while keeping fiber connections accessible and ordered. Metal construction ensures mechanical stability and long service life. SC Simplex couplers simplify connection and disconnection of fiber optic male connectors and support standard patching workflows.

Suitable for

• Data center and server room fiber distribution
• Telecommunications racks and network cabinets (10")
• Patch panels and fiber management in LAN/WAN installations
• Environments requiring a compact 1U fiber termination solution

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66782
• EAN: 4043619667826
• Ports: 12 × SC Simplex
• Rack size: 10" / 1U
• Material: Metal
• Colour: Green (ports) and Grey (housing)
• Dimensions (approx.): 44 mm × 10 mm × 254 mm (W × H × D)

How to use

Mount the patch panel in a 10" network cabinet using standard rack screws to occupy one 1U slot. Route fiber cables to the rear of the panel and terminate them with SC simplex male connectors. Insert the male connectors into the front SC Simplex couplers until they click into place. For disconnection, gently pull back the connector boot and withdraw the connector from the coupler. Keep fiber bends within recommended minimum bend radii to avoid signal loss.

Recommendations

For reliable performance, install the panel in a clean, dust-free cabinet, label ports for easy identification, and use appropriate strain relief and cable management to protect connectors and maintain proper bend radii.
