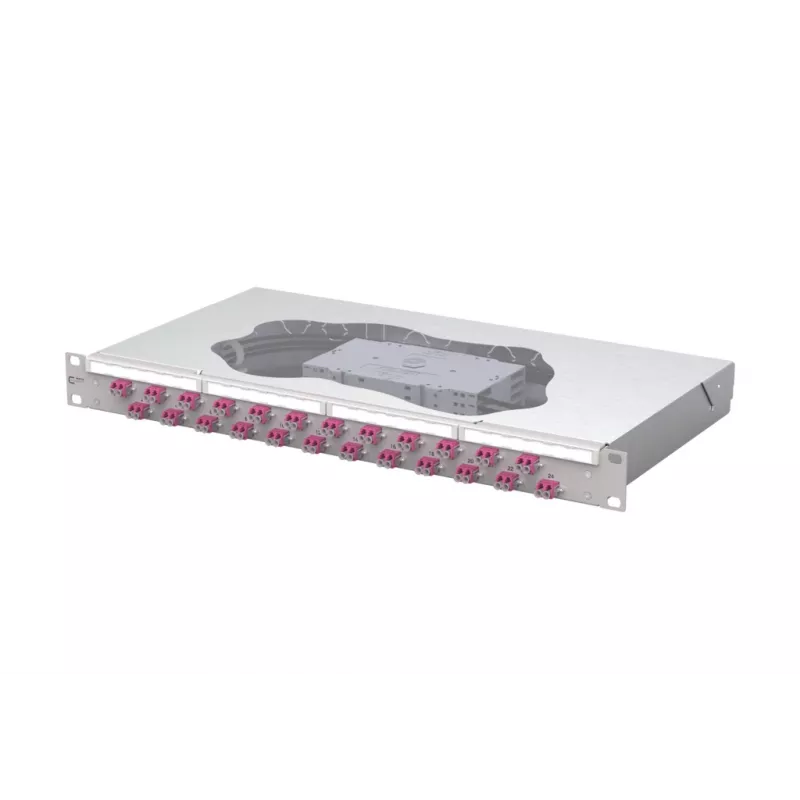

Panel de parcheo de fibra óptica METZ CONNECT 24 puertos LC-dúplex OM4 con empalmes, 1U 19 pulgadas montaje en rack, gris claro 1504577524-E

Managing high-density fiber optic connections in data centers and telecommunication rooms often becomes a challenge when space is limited and performance cannot be compromised. The METZ CONNECT 1504577524-E patch panel solves this by providing a compact 1U solution that accommodates 24 LC-Duplex ports with OM4 multimode fiber support, ensuring reliable, low-loss connections in a tidy, rack-mountable unit.

Who is it for

This patch panel is ideal for network administrators, data center managers, and telecom engineers who need to organize and splice fiber optic cables efficiently. It suits environments where space is at a premium but high port density and performance are required, such as enterprise LANs, server rooms, and colocation facilities.

Main features

• 24 LC-Duplex ports pre-loaded with ceramic sleeve adapters for consistent optical performance.
• Supports OM4 multimode fiber, enabling high-speed data transmission up to 100 Gbps over short distances.
• Integrated splice tray with capacity for 24 splice protectors (crimp or heat shrink).
• 1U 19-inch rack mount design with fixed front panel and numbered ports for easy identification.
• Robust steel sheet construction with light grey (RAL 7035) powder coating for durability.
• Rear cable entry with multiple knockouts (e.g., 2x M20/M25) for flexible cable management.
• Adapter insertion loss less than 0.2 dB, ensuring minimal signal degradation.
• Operating temperature range from -10°C to +60°C, suitable for various environments.

Specifications

• Product type: Fiber optic patch panel
• Rack units: 1U
• Mounting standard: 19-inch rack mount
• Number of ports: 24
• Connector type (front): LC-Duplex
• Fiber type: Multimode OM4
• Adapter type: Ceramic sleeve
• Splice tray: Integrated
• Splice holder capacity: 24 splice protectors
• Material: Steel sheet, powder-coated
• Colour: Light grey (RAL 7035)
• Cable entry: Rear, multiple knockouts
• Pre-assembled: Yes, with adapters and splice tray
• Front panel: Fixed, with numbered ports
• Protection class: IP20
• Operating temperature: -10°C to +60°C
• Optical loss (adapter): < 0.2 dB

Tips

For best results, use OM4-rated fiber optic cables and ensure proper bend radius management when routing cables into the panel. Label each port according to your network documentation to simplify troubleshooting and maintenance. The panel's light grey finish blends well with standard rack equipment, keeping your installation looking professional.
