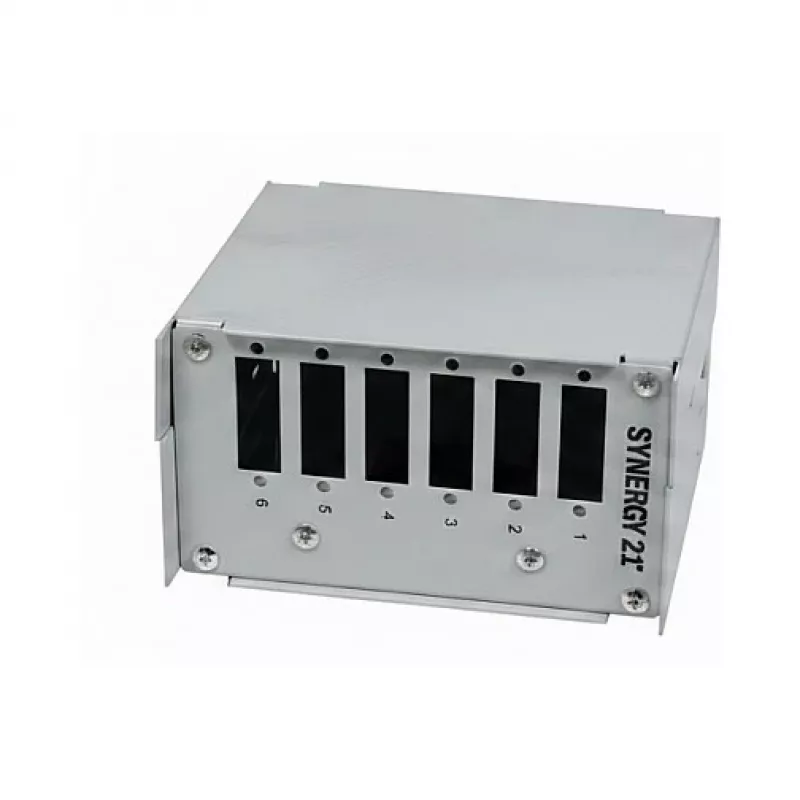

Panel de parcheo de fibra óptica Synergy21 para carril DIN, 6x puertos SC-Duplex/LC-Quad, vacío, gris claro (RAL 7035)

The Synergy21 S215688V2 fiber optic patch panel is a compact and robust solution for mounting on DIN rails (35mm) in industrial and indoor environments. Designed for 6 SC-Duplex or LC-Quad adapters (not included), it provides flexible fiber management for both multimode and singlemode applications. The panel features a light grey (RAL 7035) sheet steel housing, IP20 protection, and includes a splice tray for up to 12 splices. With two M20/M25 cable gland openings and compliance with DIN EN 50022, this patch panel is ideal for structured cabling in control cabinets and network distribution points.

Advantages

Space-saving DIN rail mounting simplifies installation in existing cabinets. The empty adapter design allows customization with your preferred connector type. Robust sheet steel construction ensures durability in demanding environments. Integrated splice tray keeps fiber splices organized and protected.

Suitable for

• Industrial fiber optic networks
• Control cabinet cabling
• Data center patching
• Telecommunications distribution

Key specifications

• Product Type: Fiber Optic Patch Panel
• Mounting: DIN Rail (35mm) per DIN EN 50022
• Ports: 6 (empty, for SC-Duplex or LC-Quad adapters)
• Color: Light Grey (RAL 7035)
• Material: Sheet Steel
• IP Rating: IP20
• Cable Entry: 2x M20/M25 gland openings
• Splice Tray: Included, capacity 12 splices
• Dimensions (WxHxD): 120 x 120 x 30 mm
• Weight: 0.18 kg

Recommendations

For a complete installation, order SC-Duplex or LC-Quad adapters separately. Use with appropriate fiber optic cables and connectors for optimal performance.
