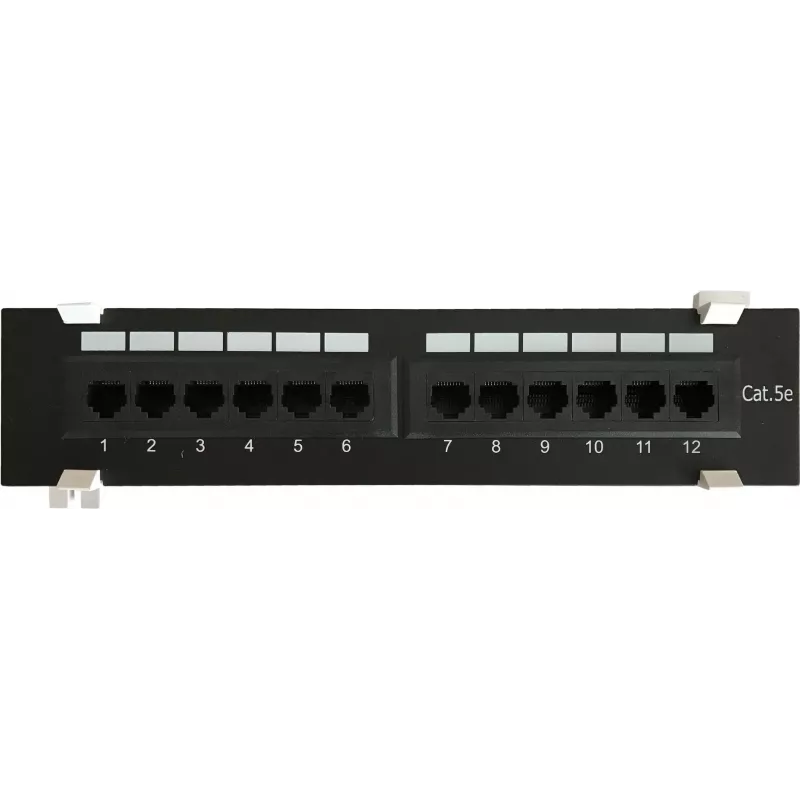

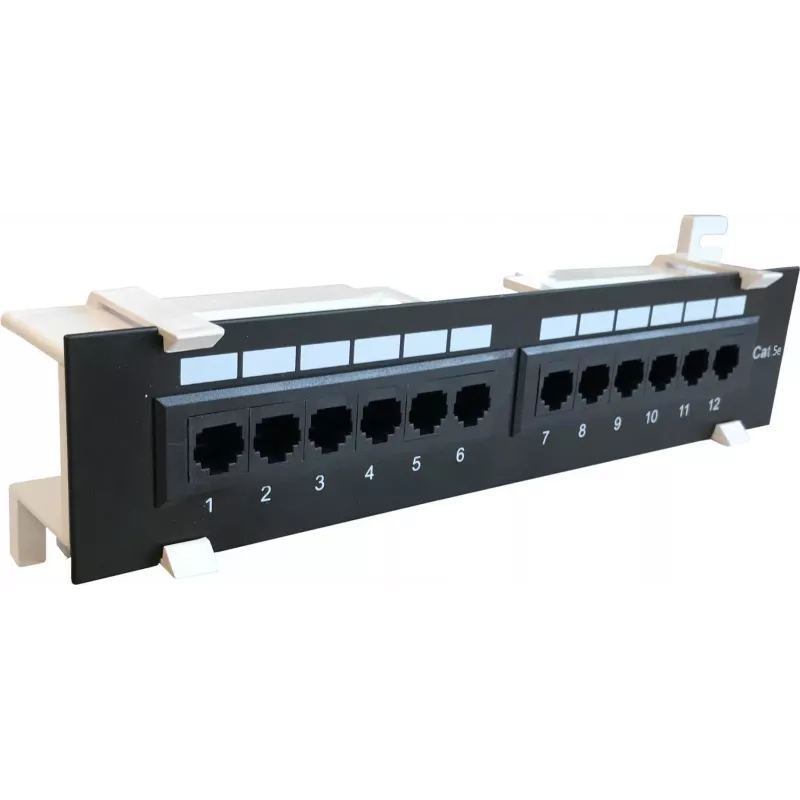

Panel de parcheo DSIT CAT 5e de montaje en pared 12 puertos UTP

Managing network cables in a small office or home setup can quickly become a tangled mess, leading to connection issues and troubleshooting headaches. The DSIT CAT 5e Wall Mount Patch Panel 12-Port UTP provides a clean, centralized termination point for your Ethernet cables, eliminating clutter and ensuring reliable connections.

Who is it for

This patch panel is ideal for IT professionals, network installers, and DIY enthusiasts who need a compact, wall-mounted solution for small to medium network installations, such as home offices, small businesses, or branch offices. It is perfect for those who want a professional-grade cable management system without the need for a full-size rack.

Main features

• 12 RJ45 ports supporting Category 5e performance up to 100 MHz, suitable for 10/100BASE-TX Ethernet networks.

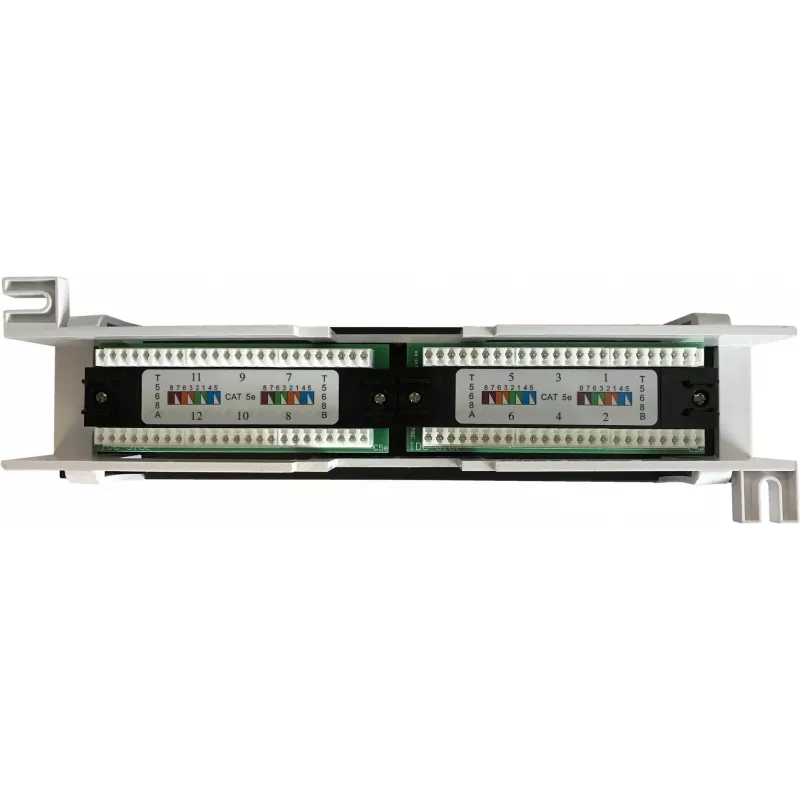

• Unshielded Twisted Pair (UTP) design with LSA+ (Krone compatible) IDC termination blocks for fast and secure cable punching.
• Wall-mountable SPCC steel housing with black finish, providing durability and easy installation in tight spaces.
• Supports TIA/EIA 568A/B wiring standards, ensuring compatibility with standard network cabling.
• Integrated grounding option and RoHS/CE compliance for safety and environmental standards.

Specifications

• Product type: Patch panel
• Mounting type: Wall mount
• Number of ports: 12
• Cabling standard: Category 5e (Cat 5e)
• Shielding type: UTP (Unshielded Twisted Pair)
• Front connector type: RJ45 female
• Rear termination type: IDC (Insulation Displacement Connector)
• IDC type: LSA+ (Krone compatible)
• Wiring standard: TIA/EIA 568A/B
• Housing material: SPCC steel
• Colour: Black
• Bandwidth: 100 MHz
• Data transfer rate: 10/100 Mbps
• Operating temperature: -10°C to 60°C
• Certifications: RoHS, CE
• Flammability rating: UL 94V-0 (plastic components)

Tips

For best performance, use solid-core Cat5e cables and a proper IDC punch-down tool. Label each port after termination to simplify future troubleshooting. Ensure the panel is mounted securely to a wall or backboard to avoid stress on the cables.
