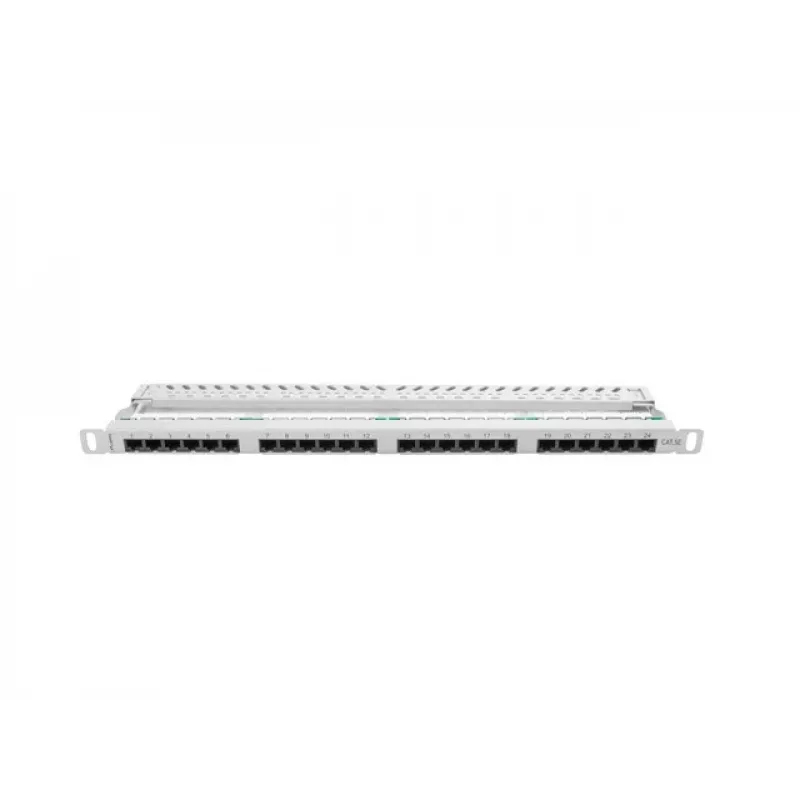

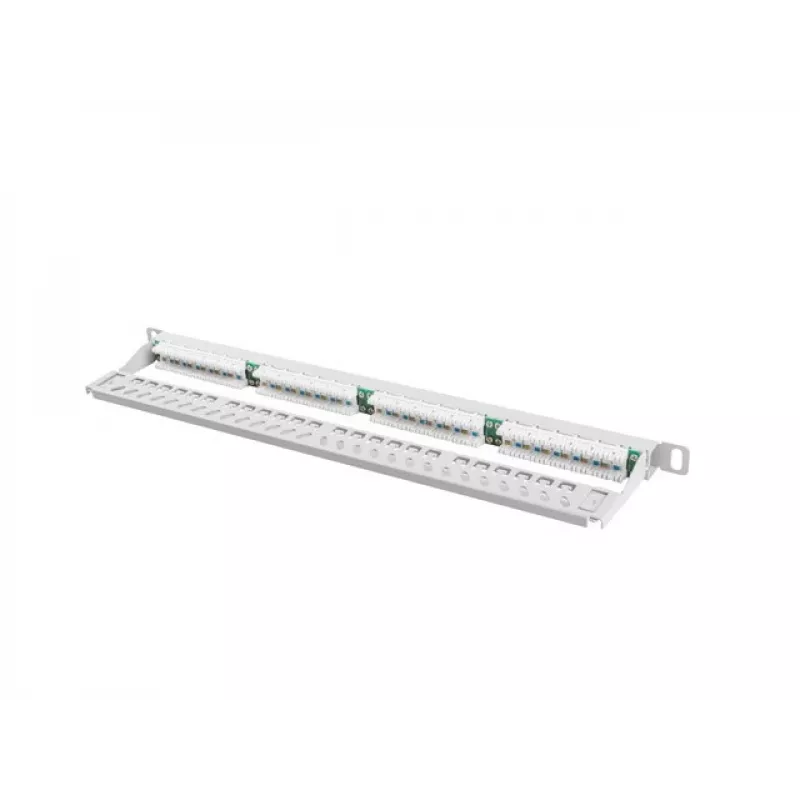

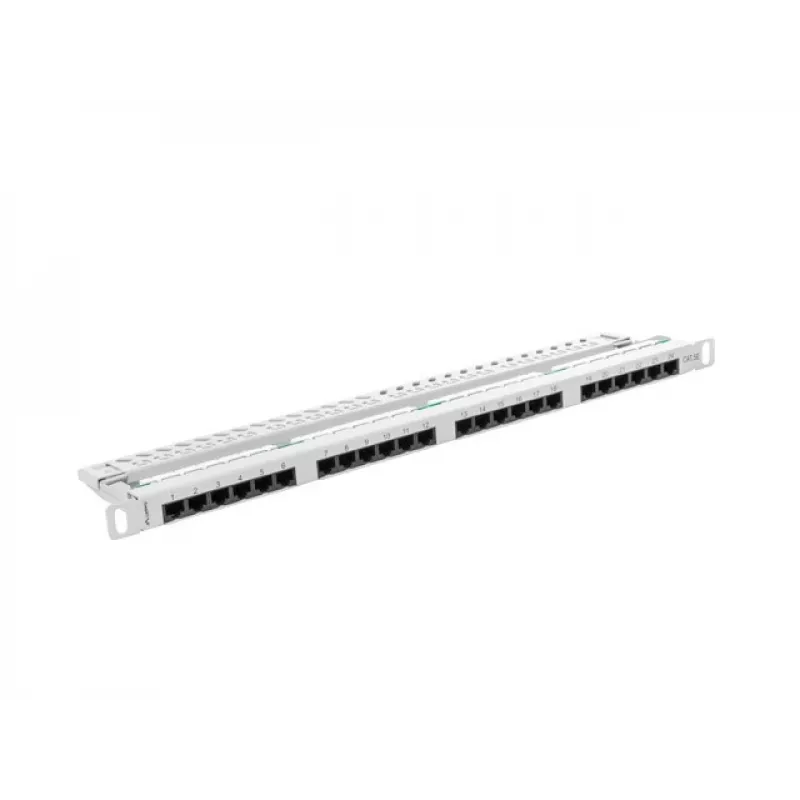

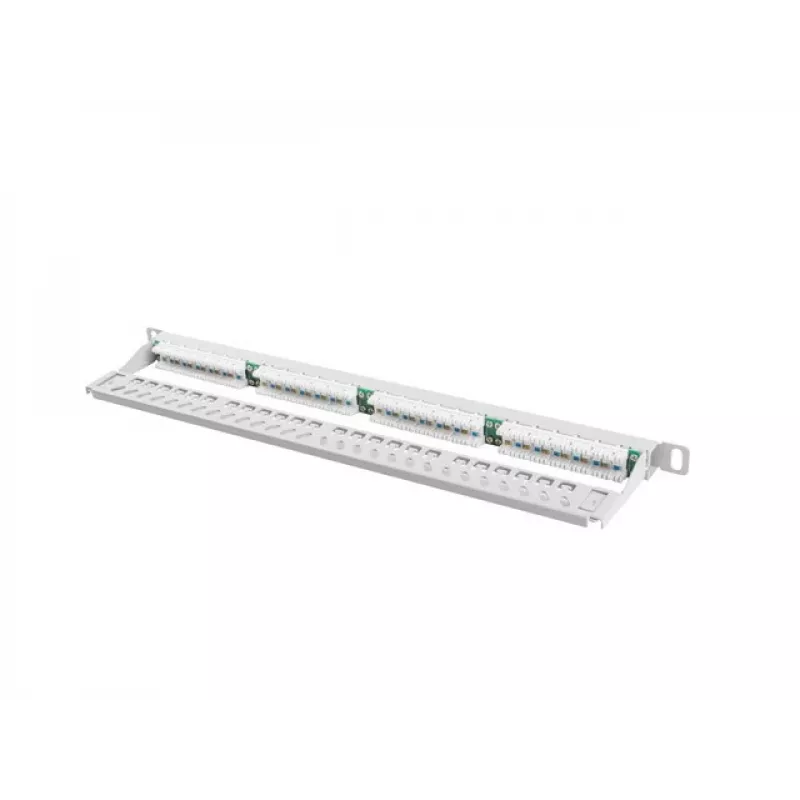

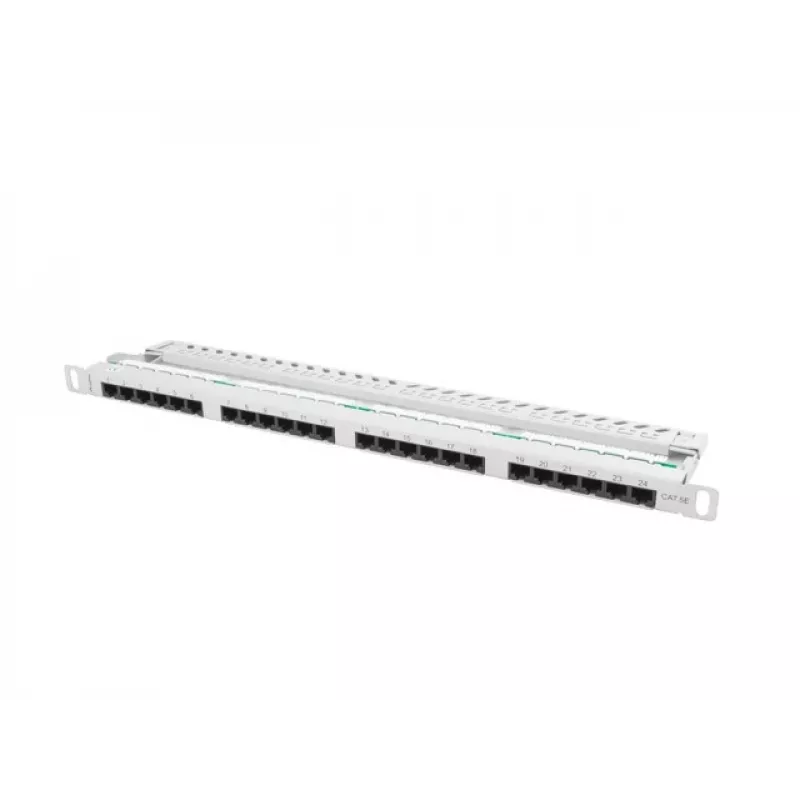

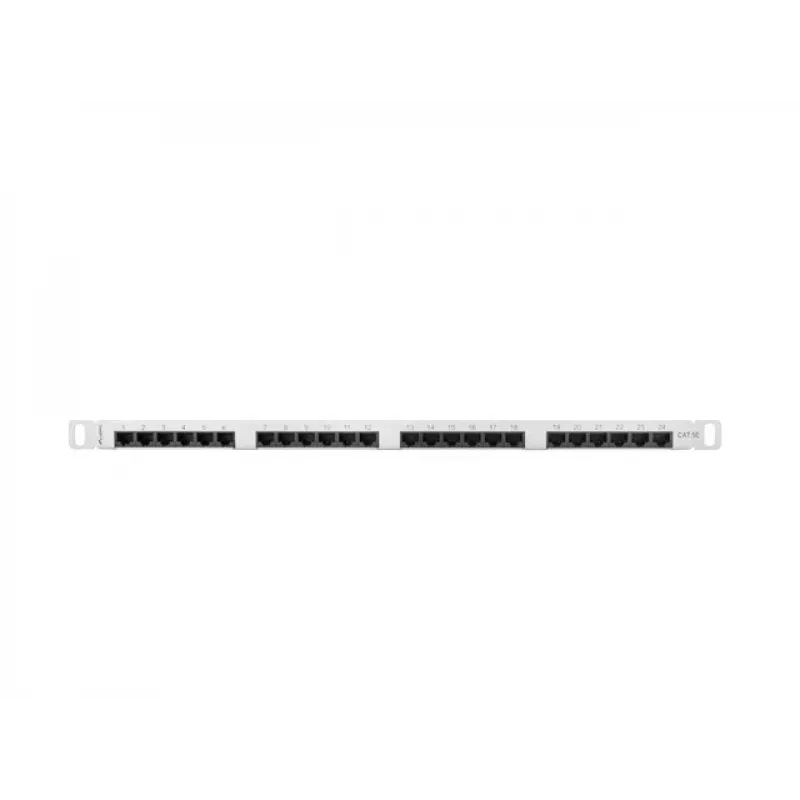

Panel de parcheo Lanberg PPU5-0024-S

The Lanberg PPU5-0024-S is a 0.5U metal patch panel for 19" rack installation, designed for termination and organization of twisted-pair cables in main and secondary distribution points of fast telecommunications systems. It provides 24 unshielded RJ-45 ports compliant with category 5e and supports Cat5/Cat5e cabling for reliable network connections. The panel includes IDC/LSA termination points and an attached cable management panel to simplify assembly and routing within racks. Dimensions: 440 mm (W) x 22.2 mm (H) x 99 mm (D); weight 0.6 kg; colour: grey.

Advantages

Metal construction and 0.5U compact form factor allow efficient use of rack space while ensuring mechanical durability. IDC/LSA connectors enable fast, tool-assisted termination of twisted-pair cables without the need for modular jacks. The integrated cable management panel improves cable routing and keeps connections organized for easier maintenance.

Suitable for

• Termination of Cat5 and Cat5e twisted-pair cables in telecom racks
• Main and secondary distribution points in fast telecommunication systems
• Small office, server room, and home network rack installations

Key specifications

• Model: Lanberg PPU5-0024-S
• Form factor: 0.5U, 19" rack mount
• Ports: 24 × RJ-45, unshielded, Cat5e
• Termination: IDC/LSA
• Material: metal
• Dimensions (W×H×D): 440 × 22.2 × 99 mm
• Weight: 0.6 kg
• Colour: Grey

How to use

Mount the patch panel into a standard 19" rack using appropriate rack screws. Run twisted-pair cables from network devices or distribution points to the rear of the panel and terminate each conductor pair into the IDC/LSA slots following the color code for Cat5/Cat5e. Verify terminations with a cable tester. Connect patch cords to the front RJ-45 ports to establish patching between equipment and the structured cabling.

Recommendations

Use quality Cat5e cables and a compatible punch-down tool for reliable terminations, and label both patch panel ports and corresponding patch cords to simplify future changes and troubleshooting.
