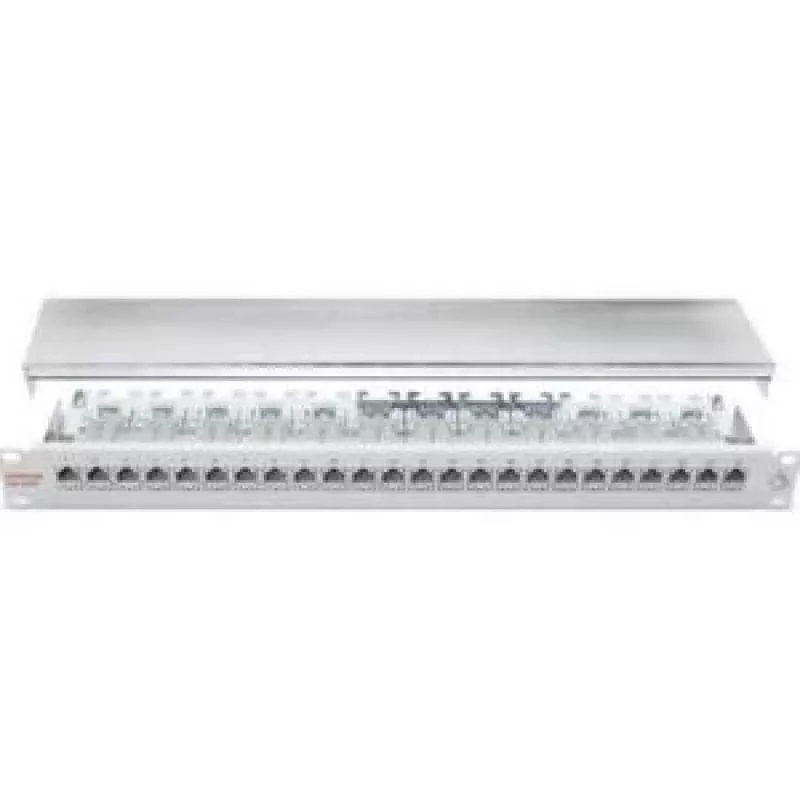

Dätwyler unilan CSA 24/8 panel de parcheo Cat.6A blindado de 24 puertos 1U, gris claro RAL 7035 417980

Managing high-density network connections in data centers and server rooms demands a patch panel that combines performance, reliability, and ease of use. The Dätwyler unilan CSA 24/8 Cat.6A shielded patch panel provides 24 ports in a compact 1U 19-inch rack-mount form factor, enabling efficient termination and organization of up to 24 data outlets. Its light grey RAL 7035 finish integrates seamlessly into standard rack environments.

Who is it for

This patch panel is ideal for network administrators, system integrators, and IT professionals who need to deploy or upgrade structured cabling systems in commercial buildings, data centers, or industrial settings. It is particularly suited for applications requiring high-speed 10 Gigabit Ethernet and support for Power over Ethernet (PoE) up to 4PPoE (IEEE 802.3bt).

Main features

• 24 shielded RJ45 ports with gold-plated contacts for reliable signal integrity.
• Cat.6A performance supporting up to 10 Gigabit Ethernet.
• LSA-Plus (IDC) rear termination for fast, tool-less or punch-down installation.
• Integrated grounding stud and shielded housing for superior EMI protection.
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powering devices.
• Integrated labeling fields and rear cable tie points for organized cable management.
• Robust steel housing in light grey RAL 7035 for durability and a professional look.

Specifications

• Brand: Dätwyler
• Model: unilan CSA 24/8
• MPN: 417980
• EAN: 40393910165685
• Product Type: Network Patch Panel
• Number of Ports: 24
• Performance Category: Cat.6A (EA)
• Shielding: Shielded (STP/FTP)
• Mounting Type: 19-inch Rackmount
• Height Unit: 1U
• Front Connector Type: RJ45 Jack
• Rear Termination Type: LSA-Plus (IDC)
• Colour: Light Grey (RAL 7035)
• Housing Material: Steel
• Power over Ethernet (PoE): Yes (PoE, PoE+, 4PPoE / IEEE 802.3af/at/bt)
• Transmission Speed: Up to 10 Gigabit Ethernet
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -20 to +70 °C
• Grounding: Integrated grounding stud
• Labeling: Integrated labeling fields
• Cable Management: Rear cable tie points
• Contact Plating: Gold-plated contacts

Tips

For optimal performance, use Cat.6A shielded cabling and ensure proper grounding of the patch panel to the rack. When terminating, follow TIA/EIA-568-C.2 wiring schemes and use a high-quality LSA-Plus punch-down tool. Leave adequate slack in the cables and use the rear tie points to reduce strain on connections.
