Panel inteligente Grenton 4 campos táctiles OLED TF-Bus pantalla frontal de cristal negro

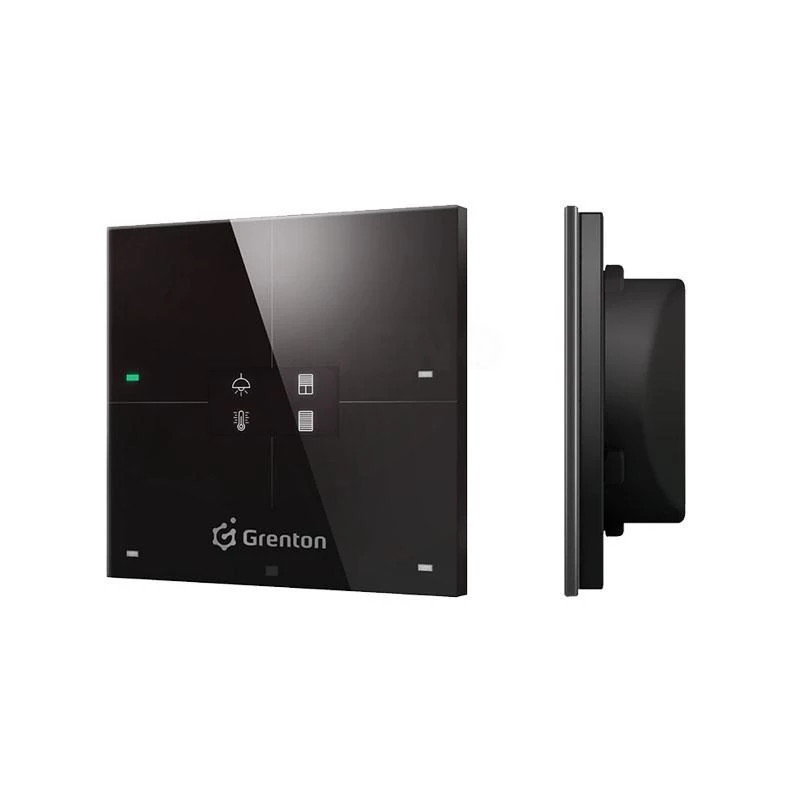

The Grenton Smart Panel SPS-204-T-01 is a modern control interface for the Grenton Smart Home System, featuring 4 capacitive touch fields and a 1.3-inch OLED display. The black glass front panel provides a sleek, minimalist look suitable for any interior. It communicates via the proprietary TF-Bus protocol and is powered directly from the bus, requiring no additional power supply. The integrated temperature sensor allows for local climate monitoring, while the customizable user interface can be configured using the Grenton Manager software.

Advantages

This smart panel offers intuitive control of your smart home devices through four programmable touch fields with backlight. The OLED display shows clear status information and can be customized to your needs. The wall-mounted design fits standard 60mm electrical boxes, making installation straightforward. With low power consumption (max 1W) and reliable TF-Bus communication, it integrates seamlessly into the Grenton ecosystem.

Suitable for

• Controlling lighting, blinds, heating, and other smart home functions
• Replacing traditional switches with a modern touch interface
• Providing local temperature sensing and display
• Customizable scenes and automation triggers

Key specifications

• Display: 1.3-inch OLED, 128x64 pixels
• Touch Fields: 4 capacitive touch areas with backlight
• Communication: Grenton TF-Bus
• Front Material: Black glass
• Power: 12V DC via TF-Bus, max 1W
• Sensor: Integrated temperature sensor
• Installation: Wall-mounted, 60mm electrical box
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• System Compatibility: Grenton Smart Home System

Recommendations

For optimal performance, use with Grenton Manager software for configuration. Ensure TF-Bus wiring is correctly installed. Suitable for indoor use only.
