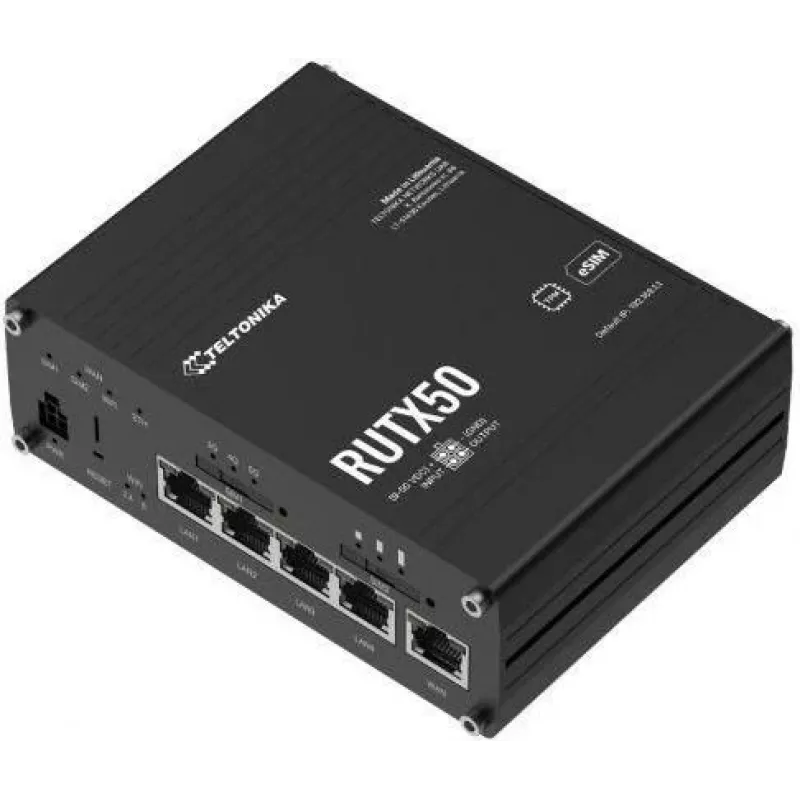

Panorama Antennas RUTX50 (EU) router 5G LTE ANT - pack de instalación en armario interior/exterior 5G (TEL-PAN-5GCAB-BUNDLE)

Unlock 3.4 Gbps downlink speeds with the Panorama Antennas RUTX50 (EU) 5G LTE Router ANT Bundle, a rugged connectivity solution engineered for indoor and outdoor cabinet installations. This bundle pairs a Teltonika RUTX50 industrial 5G router with high-performance Panorama antennas, delivering reliable multi-gigabit cellular and dual-band Wi-Fi in demanding environments.

Overview

The TEL-PAN-5GCAB-BUNDLE integrates a quad-core ARM Cortex A7 router running at 710 MHz with 256 MB DDR3 RAM and 256 MB SPI flash, supporting 5G SA/NSA, LTE Cat 20, and 3G fallback. Five Gigabit Ethernet ports (1 WAN, 4 LAN) and dual SIM slots provide flexible WAN connectivity and failover, while GNSS (GPS, GLONASS, BeiDou, Galileo) enables precise location tracking. The included Panorama antennas are rated for both indoor and outdoor use, ensuring strong signal reception in cabinets, kiosks, or remote enclosures.

What stands out

• Blazing 5G speeds up to 3.4 Gbps down and 900 Mbps up
• Industrial-grade aluminium enclosure with wide -40 °C to 75 °C operating range
• Flexible power input from 9 to 50 VDC for diverse installations
• Comprehensive VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP, Stunnel, DMVPN
• Dual-band Wi-Fi 5 (802.11ac) with 2x RP-SMA connectors for external antennas
• DIN rail and wall mount options plus cabinet installation kit included

Technical details

• Cellular: 5G SA/NSA, 4G LTE Cat 20, 3G
• Wi-Fi: IEEE 802.11b/g/n/ac, dual-band 2.4/5 GHz
• Ethernet: 5 x Gigabit (1 WAN, 4 LAN)
• SIM: 2 x Mini SIM (2FF)
• Antenna connectors: 4 x SMA (cellular), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS)
• Processor: Quad-core ARM Cortex A7, 710 MHz
• Memory: 256 MB DDR3 RAM, 256 MB SPI Flash
• Power: 9-50 VDC
• Management: Teltonika RMS, WebUI, CLI, SNMP, JSON-RPC, MQTT
• Region: EU

Our verdict

For integrators and enterprises needing a dependable 5G gateway in harsh or space-constrained settings, this bundle delivers exceptional throughput, robust build quality, and versatile mounting—all with the assurance of Panorama's antenna expertise.
