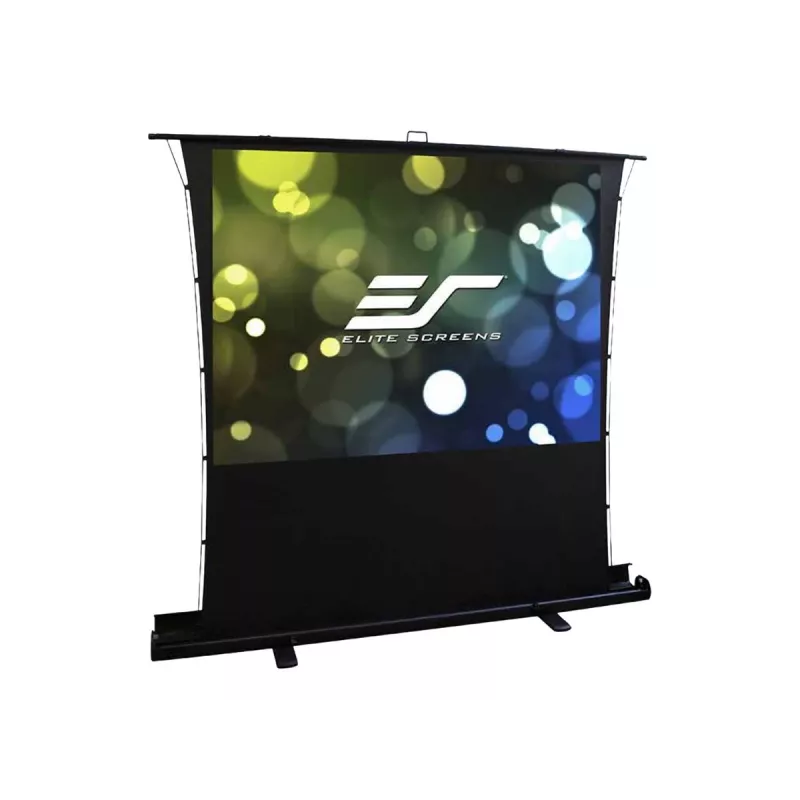

Pantalla de proyección Elite Screens ezCinema Tab-Tension 2,34 m (92")

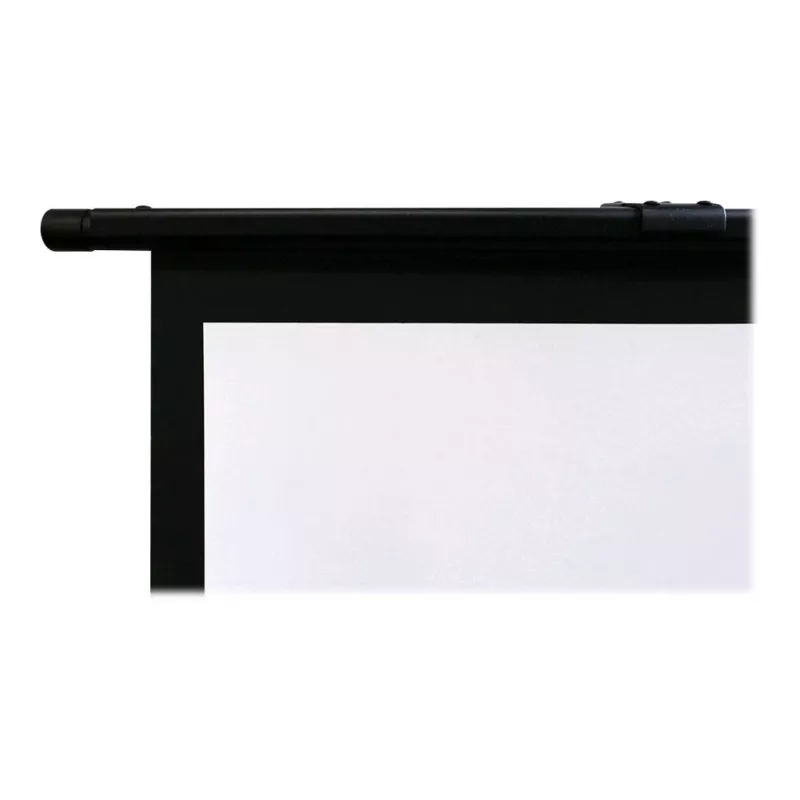

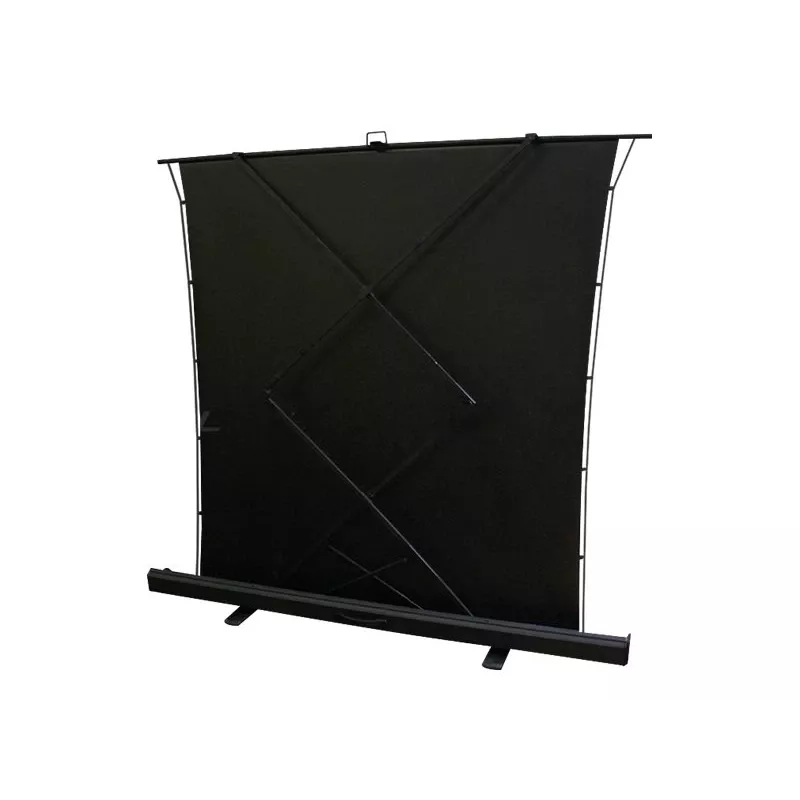

The Elite Screens ezCinema Tab-Tension is a free-standing portable projection screen with a 92" (2.34 m) diagonal and native 16:9 aspect ratio. The viewable image area measures 2.03 m in width and 115.1 cm in height. The screen uses a matte white surface with a black backing and is masked on all four sides to improve visual contrast and appearance. Its scissor-backed mechanism allows quick pull-up and retraction without tools, and the tab-tension system keeps the material flat at the sides for better compatibility with ultra/short-throw projectors.

Advantages

The tab-tension system provides a taut, wrinkle-free surface for more accurate image reproduction while the black backing reduces light penetration for improved brightness and contrast. The scissor-backed free-standing design makes setup and takedown fast and tool-free, providing portability for presentations and mobile use. Masking on all four sides enhances perceived contrast and gives a cleaner look in different room environments.

Suitable for

• Mobile presentations and corporate events
• Home cinema and movie screenings
• Temporary installations and training rooms
• Use with ultra/short-throw projectors

Key specifications

• Model: Elite Screens ezCinema Tab-Tension (FT92XWH)
• Diagonal: 92" (2.34 m)
• Aspect ratio: 16:9 (native)
• Viewable width: 2.03 m
• Viewable height: 115.1 cm
• Weight: 13.1 kg
• Colour: Black frame/masking with matte white surface and black backing

How to use

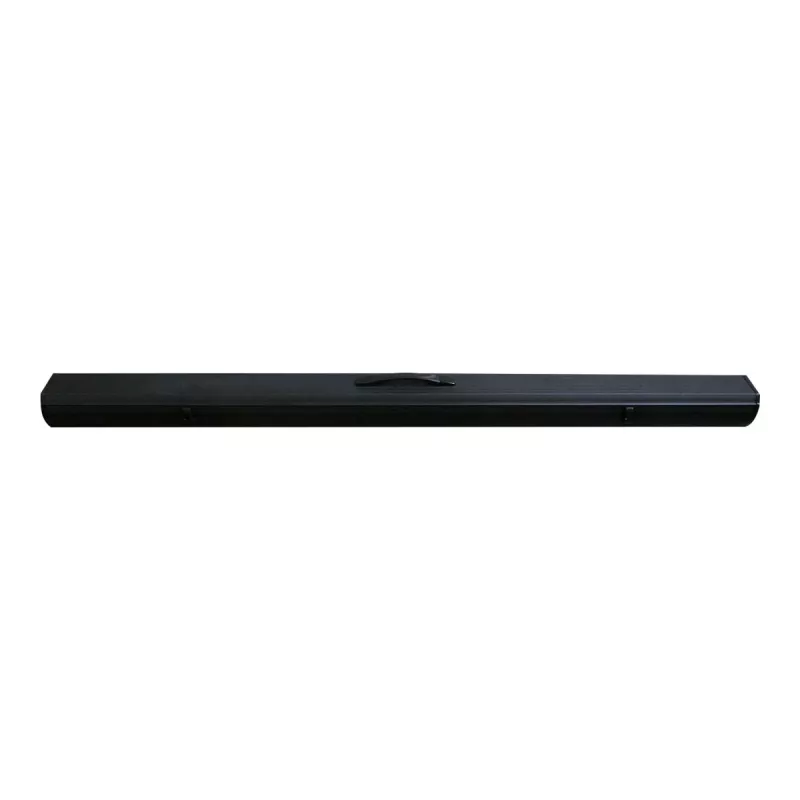

Place the freestanding unit on a stable, level floor surface. Pull the screen up using the scissor-backed mechanism until it locks in place, and extend the frame as required. Position the projector so that its throw and lens shift align with the 16:9 viewing area; the tab-tensioned edges will keep the material flat for correct geometry. After use, retract the screen by unlocking the mechanism and lowering the unit for compact storage and transport.

Recommendations

For best image quality, use the screen in controlled ambient light and align the projector to fill the 2.03 m width while maintaining the native 16:9 aspect ratio. Avoid folding or creasing the projection surface and store the unit in a dry place when not in use.
