Pantalla de proyección Elite Screens Spectrum 3,17 m (125")

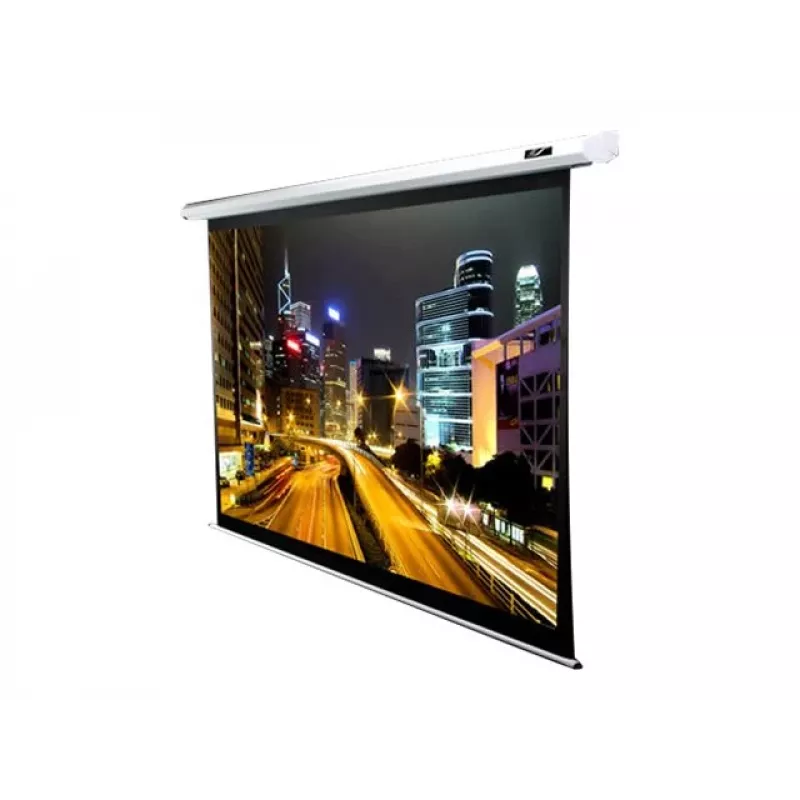

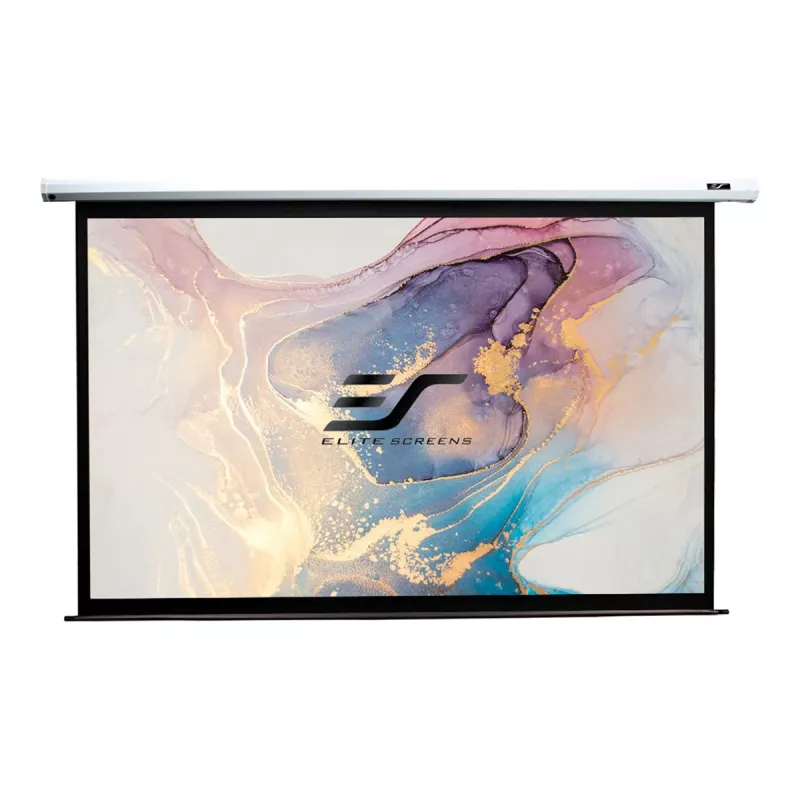

The Elite Screens Spectrum ELECTRIC125XH is a motorized projection screen with a 125" diagonal (3.17 m) and a 16:9 aspect ratio. The viewable image area measures approximately 276.9 cm × 155.7 cm (W×H). The screen uses MaxWhite material for a smooth, easy-to-clean surface and is compatible with 4K Ultra HD content on the MaxWhite variant. Models in this series are available in multiple sizes and some sizes offer acoustically transparent material options for in-speaker placement.

Advantages

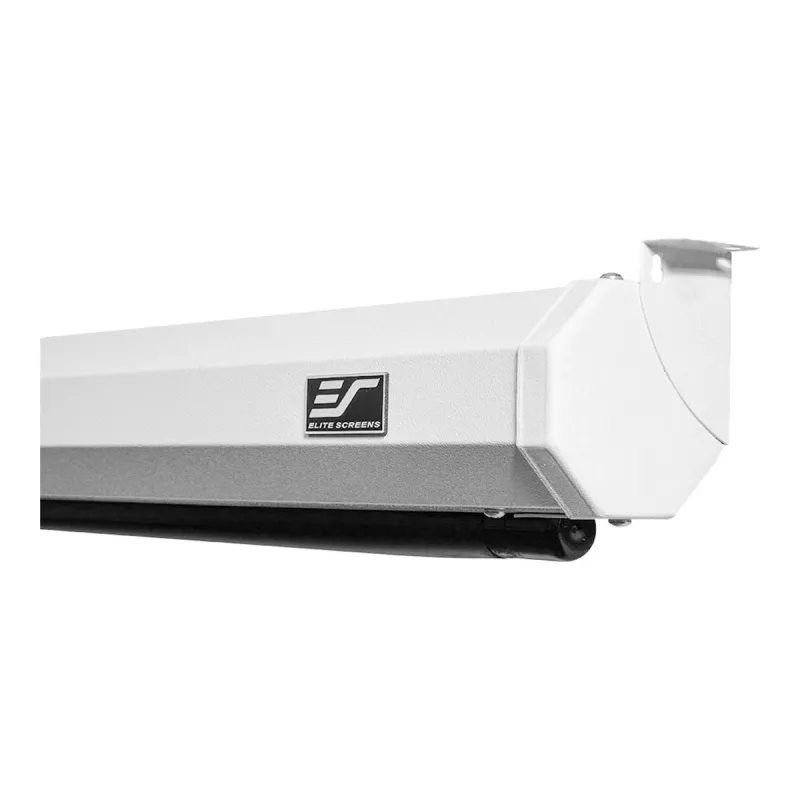

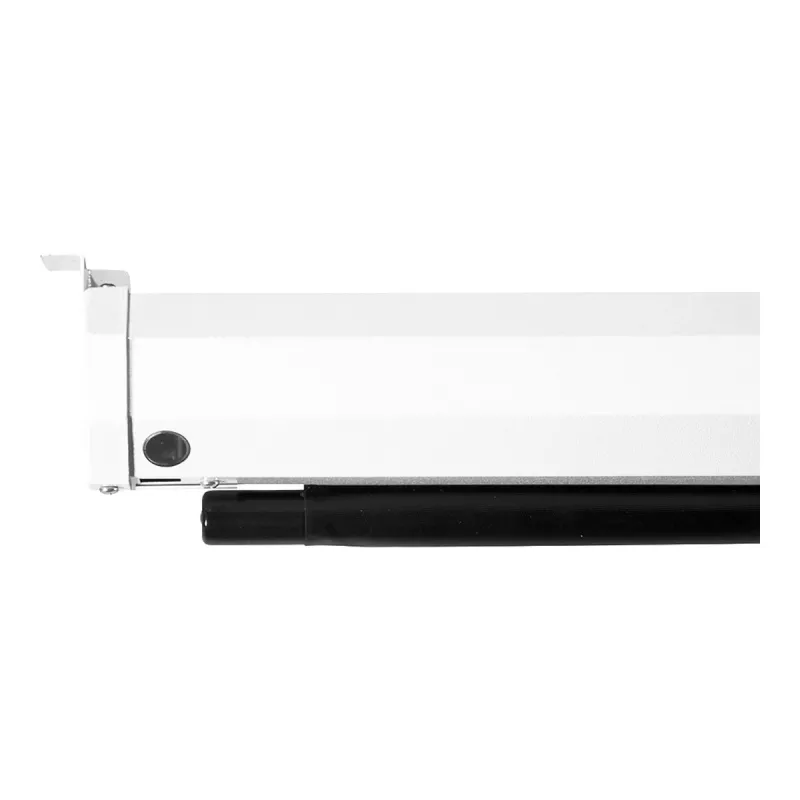

MaxWhite projection material provides a 180° viewing angle and 1.1 gain for uniform brightness across the image. The casing and synchronous motor are designed for quiet and reliable operation with low power consumption. Control options include IR remote, detachable 3-way wall switch, built-in 5–12 V trigger port with included trigger cable, low-voltage IR receiver and RJ45 for third-party control integration. The unit ships assembled with mounting hardware and a bubble leveler for straightforward wall or ceiling installation.

Suitable for

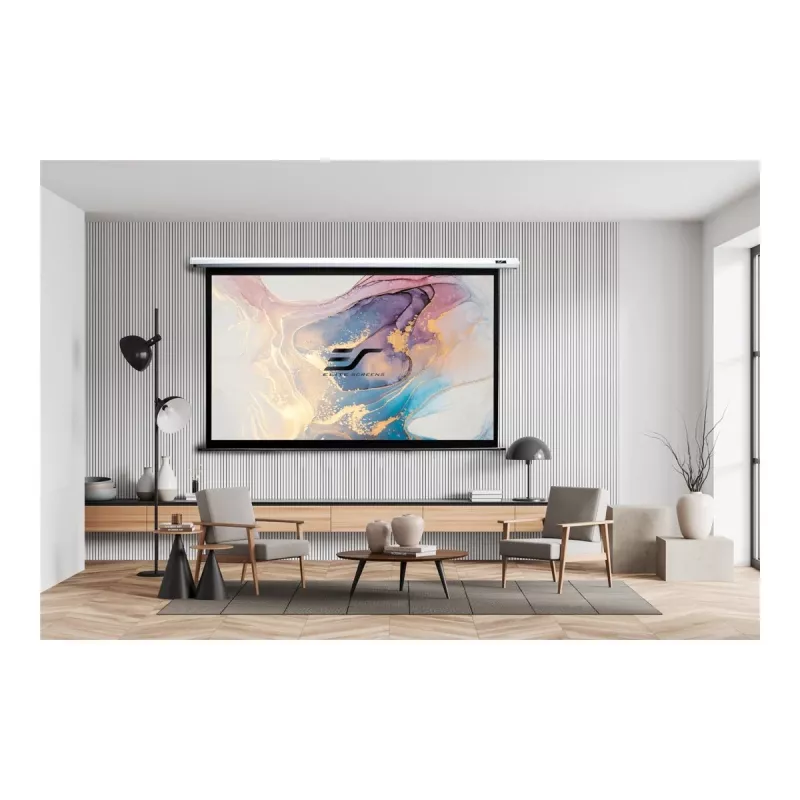

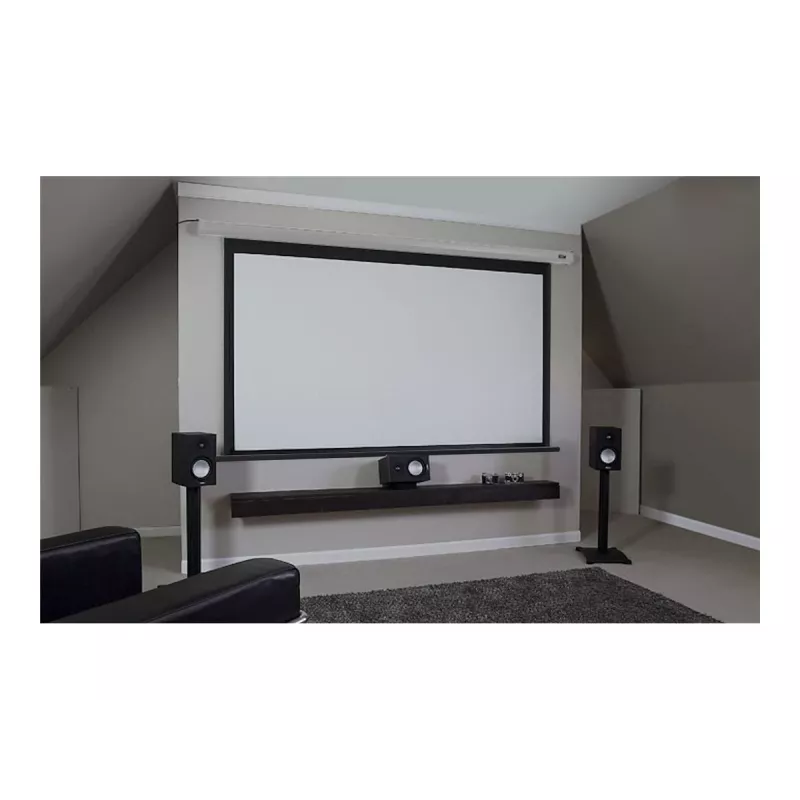

• Home theater installations with a 16:9 screen format
• Conference rooms and presentation spaces
• Rooms where a quiet, motorized screen is required
• Setups needing integration with control systems (IR, 12 V trigger, RJ45)

Key specifications

• Model: Elite Screens Spectrum ELECTRIC125XH
• Diagonal: 125" (3.17 m)
• Viewable area (W×H): 276.9 cm × 155.7 cm
• Aspect ratio: 16:9
• Material: MaxWhite (4K UHD ready on MaxWhite)
• Gain / Viewing angle: 1.1 gain / 180°
• Control: IR remote, detachable 3-way wall switch, 5–12 V trigger (cable included), low-voltage IR receiver, RJ45 input
• Mounting: Wall/ceiling, includes screws, drywall anchors and bubble leveler
• Certifications: AMX, Crestron compatible; ANSI/UL Std. 60950-1; CAN/CSA C22.2

How to use

Mount the casing on a suitable wall or ceiling surface using the included wood screws and drywall anchors; use the bubble leveler to ensure proper alignment. Connect the screen to mains power with the supplied 3-prong cable. Control the screen with the supplied IR remote or use the detachable 3-way wall switch. For automated power-cycle synchronization with a projector, connect the projector trigger to the built-in 5–12 V trigger port using the included trigger cable. For integration into control systems, use the RJ45 input or the low-voltage IR receiver as required.

Recommendations

For best image quality, position the projector according to its throw distance and alignment guidelines for a 16:9 125" screen, and clean the MaxWhite surface with a soft, dry cloth or a mild non-abrasive cleaner when needed. If placing speakers behind the screen, choose the AcousticPro acoustic transparent material options offered in compatible sizes.
