Pasacables DELOCK carcasa D-Sub 9 polos para cable plano, plástico, negro, 25×32×14 mm

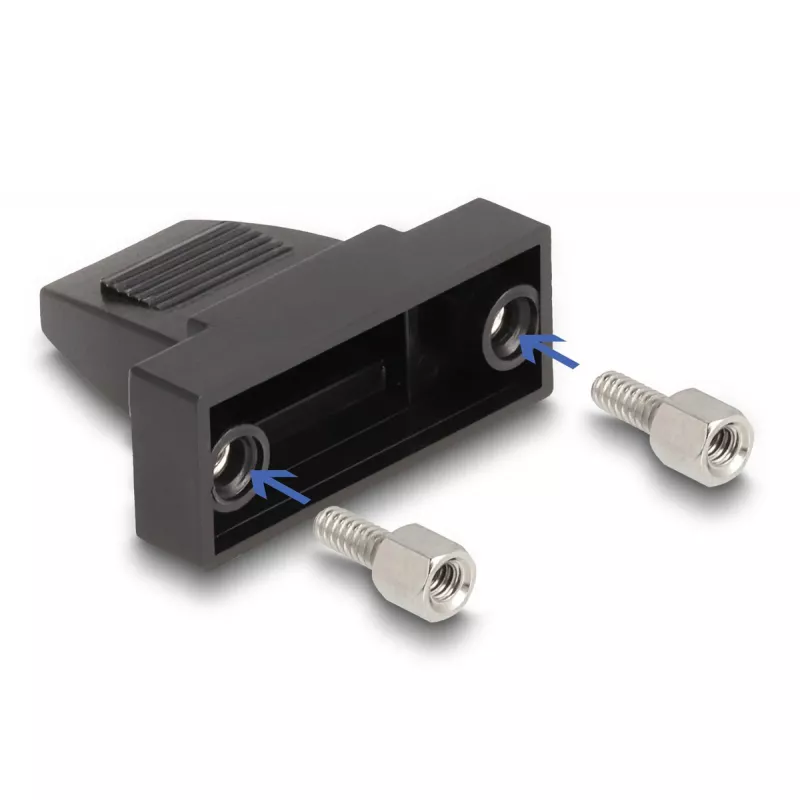

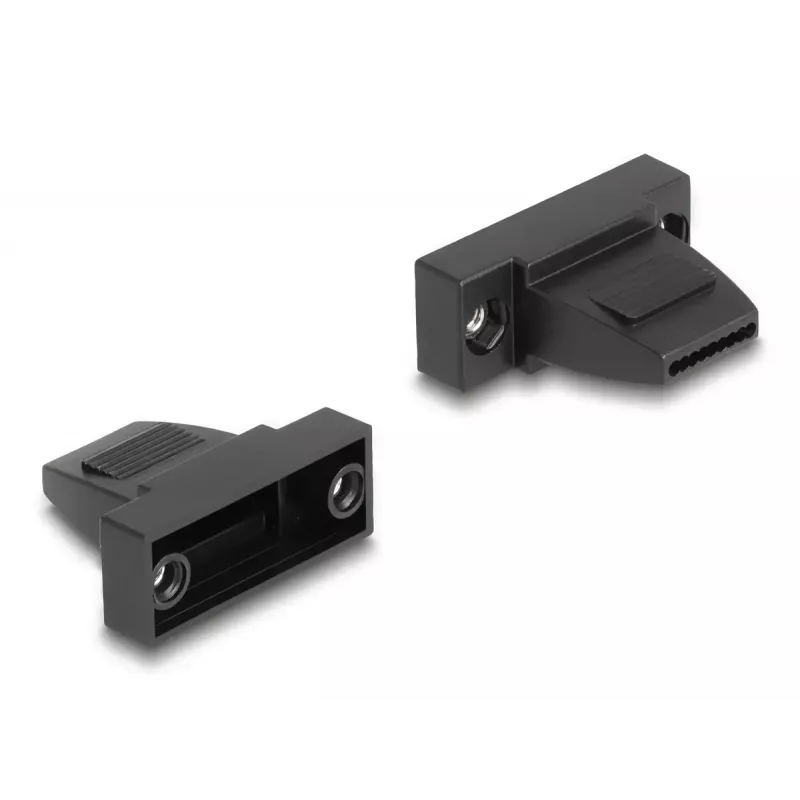

DELOCK D-Sub Housing 9‑pin is a plastic cable boot designed to protect and insulate 9‑pin D‑Sub male or female connections on flat cable assemblies. With compact dimensions of 25 × 32 × 14 mm and a black finish, the housing provides mechanical protection, strain relief and a neater cable routing for soldered or crimped terminations. The part is supplied as a single piece and is intended for DIY installation where a simple, robust enclosure for D‑Sub 9 connections is required.

Advantages

The plastic construction offers lightweight protection against dust and incidental contact while keeping overall weight low. Its tailored shape for flat cables provides improved strain relief to reduce stress on solder joints and crimps. The compact dimensions make it suitable for tight spaces and allow tidy cable runs without adding unnecessary bulk. Assembly is straightforward, supporting manual installation and basic cable-management needs.

Suitable for

• Protecting soldered or crimped 9‑pin D‑Sub terminations on flat ribbon or flat cables
• DIY electronics and cable-repair tasks requiring a compact cable boot
• Enclosures and installations with limited space where a low-profile connector cover is needed
• Prototyping and small-series assemblies that need strain relief and insulation

Key specifications

• Connector compatibility: 9‑pin D‑Sub (male or female)
• Material: plastic
• Colour: black
• External dimensions: 25 × 32 × 14 mm
• Designed for use with flat cable assemblies
• Supplied quantity: 1 piece
• Manufacturing origin: Taiwan

How to use

Prepare the flat cable and complete soldering or crimping of the D‑Sub 9 pins according to the connector manufacturer's instructions. Slide the cable boot over the cable before final assembly where access allows, then position the housing around the connector body so that it encloses the termination area. Ensure the cable sits correctly within the housing to provide effective strain relief, and secure any fastening features of the connector as required. Check alignment and that the housing does not obstruct connector mating.

Recommendations

Use the housing with appropriately sized flat cables and check that the connector and termination method are compatible with the internal space. Avoid exposing the plastic housing to high temperatures or chemical solvents that could deform or degrade the material. For critical environments consider additional sealing or protective measures beyond the basic boot.
