Patch panel Extralink CAT5E UTP V2 24 Puertos

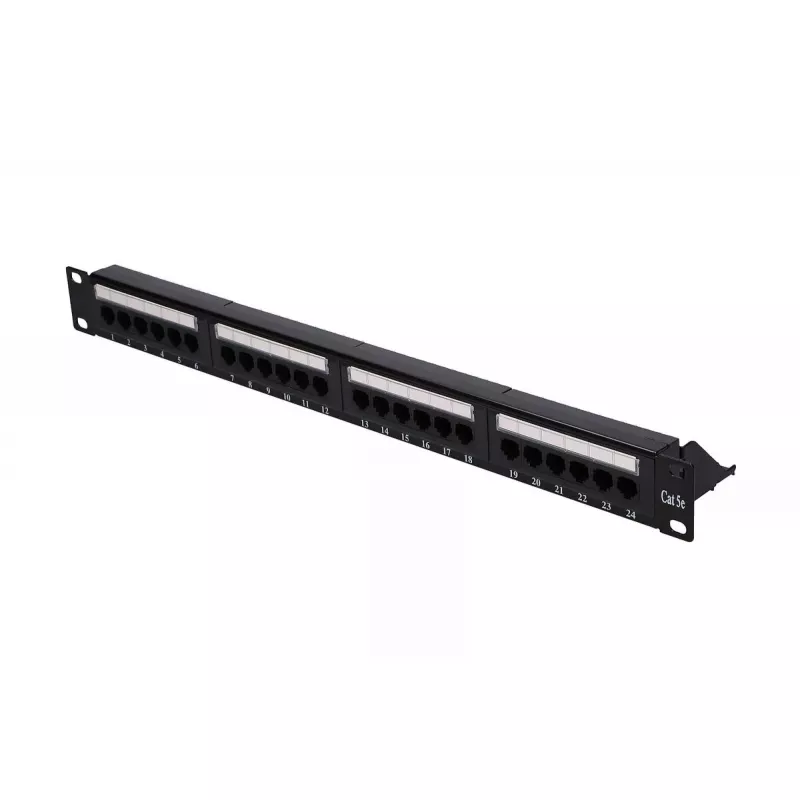

The Extralink Patch Panel CAT5E UTP V2 24 port is a 1U rack-mounted panel designed to terminate and organize Cat5e UTP cabling in structured network installations. It provides 24 RJ45 ports with copper contacts and is intended for use with Cat5e patchcords and cables to support 10/100/1000Base-T(X) connections in standard 19" racks.

Advantages

This patch panel offers a compact 1U form factor and a black finish for neat rack integration. Copper connector contacts ensure reliable signal transmission, and the 24-port layout simplifies cable management and network distribution. It is compatible with standard screws and mounting hardware used for active rack devices.

Suitable for

• Small and medium office networks
• Server racks and telecom cabinets
• Structured cabling installations using Cat5e UTP
• Patchcord-based connections to switches and routers

Key specifications

• Brand: Extralink
• Model / MPN: EX.9809
• EAN: 5902560369809
• Ports: 24 RJ45 (Cat5e UTP)
• Supported standard: 10/100/1000Base-T(X)
• Connector contacts: Copper
• Rack size: 1U, 19" mounting
• Colour: Black
• Output voltage: 2 V

How to use

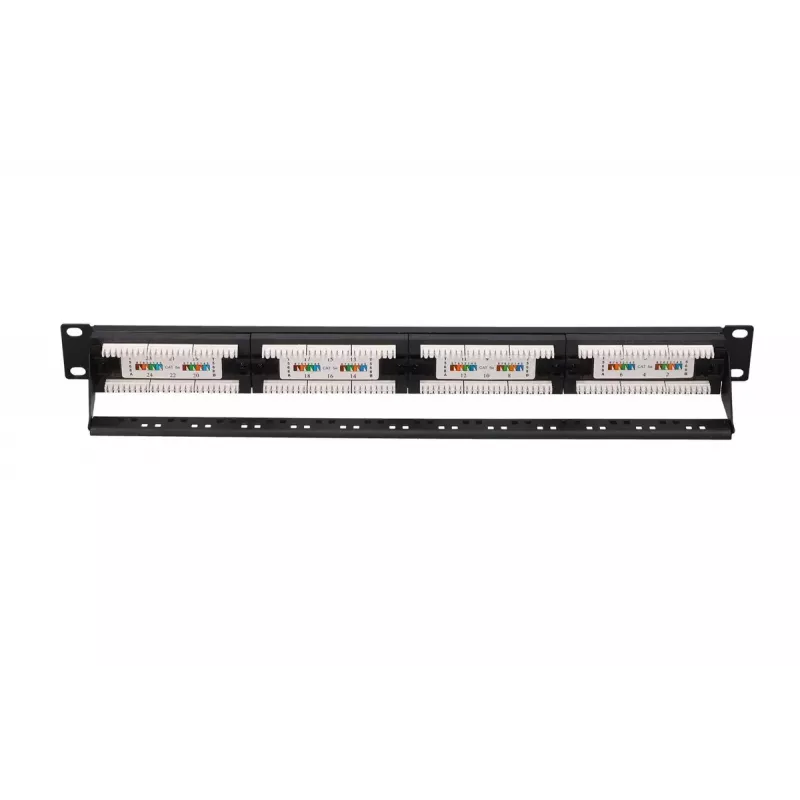

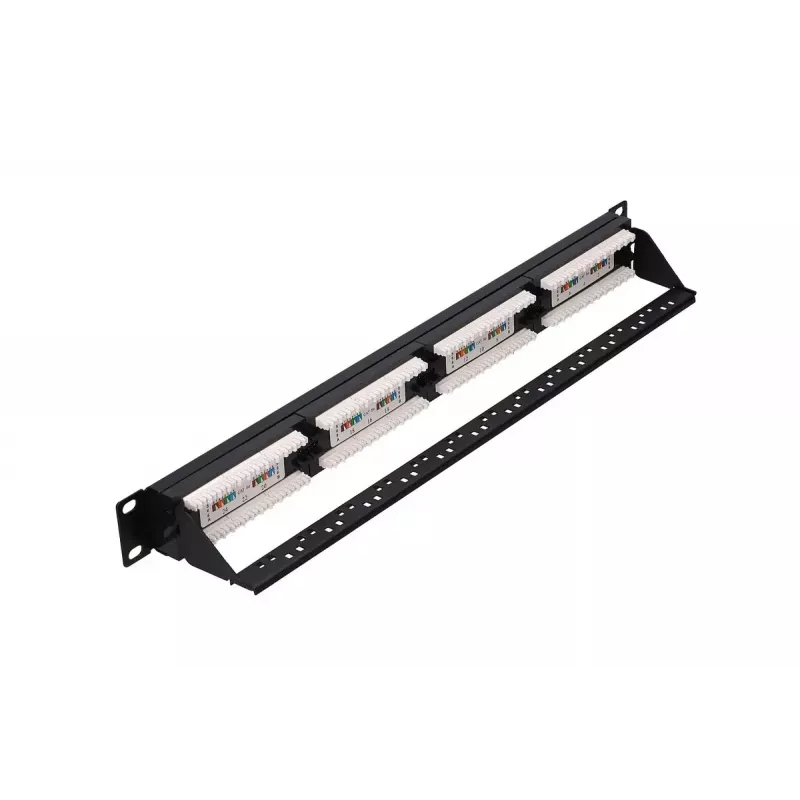

Mount the panel in a 19" rack using standard mounting screws. Terminate incoming Cat5e UTP cables on the rear side according to T568A or T568B wiring standards using a krone or punch-down tool. Use Cat5e patchcords to connect the front RJ45 ports to network switches, routers or other active devices to establish 10/100/1000Base-T(X) links.

Recommendations

For best results, maintain proper cable bend radius, label ports for easy identification, and use patchcords of the same category (Cat5e) to preserve link performance.
