PAWBOL Borne de conexión LZB E.4136ŻZ amarillo-verde

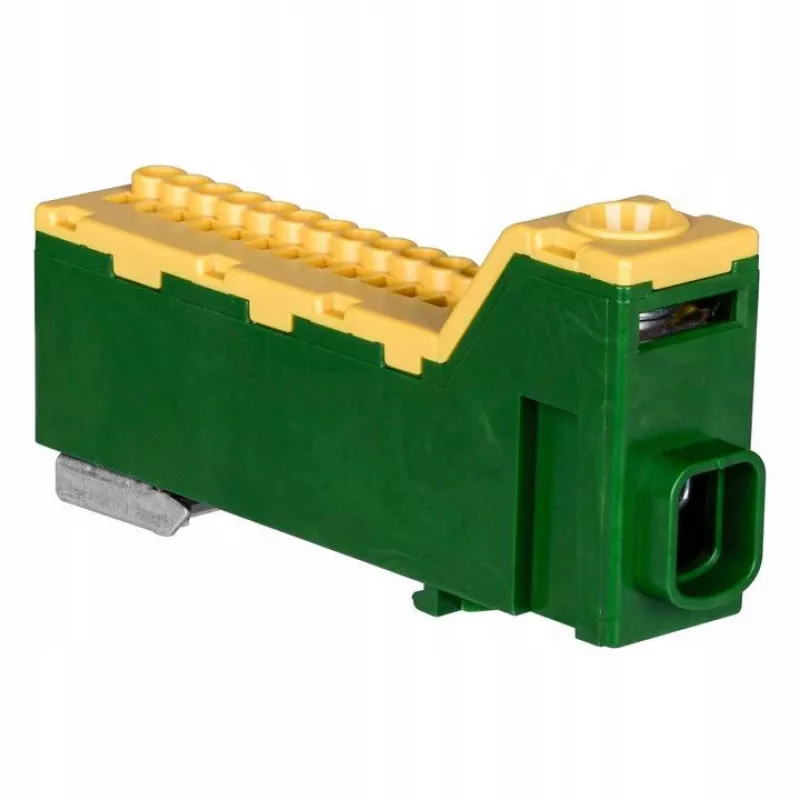

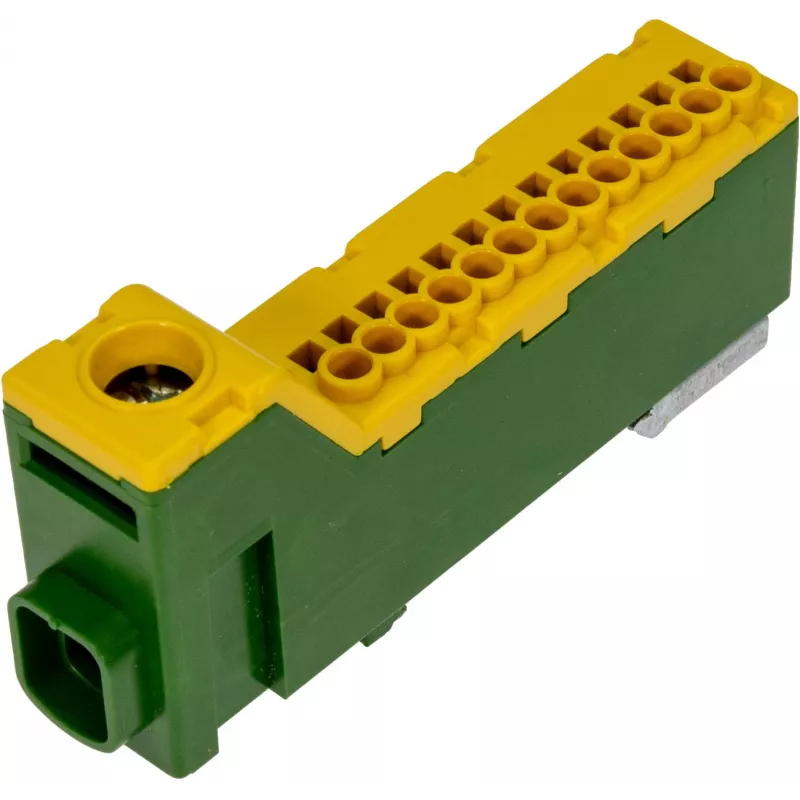

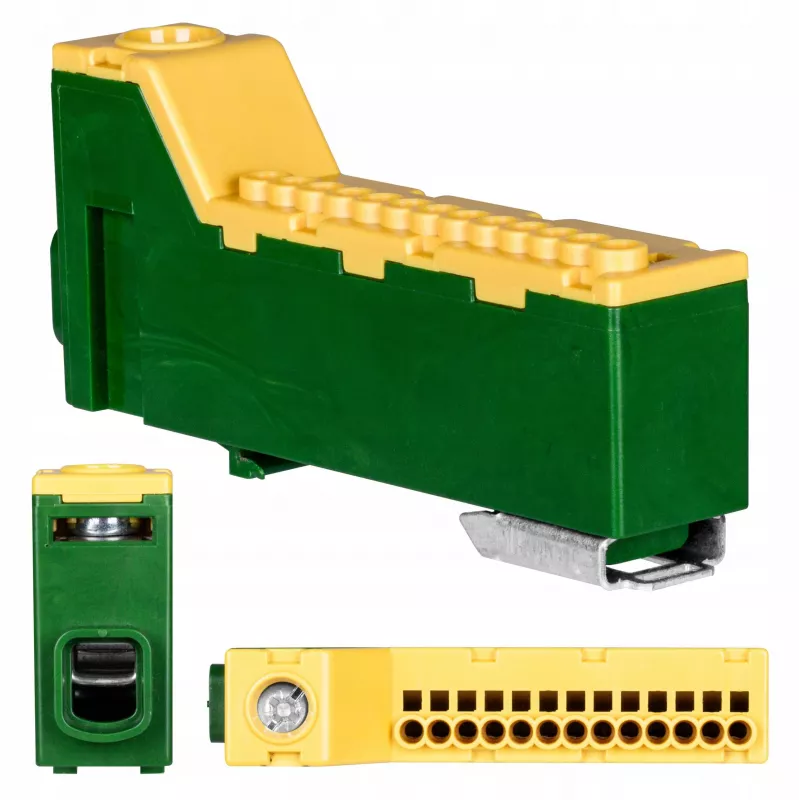

The PAWBOL LZB E.4136ŻZ is a high-quality screwless terminal block designed for reliable and efficient electrical connections. Featuring a spring clamp mechanism, this terminal block ensures fast, tool-free wiring for solid and stranded conductors. Its yellow-green color indicates its function as a protective earth (PE) connection, making it ideal for grounding applications in junction boxes or free-standing installations.

Advantages

This terminal block offers numerous benefits: tool-free spring clamp technology reduces installation time; compact single-pole design saves space; robust polyamide housing provides durability and insulation; and clear color coding ensures correct identification for safety-critical PE connections.

Suitable for

• Protective earth (PE) grounding in electrical installations
• Junction boxes and distribution boards
• Industrial control panels and automation systems
• Residential and commercial wiring projects

Key specifications

• Terminal Type: Screwless (Spring Clamp)
• Number of Poles: 1
• Conductor Compatibility: Solid and Stranded
• Conductor Cross-Section: 0.5 mm² to 2.5 mm² (both solid and stranded)
• Rated Voltage: 450 V
• Rated Current: 24 A
• Color: Yellow-Green
• Function: Protective Earth (PE) Connection
• Housing Material: Polyamide (PA6)
• Contact Material: Copper / Brass
• Mounting Type: Free-standing / Junction Box
• Operating Temperature: -25°C to +85°C
• Protection Class: IP20
• Standards Compliance: EN 60998-2-2

Recommendations

For optimal performance, ensure conductors are properly stripped and inserted fully into the spring clamp. This terminal block is suitable for use with both solid and stranded wires within the specified cross-section range. Always follow local electrical codes and regulations when installing.
