PDU de extensión ACT 19" CEE7/7 con 9 tomas Type-E, 3m H05VV-F 3G1.5

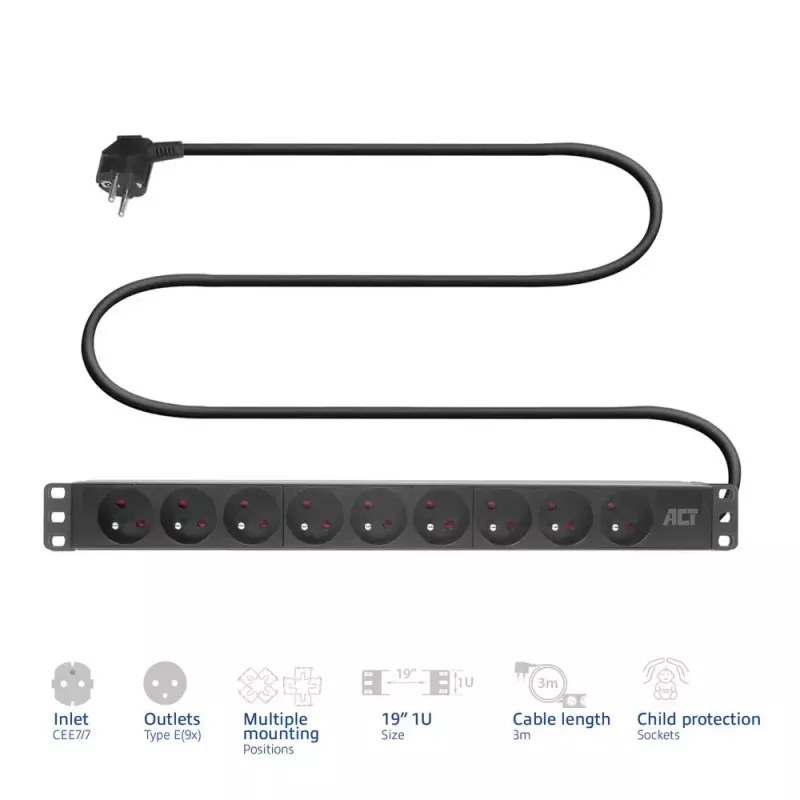

The ACT Extension lead PDU 19" CEE7/7 with 9 type E sockets provides nine grounded type E outlets in a 1U 19-inch rack-mount power strip. It includes a 3 m H05VV-F 3G1.5 cable with a CEE7/7 (Type F) plug, a black aluminium housing and 45° angled sockets with child protection. Mounting brackets are adjustable to multiple positions and all mounting material (cage nuts, screws/bolts and plastic washers) is supplied.

Advantages

This rack-mount PDU consolidates multiple grounded outlets in a compact 1U form factor suitable for network cabinets and server racks. The 45° angled sockets save space and improve cable routing, while child-protected contacts increase safety. The included 3 m cable gives reach to nearby power sources and the adjustable mounting brackets allow flexible installation angles.

Suitable for

When it may not be suitable

This PDU is intended for indoor rack use and requires a compatible mains outlet accepting a CEE7/7 (Type F) plug; it is not intended for outdoor or wet locations. It provides nine Type E outlets and a single CEE7/7 input, so installations requiring different outlet types or higher outlet counts will need an alternative solution.

Key specifications

How to use

Install the PDU into a 1U space in a 19-inch rack using the supplied mounting brackets and fixings. Position the brackets at the desired angle to optimise cable routing. Connect the CEE7/7 plug to a suitable mains outlet rated for up to 16 A and 250 V. Plug equipment into the nine Type E sockets, observing the maximum combined load of 4000 W. Ensure the installation complies with local electrical regulations.

What to consider before purchase

Recommendations

Distribute high-draw equipment across multiple PDUs if the combined load approaches 4000 W. Keep ventilation clear around the PDU and route cables to avoid strain on angled sockets.
