PDU Lanberg PDU-05E-0200-BK 5 tomas AC 1U negro

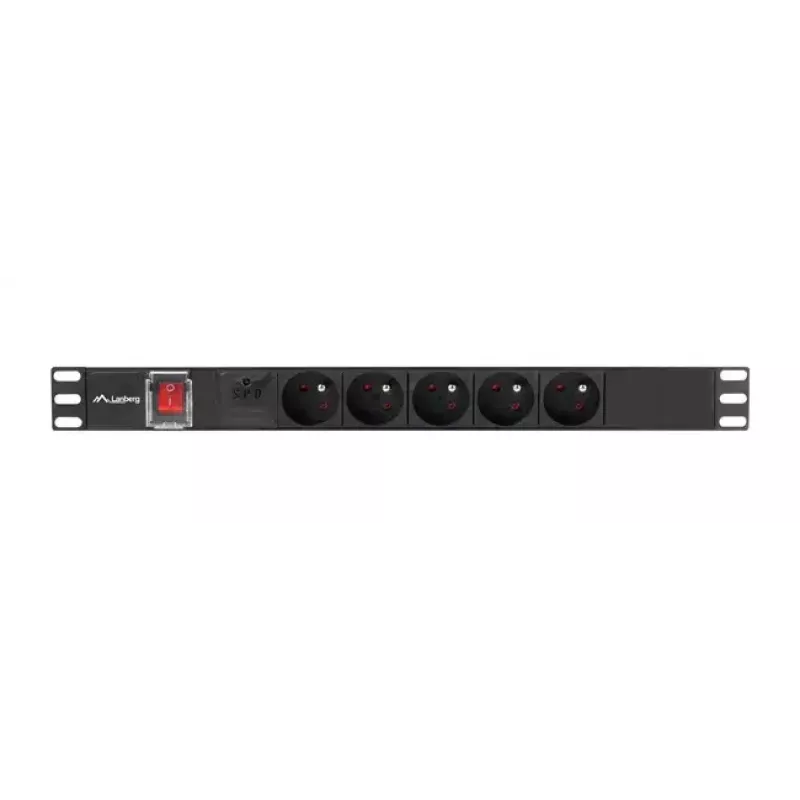

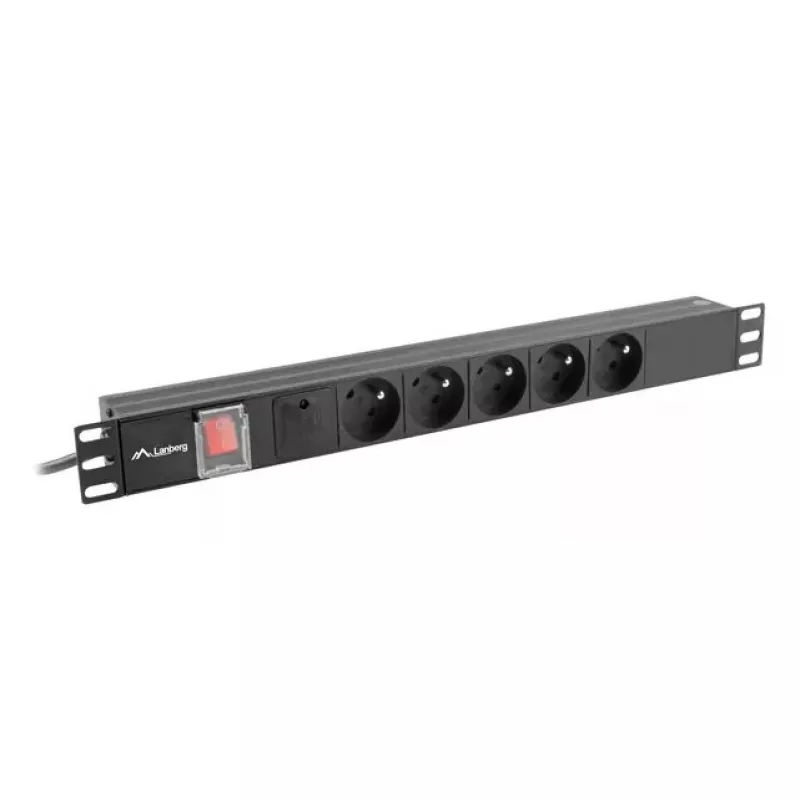

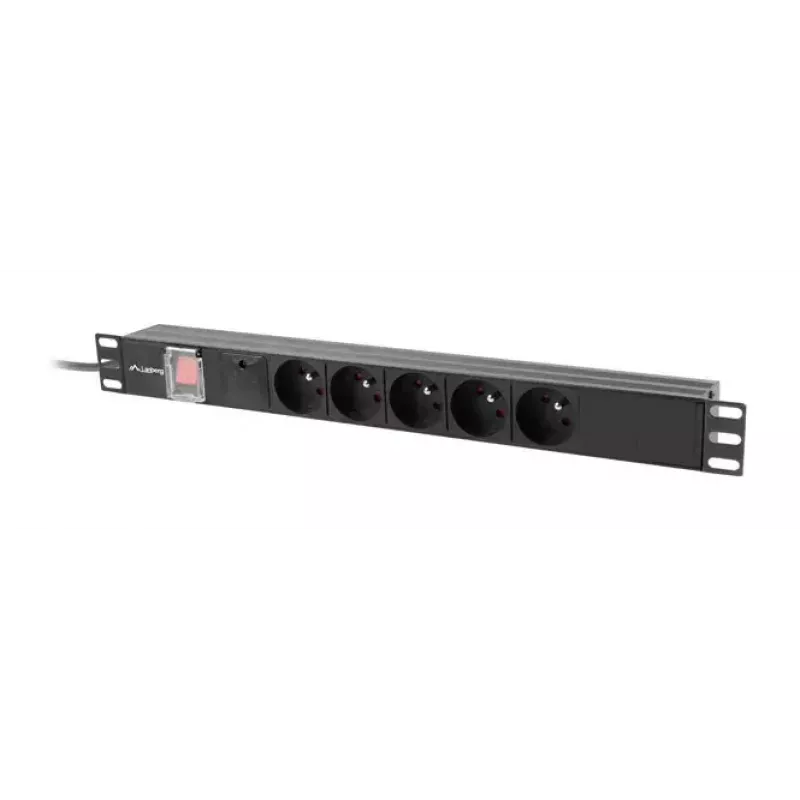

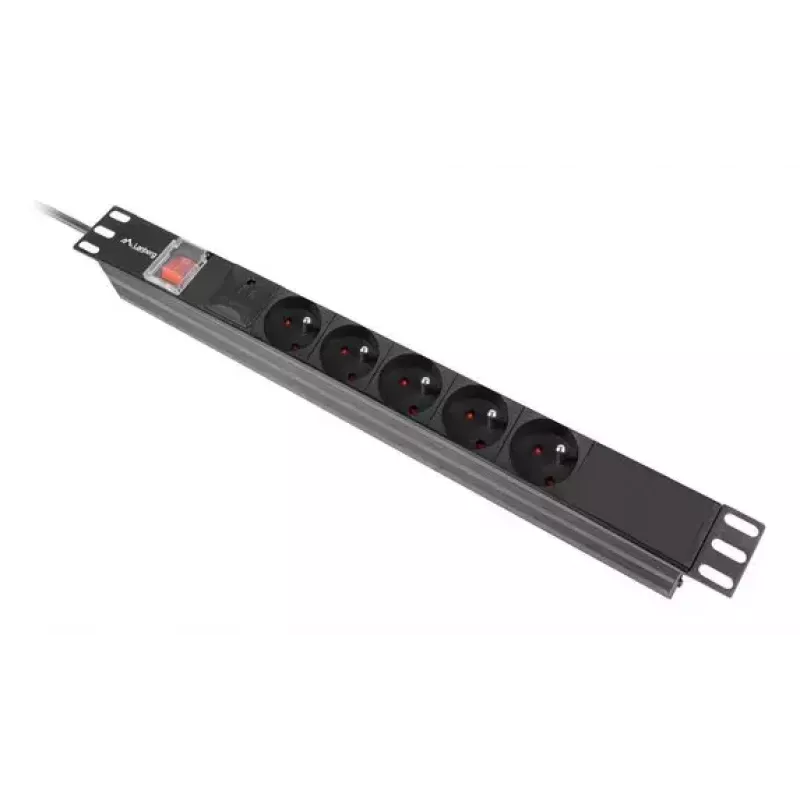

The Lanberg PDU-05E-0200-BK is a 1U rack-mounted power distribution unit designed to deliver reliable AC power to equipment in racks and cabinets. This black basic PDU provides five AC outlets and comes with a 2 m power cable. It supports a nominal input voltage of 230 V and a maximum current of 16 A, and includes built-in over-current and surge protection to help safeguard connected devices in server rooms, network cabinets and small data centers.

Advantages

The compact 1U form factor fits standard 19" and 10" racks and offers flexible horizontal mounting with removable mounting ears for normal or inverted installation. A robust power cord with sufficient conductor cross-section maintains stable power delivery under load. Integrated protective features — over-current protection and surge suppression — provide an added layer of safety for sensitive IT equipment while an LED indicates surge protection status in SPD versions. The unit’s black finish blends with typical rack environments.

Suitable for

• Small server racks and network cabinets
• Home lab and business IT installations
• Edge and branch office equipment racks
• Power distribution for switches, routers and small servers

Key specifications

• Form factor: 1U horizontal rack-mount
• Number of AC outlets: 5
• Nominal input voltage: 230 V
• Maximum current: 16 A

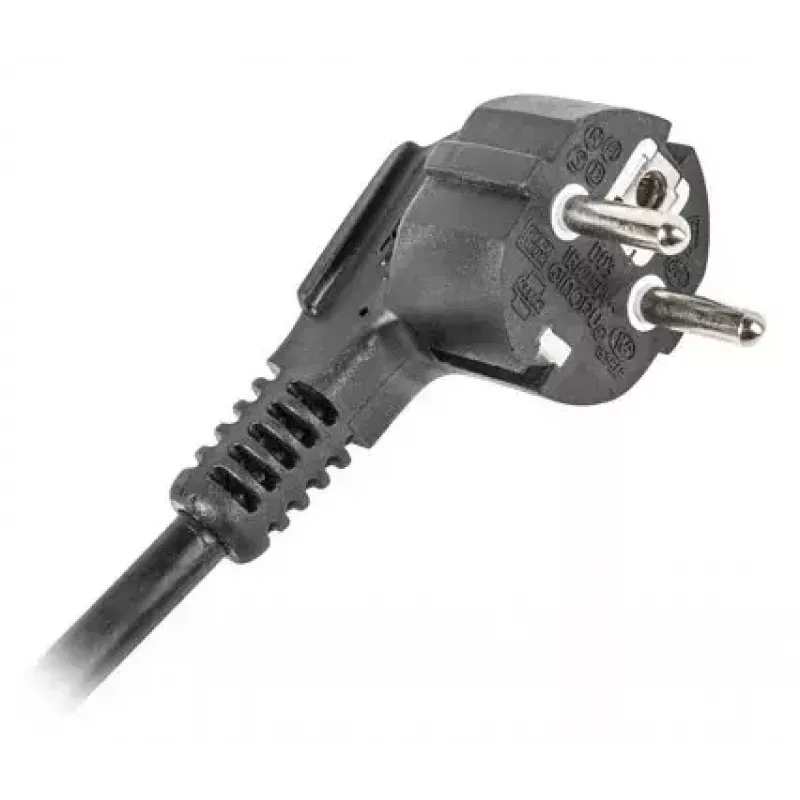

• Cable length: 2 m

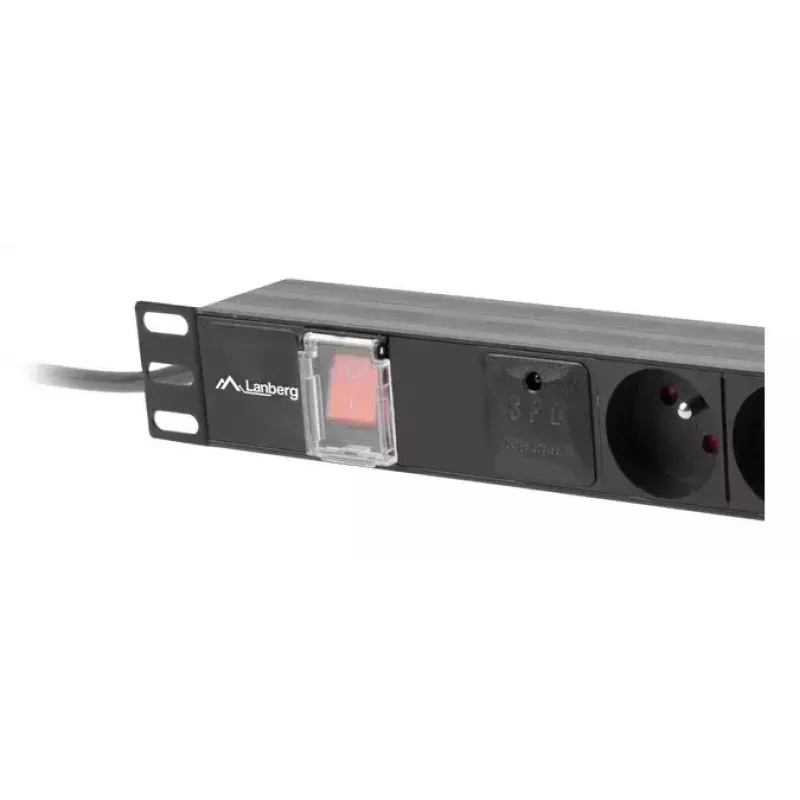

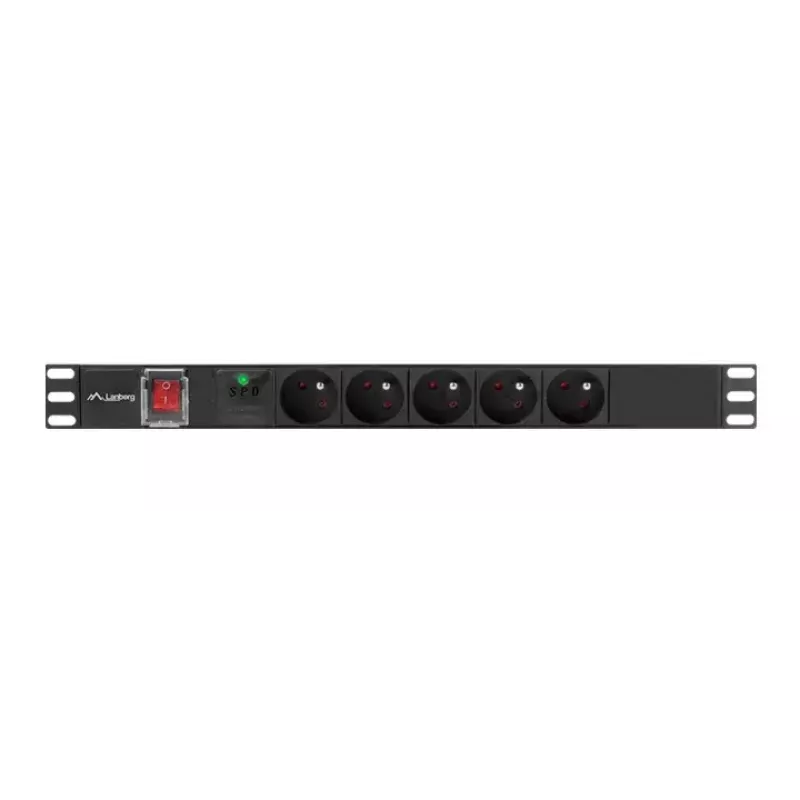

• Protection features: over-current protection and surge suppression (SPD model indicator LED)
• Colour: Black
• Weight: 0.76 kg
• PDU type: Basic

How to use

Mount the PDU horizontally in a 1U space of a compatible 19" or 10" rack using the supplied or detachable mounting ears; inversion of the unit is possible if required by rack layout. Connect the power cord to a properly rated 230 V AC supply capable of delivering up to 16 A. Plug equipment into the five AC outlets, ensuring the combined current draw does not exceed the device’s 16 A rating. If the unit includes surge protection, verify the protection status LED after powering on and periodically during maintenance.

Recommendations

Place the PDU on a dedicated circuit with appropriate upstream protection and avoid daisy-chaining multiple PDUs. Distribute high-current devices across outlets to prevent local overloading, and perform periodic visual checks of cable condition and surge protection indicator to ensure ongoing safe operation.
