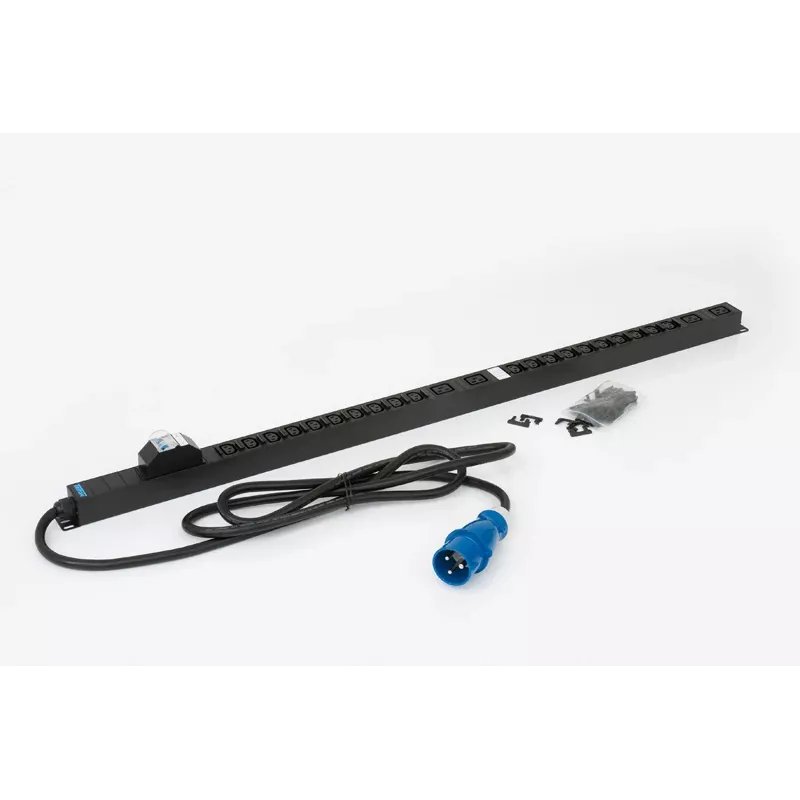

PDU vertical para rack TRITON RAB-PD-X53-A1, unidad de distribución de energía trifásica 400V 32A de 24 salidas, 20x C13 + 4x C19, conector macho CEE 32A, 22kW, 0U, Negro

This vertical 0U rack power distribution unit delivers 22 kW of three-phase power to high-density server enclosures via 24 locking outlets—20 IEC C13 and 4 IEC C19—fed by a rugged CEE 32A plug. The aluminum housing mounts flush in the rear of any 19-inch rack, conserving valuable horizontal space while keeping power exactly where it is needed.

Advantages

The 3P+N+PE input with a 32A main circuit breaker protects connected equipment from overloads and short circuits. A 3-meter cable reaches distant power drops, and the black anodized aluminum profile dissipates heat efficiently. The power LED gives instant status confirmation, and the vertical orientation simplifies cable routing in dense installations.

Suitable for

• Data centers and server rooms with 400V three-phase infrastructure
• Network cabinets and enclosures requiring high outlet density
• IT environments needing reliable power distribution for blade servers, switches, and storage arrays
• Industrial automation racks with mixed C13/C19 equipment

Key specifications

• Input: CEE 32A (5-pin), 400V AC, 32A, 50/60 Hz, 3-phase + neutral + earth
• Outputs: 20x IEC 60320 C13 (10A each) + 4x IEC 60320 C19 (16A each)
• Maximum power: 22 kW
• Mounting: 0U vertical, 19-inch rack, aluminum profile
• Cable length: 3 m
• Protection: main circuit breaker, power LED
• Operating temperature: -5°C to +45°C; humidity 10%–90% non-condensing
• Certifications: CE, RoHS

Recommendations

For maximum reliability, pair this PDU with a three-phase UPS and use C13/C19 locking cables to prevent accidental disconnection. Verify that your rack has rear vertical mounting rails and that the 32A CEE socket is installed by a qualified electrician.
