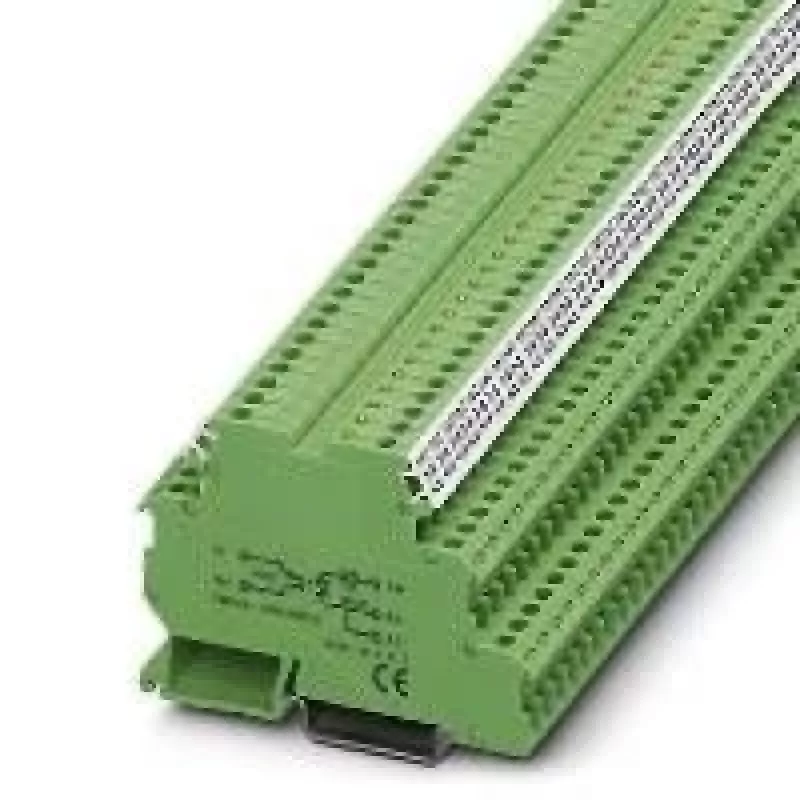

Phoenix Contact DEK-OV- 24DC/ 24DC/ 3/AKT borne relé semiconductor 2964296

The DEK-OV- 24DC/ 24DC/ 3/AKT solid-state relay terminal from Phoenix Contact provides a compact, wear-free switching solution for DC loads up to 100 mA. Unlike electromechanical relays, it uses a MOSFET output for silent, bounce-free operation and a long service life. The 6.2 mm wide housing saves space on the DIN rail while the screw connection ensures secure wiring.

Highlights

• Nominal input voltage: 24 V DC (range 19.2 V DC to 28.8 V DC)
• Output: 24 V DC, max. 100 mA, MOSFET (N-channel)
• Switching frequency up to 300 Hz, response time < 100 µs
• Yellow LED status indicator
• Mounting on DIN rail NS 35/7,5 or NS 35/15
• Operating temperature: -20 °C to 60 °C
• Insulation voltage: 2.5 kV AC between input and output

In daily use

This terminal is ideal for interfacing PLC outputs with small DC loads such as valves, indicators, or other control circuits. The screw terminals accept conductors up to 2.5 mm², and the plug-in bridge system allows easy potential distribution across multiple terminals.

Full specifications

• Input current (nominal): 7 mA at 24 V DC
• Output voltage range: 3 V DC to 33 V DC
• Number of channels: 1
• Connection method: Screw connection
• Protection class: IP20

Final note

With its solid-state design and narrow footprint, the DEK-OV- 24DC/ 24DC/ 3/AKT is a reliable choice for high-frequency DC switching in industrial control panels.
