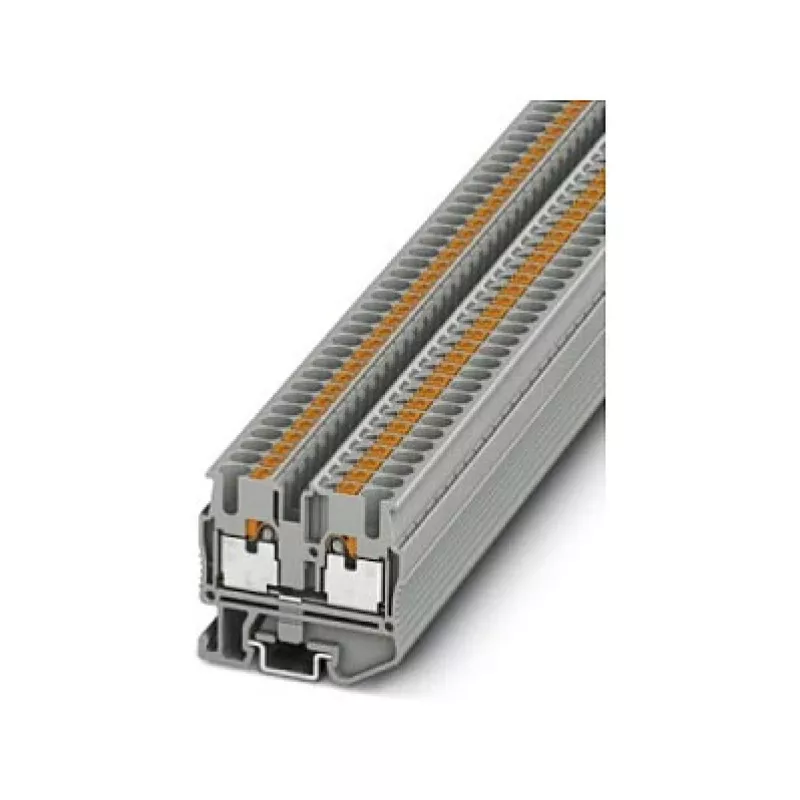

Phoenix Contact MPT 2.5 mini borne de paso, conexión push-in, 2,5 mm², 500 V, 24 A, gris

For compact control cabinet wiring where space is at a premium, the Phoenix Contact MPT 2.5 mini feed-through terminal block delivers a push-in connection that speeds up installation without sacrificing reliability. Unlike screw-clamp terminals that require torque checks, this block accepts solid or stranded conductors with a simple push, making it ideal for high-volume panel building and automated assembly.

Highlights

• Push-in connection technology for tool-free wiring of solid and stranded conductors
• Compact mini design saves space on DIN rail NS 35/7.5, NS 35/15, or NS 32
• Rated for 500 V and 24 A according to IEC, suitable for industrial control circuits
• Grey PA housing with UL 94 V0 flammability rating for enhanced fire safety
• Wide operating temperature range from -60 °C to 105 °C

In daily use

The MPT 2.5 streamlines termination in distribution boards, PLC interfaces, and sensor wiring. Its 8 mm stripping length is clearly marked, and the push-in mechanism grips conductors from 0.14 mm² to 4 mm² solid or 0.14 mm² to 2.5 mm² stranded. The terminal's two positions provide a clean feed-through point, while the grey housing blends with standard rail-mounted components. With pollution degree 3 and overvoltage category III, it handles harsh electrical environments confidently.

Full specifications

• Connection method: Push-in
• Number of positions: 2
• Nominal cross section: 2.5 mm²
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Colour: Grey
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C to 105 °C
• Mounting type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Stripping length: 8 mm
• Conductor cross section solid: 0.14 mm² - 4 mm²
• Conductor cross section stranded: 0.14 mm² - 2.5 mm²
• Pollution degree: 3
• Overvoltage category: III
• Standards/approvals: IEC 60947-7-1, UL, cUL, EAC, VDE

Final note

Choose the Phoenix Contact MPT 2.5 for a reliable, maintenance-free connection that reduces wiring time and enhances panel density.
