Phoenix Contact FBS 5-6 Puente de conexión de 5 polos, rojo, 24 A, paso 5,2 mm

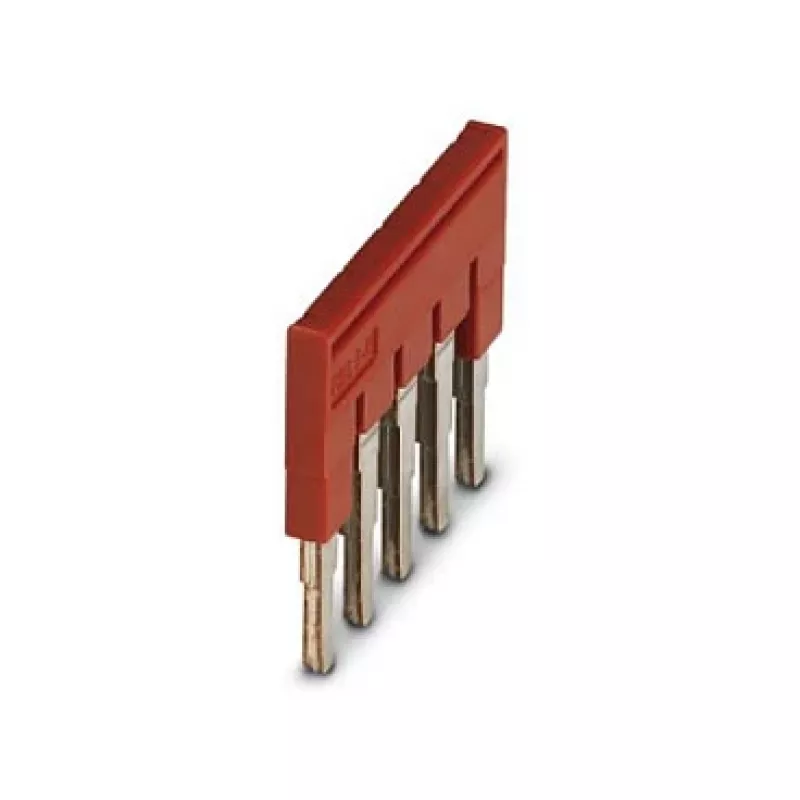

Terminal block wiring often becomes cluttered when multiple connections need to share the same potential. The Phoenix Contact FBS 5-6 plug-in bridge solves this by providing a simple, reliable way to jumper five adjacent terminal blocks in ST, UT, and PT series. This red bridge snaps directly into the terminal block cross-connection channel, eliminating the need for individual jumper wires and reducing installation time and potential wiring errors.

Who is it for

Electrical panel builders, industrial automation technicians, and maintenance engineers who work with Phoenix Contact terminal blocks will find this bridge indispensable. It is especially useful in control cabinets where space is limited and neat, consistent potential distribution is required across multiple terminals.

Main features

• 5-position plug-in bridge for commoning five adjacent terminals
• Compatible with Phoenix Contact ST, UT, and PT series terminal blocks
• High current rating of 24 A and surge voltage rating of 6 kV
• Made from flame-retardant polyamide (UL 94 V0) with copper contacts
• Wide operating temperature range from -60 °C to 105 °C
• Compact design with 5.2 mm pitch, matching standard terminal spacing

Specifications

• Brand: Phoenix Contact
• Model: FBS 5-6
• MPN: 3030349
• EAN: 4017918188801
• Product type: Plug-in bridge
• Number of positions: 5
• Pitch: 5.2 mm
• Maximum current: 24 A
• Rated surge voltage: 6 kV
• Pollution degree: 3
• Overvoltage category: III
• Insulating material: PA (Polyamide)
• Contact material: Copper
• Colour: Red
• Flammability rating: UL 94 V0
• Compatibility: Phoenix Contact ST, UT, PT series terminal blocks
• Mounting type: Plug-in
• Operating temperature: -60 °C to 105 °C

Tips

For best results, ensure the terminal blocks are clean and free of debris before inserting the bridge. The bridge can be easily removed with a standard screwdriver if reconfiguration is needed.
