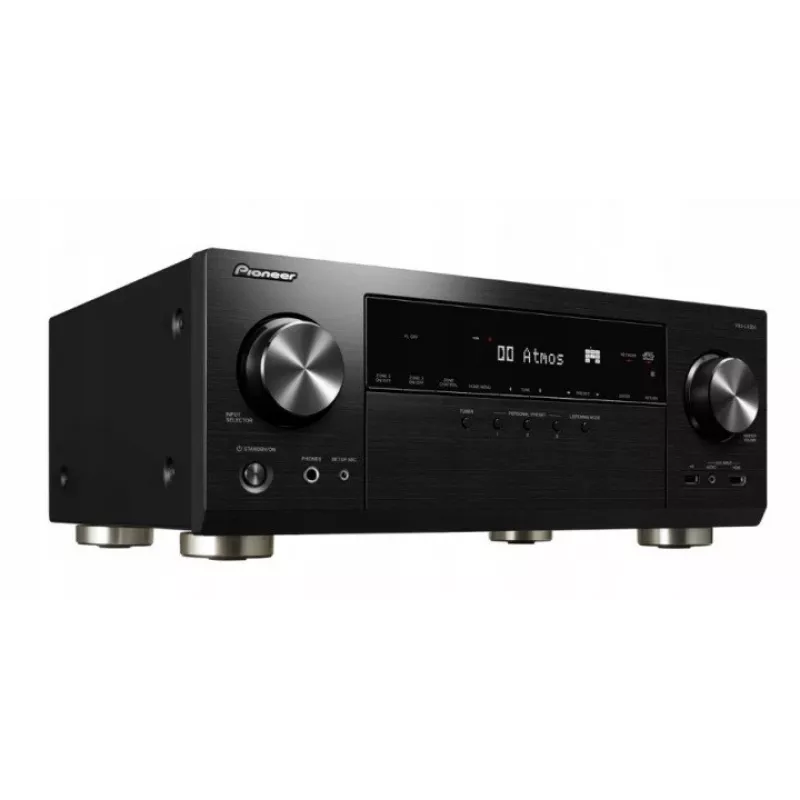

Pioneer VSX-LX505 receptor AV de red 9.2 canales - Negro

The Pioneer VSX-LX505 stands apart from typical AV receivers by combining 9.2-channel amplification with 11.2-channel processing and Dirac Live room correction, delivering a truly immersive home cinema experience. Its HDMI 2.1 board supports 8K/60Hz and 4K/120Hz pass-through, making it ideal for next-gen gaming and high-frame-rate content.

Highlights

• 9.2 channels (120W per channel at 8 ohms) with 11.2-channel pre-outs for flexible speaker configurations
• HDMI 2.1 with 7 inputs and 2 outputs, supporting 8K/60Hz, 4K/120Hz, HDR10+, HLG, Dolby Vision, VRR, ALLM, and QFT
• Dolby Atmos, DTS:X, and IMAX Enhanced decoding for object-based surround sound
• Dirac Live full-bandwidth room correction for precise acoustic calibration
• Built-in Wi-Fi, Bluetooth, Chromecast built-in, AirPlay 2, DTS Play-Fi, and Roon Ready for versatile streaming
• Works with Google Assistant and Amazon Alexa for voice control
• Phono input (MM) for turntable connection and front USB for media playback
• Multi-room audio with powered Zone 2/3 outputs

In daily use

Set up is straightforward with Dirac Live guiding you through microphone-based calibration, ensuring optimal sound for your room. Stream music effortlessly from your smartphone via AirPlay 2 or Chromecast, or use voice commands to control playback. The front HDMI input is convenient for temporary connections like gaming consoles or cameras, while the 8K upscaling enhances legacy content. The receiver runs cool even during extended movie sessions, and the on-screen menu is intuitive.

Full specifications

• Channels: 9.2 (11.2-channel processing)
• Power output: 120W per channel (8 ohms, 20Hz-20kHz, 0.08% THD, 2-ch driven)
• HDMI: 7 inputs / 2 outputs (Main/Sub), HDMI 2.1, 8K/60Hz, 4K/120Hz pass-through
• HDR support: HDR10+, HLG, Dolby Vision
• Audio decoding: Dolby Atmos, DTS:X, IMAX Enhanced
• Room correction: Dirac Live (Full Bandwidth)
• Wireless: Wi-Fi (dual-band), Bluetooth
• Streaming: Chromecast built-in, AirPlay 2, DTS Play-Fi, Roon Ready
• Voice control: Works with Google Assistant, Amazon Alexa
• Phono input: Yes (MM)
• USB: Yes (front)
• Pre-outs: 11.2-channel
• Video upscaling: Up to 8K
• Gaming features: VRR, ALLM, QFT
• Multi-room: Zone 2/3 powered
• DAC: AKM AK4458 (384kHz/32-bit)
• Colour: Black

Final note

With its future-ready HDMI 2.1 connectivity, advanced room correction, and extensive streaming options, the VSX-LX505 is a solid foundation for a high-performance home theatre that will satisfy both movie enthusiasts and gamers.
