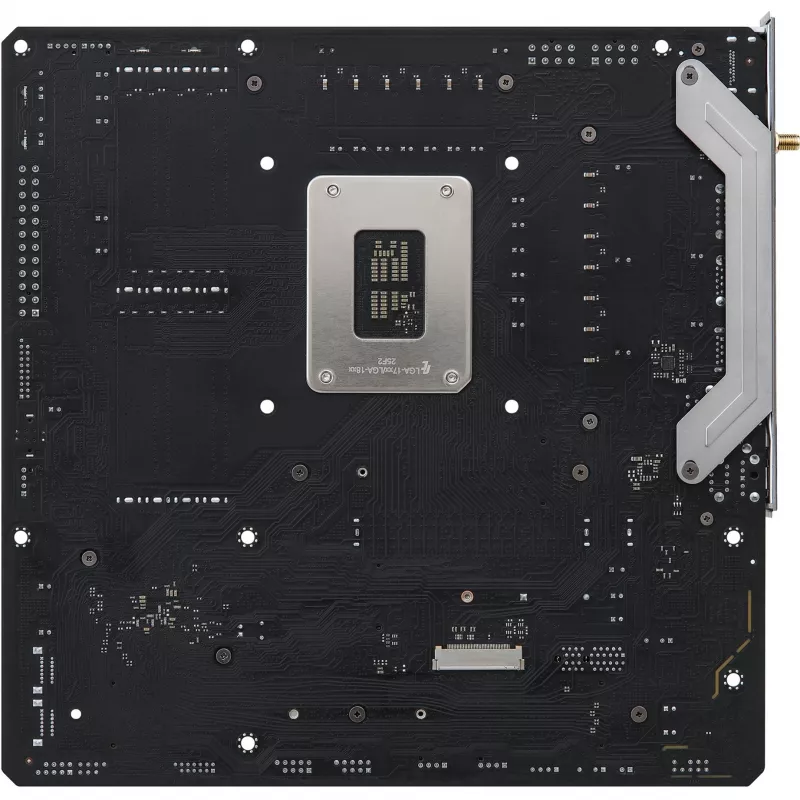

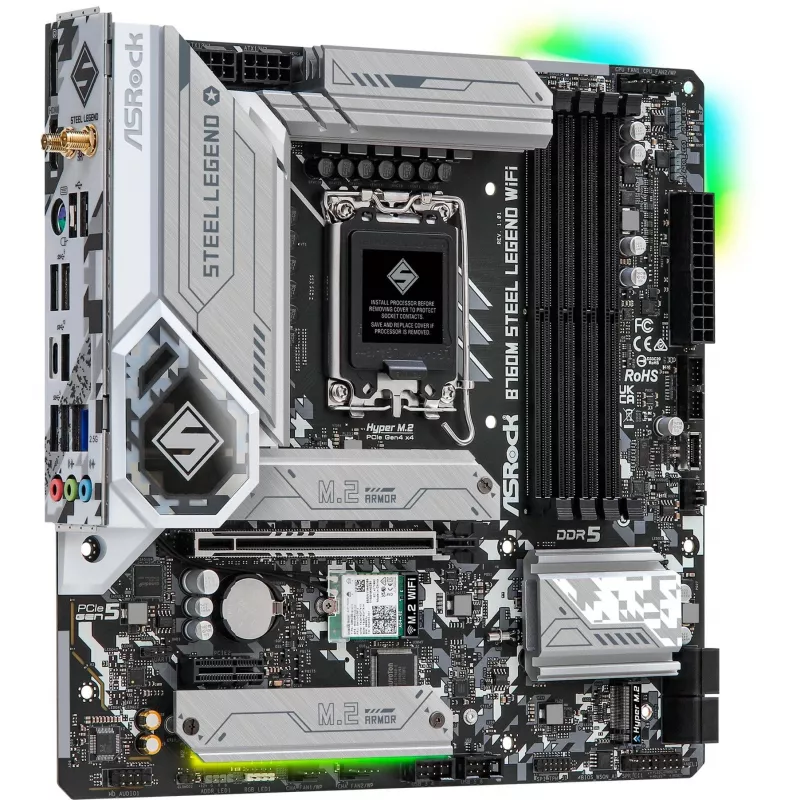

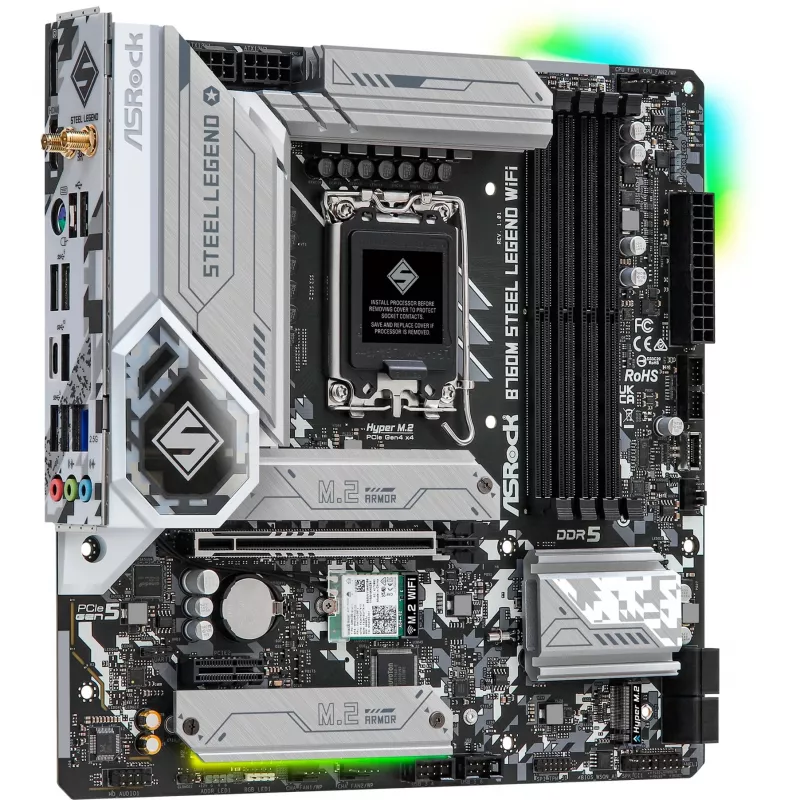

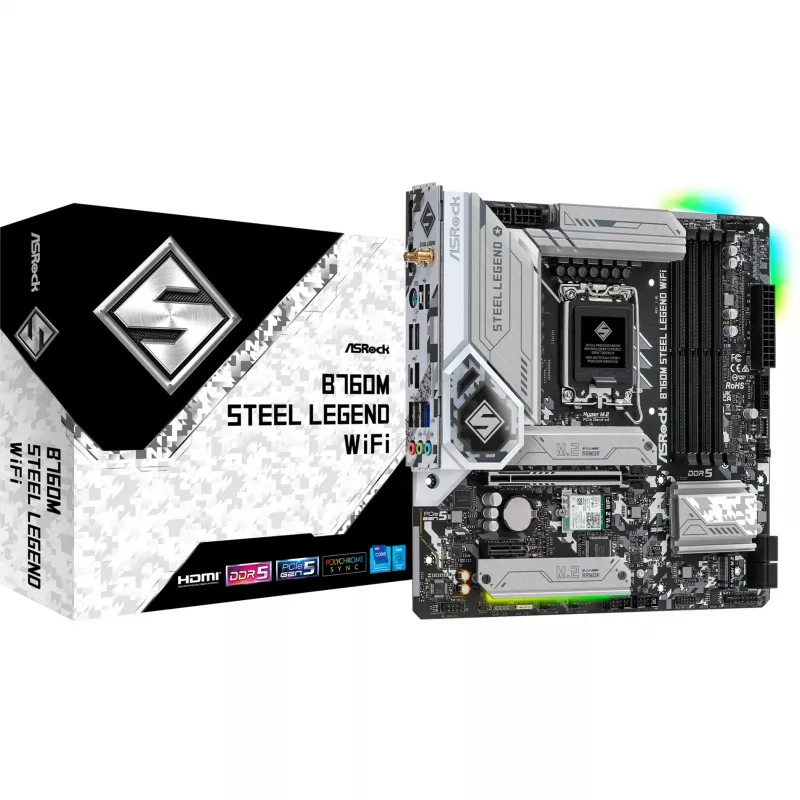

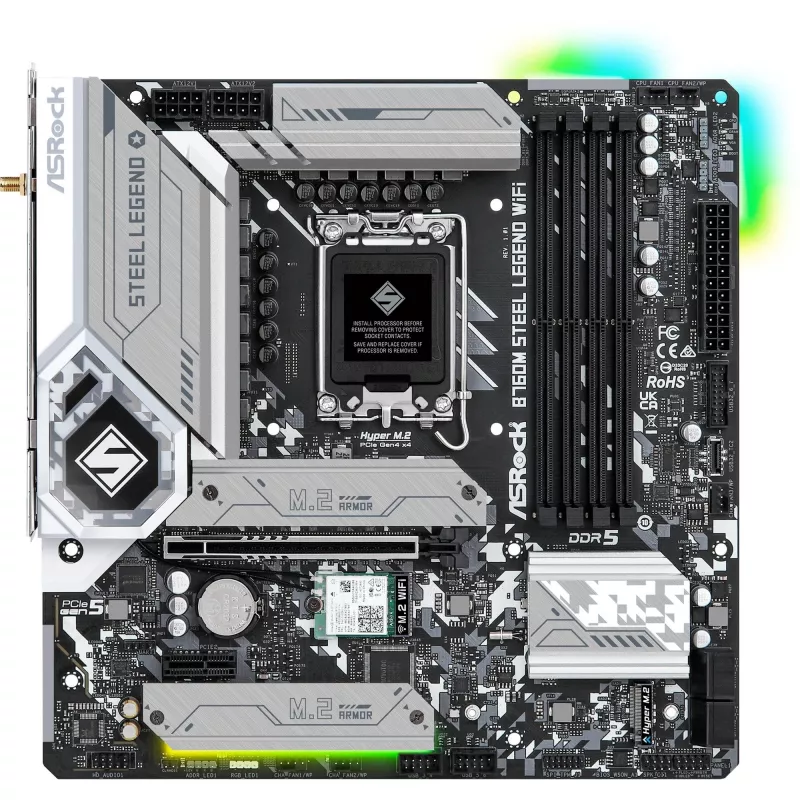

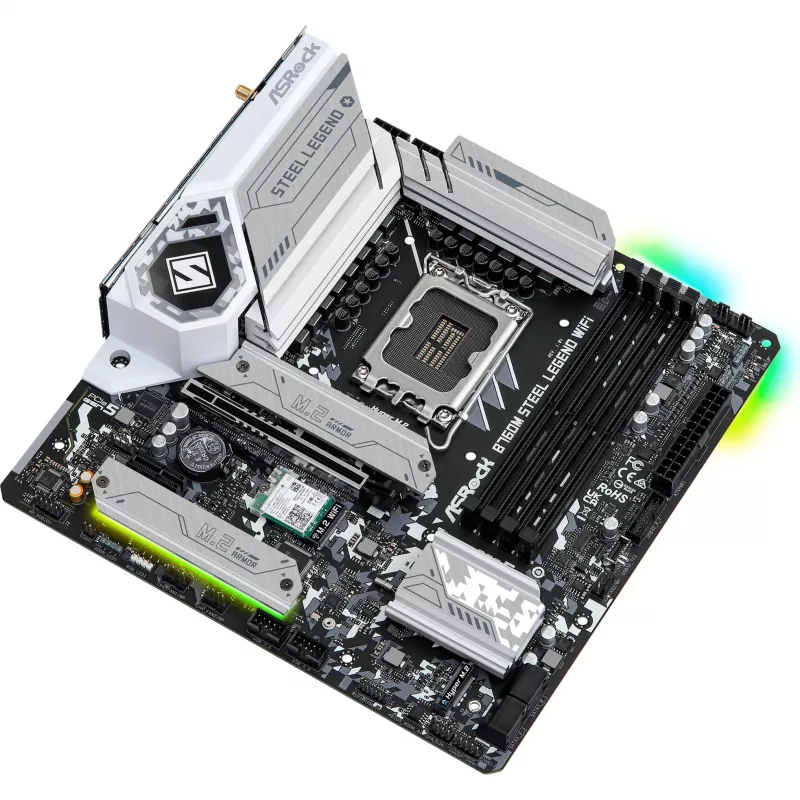

Placa base ASRock B760M Steel Legend WiFi — Intel B760, LGA 1700, micro ATX, DDR5, 4 DIMM, 128GB, Wi‑Fi 6E, 2.5Gb LAN

The ASRock B760M Steel Legend WiFi is a micro ATX motherboard with the Intel B760 chipset and LGA 1700 socket, designed for mainstream users and enthusiasts seeking stability and reliable daily performance. It supports DDR5 memory up to 128 GB across four DIMM slots, PCIe 5.0 for next-generation graphics, PCIe Gen4 x4 M.2 storage, 2.5 Gb/s LAN and Wi‑Fi 6E connectivity. The board uses robust materials and multi-layer/2 oz copper PCB construction to improve thermal characteristics and power delivery for CPU and memory overclocking.

Advantages

The motherboard features a 12+1+1 power phase design with integrated Dr.MOS power stages for improved current delivery and thermal performance, a 6-layer PCB and 2 oz copper inner layers for stable signal traces and energy efficiency, and reinforced SMT PCIe 5.0 steel slot for mechanical support and signal stability. Built-in audio processing (Nahimic), Polychrome RGB headers, dual USB 3.2 Gen2 Type-A/Type-C ports on the rear I/O plus a front-panel USB 3.2 Gen2 Type-C header, and an M.2 Key‑E module cap for antenna retention add practical functionality for many PC builds.

Suitable for

• Mainstream and enthusiast desktop builds using Intel 12th–13th gen Core processors (LGA 1700)
• Compact micro ATX systems that require high-speed storage (PCIe Gen4 x4 M.2) and PCIe 5.0 graphics support
• Content creators and gamers needing faster networking via 2.5 Gb/s LAN and Wi‑Fi 6E
• Users who want DDR5 memory overclocking with XMP/EXPO pre-tested profiles

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• Socket: LGA 1700
• Memory: DDR5, 4 DIMM slots, up to 128 GB, XMP/EXPO support
• Power design: 12+1+1 phases with Dr.MOS
• PCB: 6-layer with 2 oz copper inner layers
• PCIe: PCIe 5.0 reinforced steel slot, SMT-mounted slot
• Storage: PCIe Gen4 x4 M.2 support, SATA III ports
• Networking: Dragon 2.5 Gb/s LAN, Wi‑Fi 6E (802.11ax)
• USB: Dual rear USB 3.2 Gen2 (Type-A + Type-C), front USB 3.2 Gen2 Type-C header
• Audio: Nahimic audio technologies (noise suppression, echo cancellation, voice stabilizer, Sound Tracker)
• Extras: Polychrome RGB headers, eDP connector for ASRock 13.3" Side Panel Kit, Auto Driver Installer, flexible integrated I/O shield

How to use

Install the ASRock B760M Steel Legend WiFi into a compatible micro ATX chassis and mount an LGA 1700 CPU with the appropriate cooler. Populate DDR5 DIMMs into the memory slots according to the motherboard manual to enable dual-channel operation and, if desired, enable Intel XMP or AMD EXPO profiles in BIOS to apply pre-tested overclock settings. Connect storage devices to the M.2 slots or SATA III ports and install graphics cards into the reinforced PCIe 5.0 slot. Attach antennas to the M.2 Key‑E connector (use the module cap to secure) for Wi‑Fi 6E, and connect peripherals via rear and front USB ports. After installing an operating system, use the Auto Driver Installer to download and install the required drivers automatically.

Recommendations

For stable DDR5 memory handling, disconnect AC power before inserting or removing DIMMs; the board includes a protection circuit but safe handling reduces risk. Ensure BIOS is updated to the latest version for best compatibility with CPUs, memory XMP/EXPO profiles and PCIe 5.0 devices. Use adequate cooling and appropriate power supply to support overclocking and high‑performance components.
