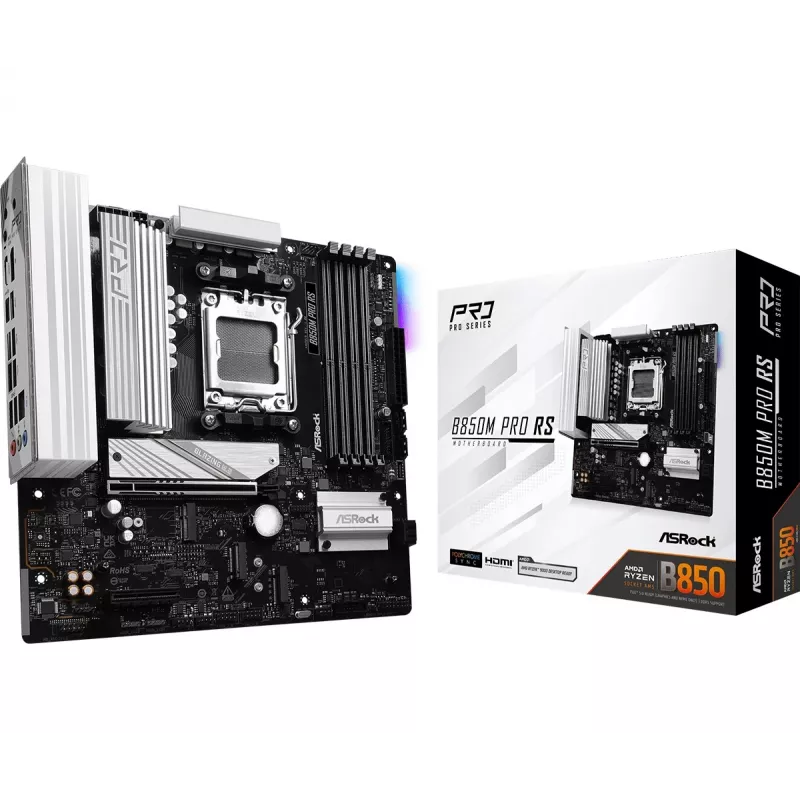

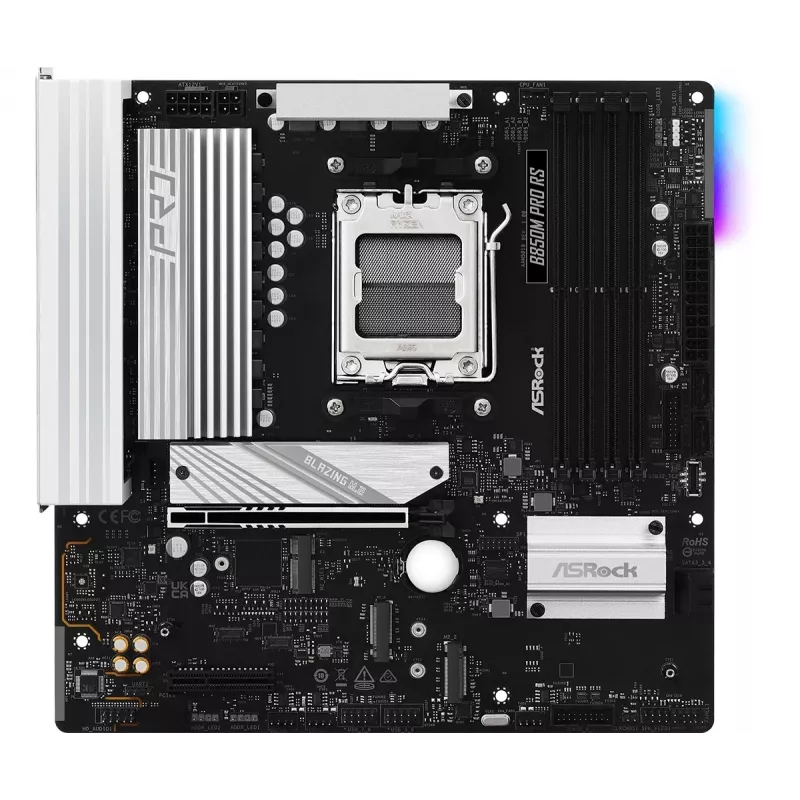

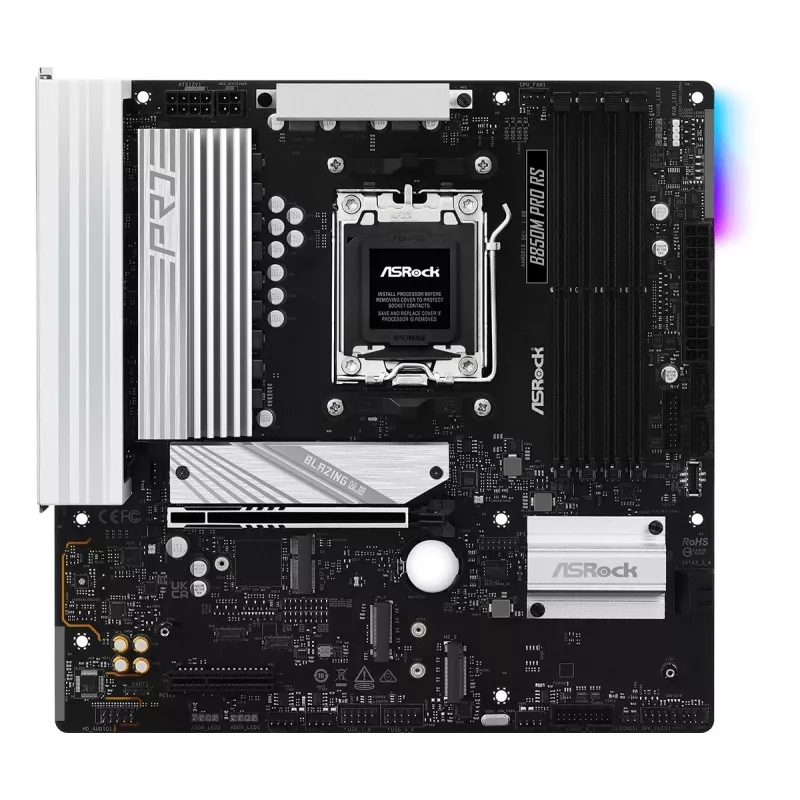

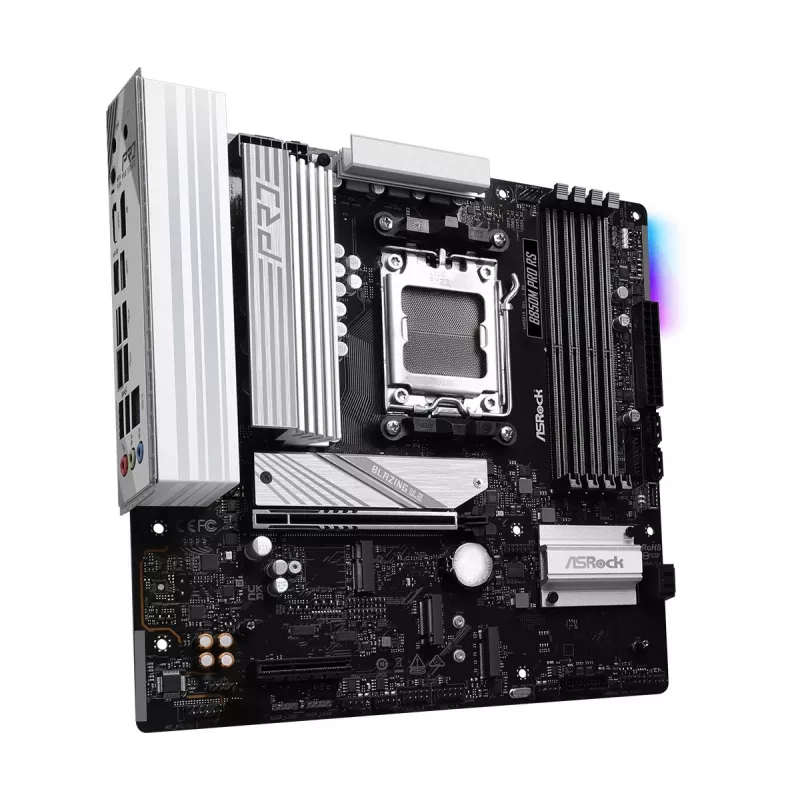

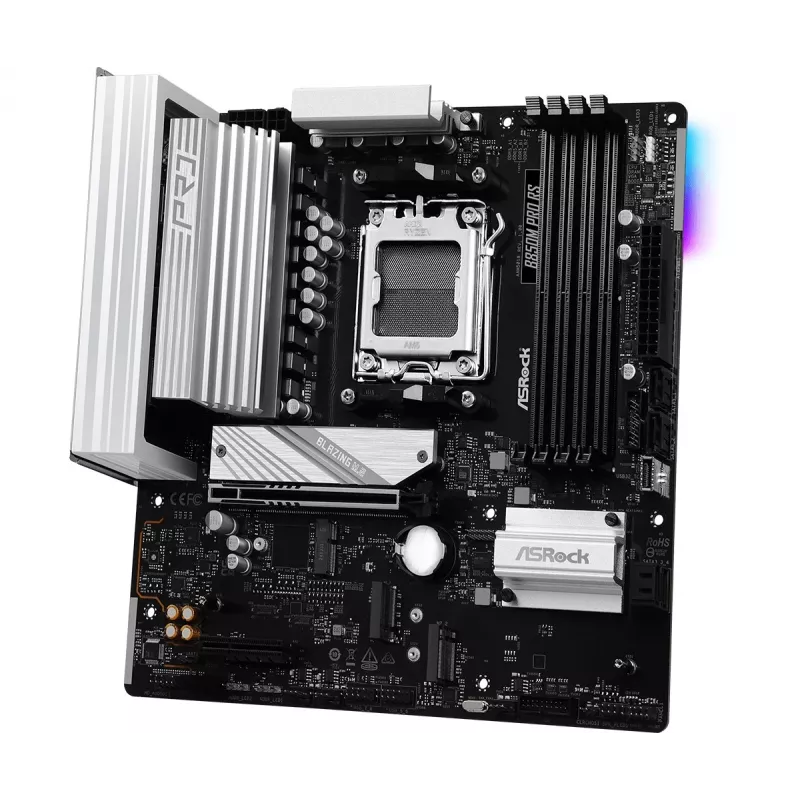

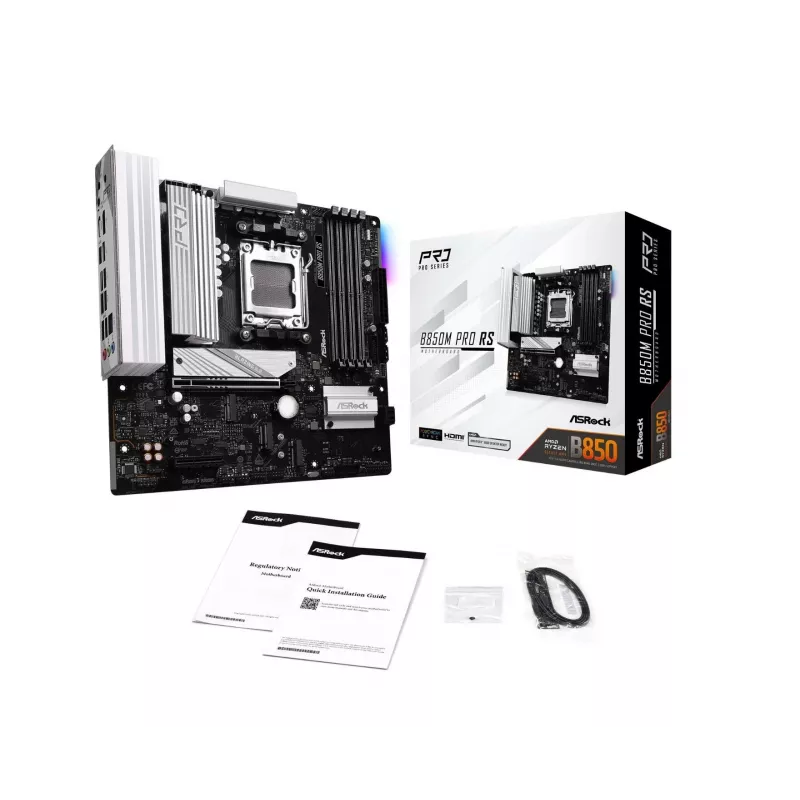

Placa base ASRock B850M Pro RS AM5 Micro-ATX

The ASRock B850M Pro RS is a Micro-ATX motherboard built on the AMD B850 chipset, designed to support AMD Ryzen 7000, 8000, and 9000 Series processors via the Socket AM5 platform. It features DDR5 memory support with four DIMM slots, enabling high-speed memory configurations up to 8000 MHz (OC) and a maximum capacity of 256 GB. The board offers robust storage and expansion options, including PCIe 5.0 and PCIe 4.0 slots, multiple M.2 sockets, and SATA III connectors, all housed in a compact Micro-ATX form factor.

Key features

• Socket AM5 with AMD B850 chipset, compatible with AMD Ryzen 7000, 8000, and 9000 Series processors
• 4 x DDR5 DIMM slots supporting up to 256 GB and memory speeds up to 8000 MHz (OC)
• 1 x PCIe 5.0 x16 slot and 1 x PCIe 4.0 x4 slot for high-performance graphics and expansion cards
• 1 x Blazing M.2 socket (PCIe Gen5x4) and 2 x Hyper M.2 sockets (PCIe Gen4x4) for ultra-fast NVMe SSDs
• 4 x SATA3 6.0 Gb/s connectors with RAID 0, 1, 10 support
• 2.5 Gigabit LAN for high-speed wired networking
• 7.1 CH HD Audio with Realtek ALC897 codec and Nahimic Audio enhancement
