Tarjeta gráfica ASRock Intel Arc B570, 10 GB GDDR6, 160 bits, PCIe 4.0 x8, 3x DisplayPort 2.1, 1x HDMI 2.1a

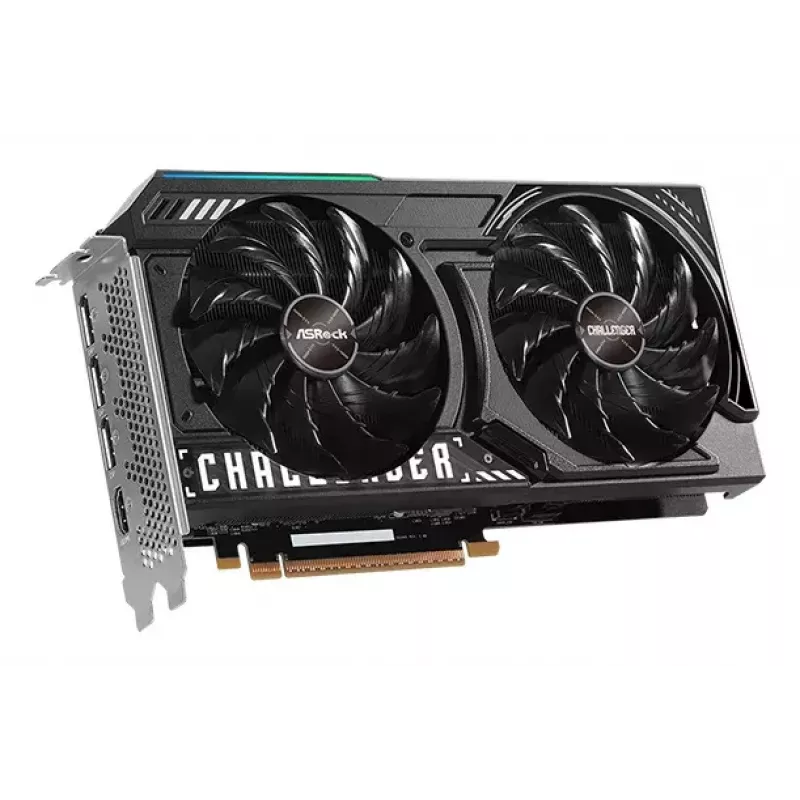

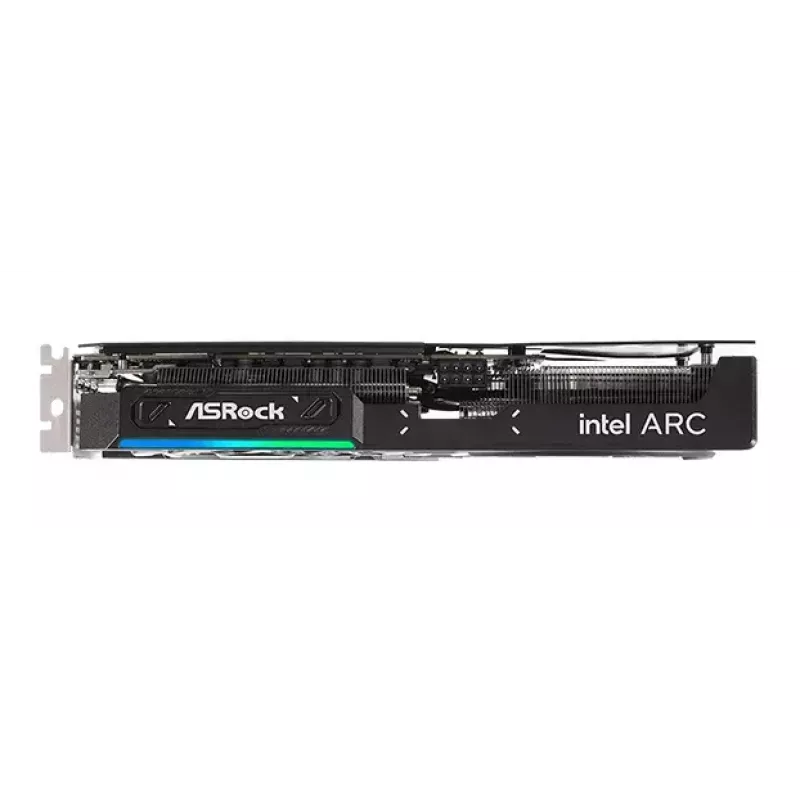

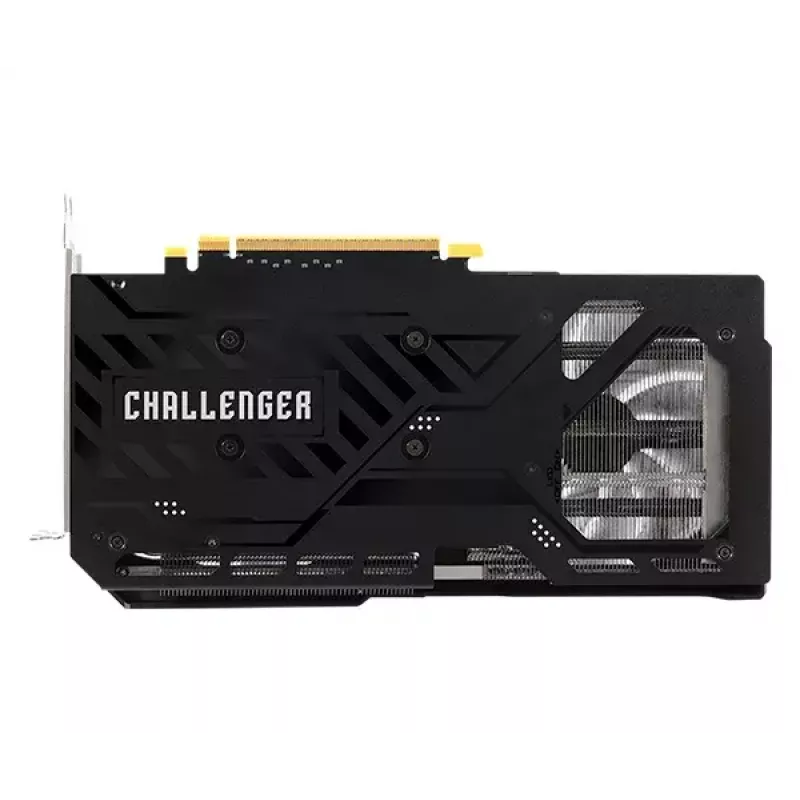

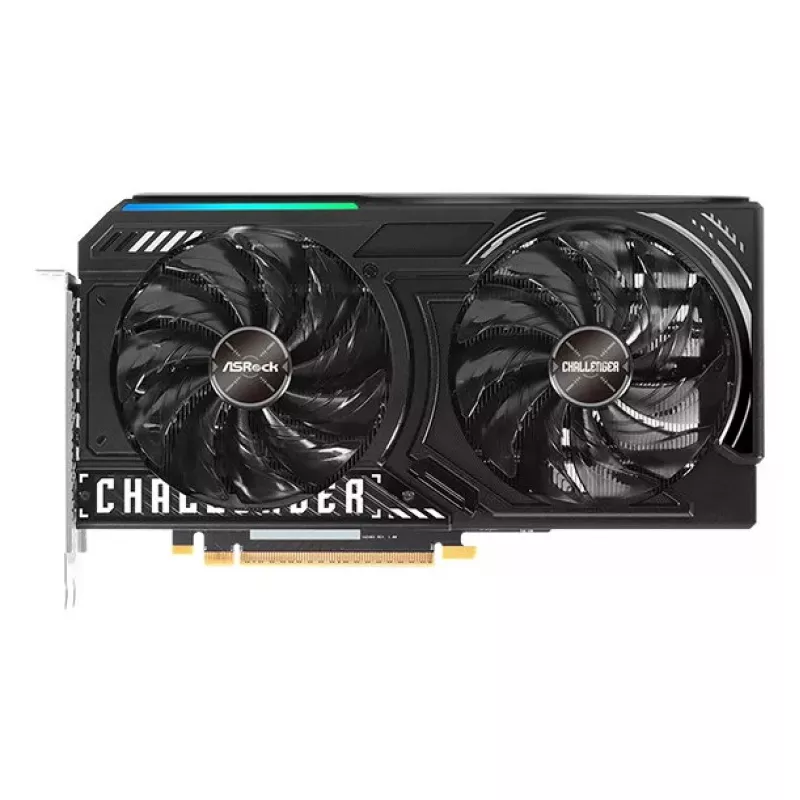

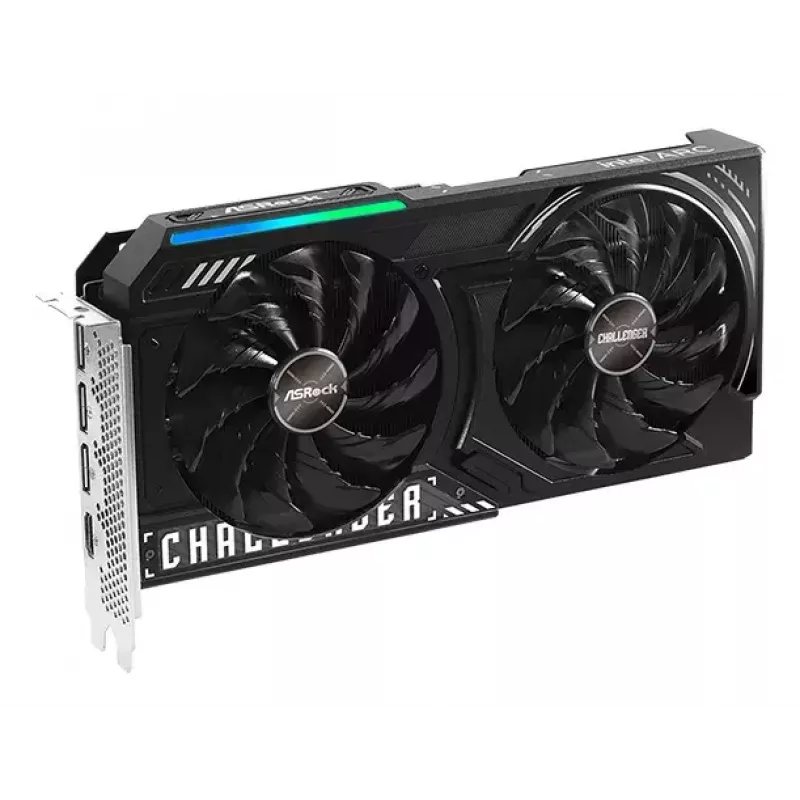

The ASRock Challenger Intel Arc B570 10GB OC GDDR6 is a discrete graphics card based on the Intel Arc B570 GPU with a boost frequency of 2600 MHz. It includes 10 GB of GDDR6 memory on a 160-bit bus, supports up to 7680 x 4320 resolution, and is compatible with DirectX 12 Ultimate and OpenGL 4.6. The card uses an active dual-fan cooling solution, a metal backplate and multi-color LED indicator to balance cooling performance, structural rigidity and visual customization.

Advantages

The dual-fan design and Striped Axial Fans improve airflow and cooling efficiency while enabling 0 dB silent operation at low temperatures. A stylish metal backplate and multi-color LED indicator provide a solid build and customizable appearance. Thermal improvements such as nano thermal paste, consolidated heatpipes, high-density metal welding and precise screw torque ensure efficient heat transfer and stable cooler mounting. Power delivery and reliability are supported by Japanese SP-Cap capacitors, SPS (Smart Power Stage) Dr.MOS, premium power chokes, a 2oz copper PCB and high-density glass fabric PCB construction.

Suitable for

• Gaming at high resolutions and modern APIs (DirectX 12 Ultimate)
• Content creation and multimedia workflows requiring high-resolution output
• Systems needing a PCIe x8 4.0 compatible discrete GPU

Key specifications

• Graphics processor: Intel Arc B570
• Boost frequency: 2600 MHz
• Memory: 10 GB GDDR6
• Memory bus: 160 bit
• Maximum resolution: 7680 x 4320
• API support: DirectX 12 Ultimate, OpenGL 4.6
• Interface: PCI Express x8 4.0
• Cooling: active dual-fan with 0 dB idle mode
• Weight: 0.72 kg
• MPN / EAN: 90-GA5KZZ-00UANF / 4711581490048

How to use

Install the graphics card into a compatible motherboard PCIe x8 or x16 slot (PCIe 4.0 recommended) and secure it to the chassis. Connect any required power connectors as specified by your system and install the latest Intel Arc drivers from the manufacturer's website. Configure display outputs and multi-color LED settings using compatible software or the onboard LED switch. Ensure adequate case airflow for optimal cooling performance.

Recommendations

To maintain thermal efficiency and longevity, mount the card with correct screw torque, keep system airflow unobstructed, update drivers regularly, and use the LED switch according to your preference to avoid unnecessary power draw.
