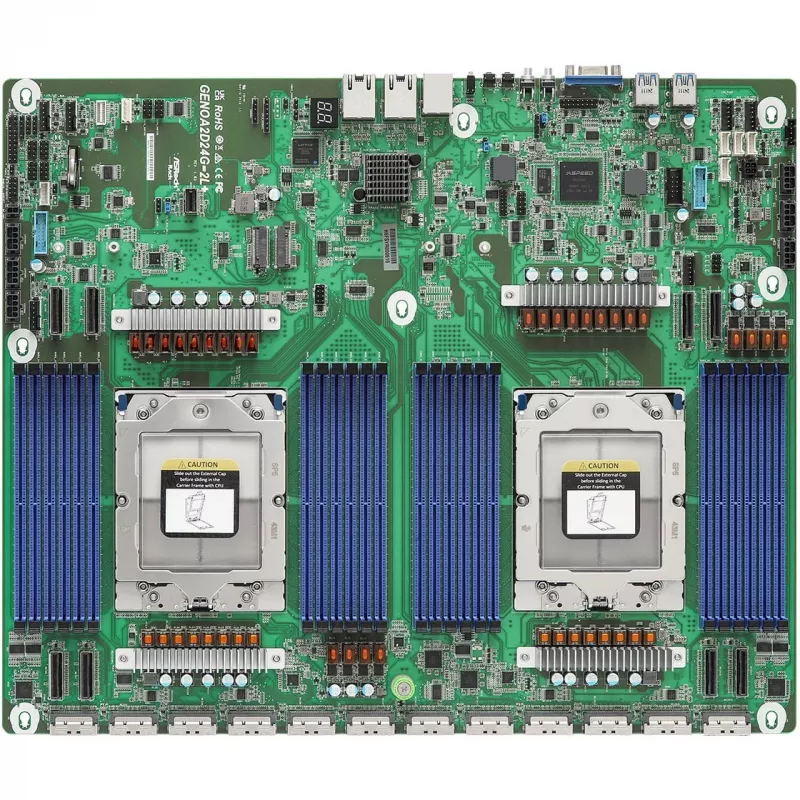

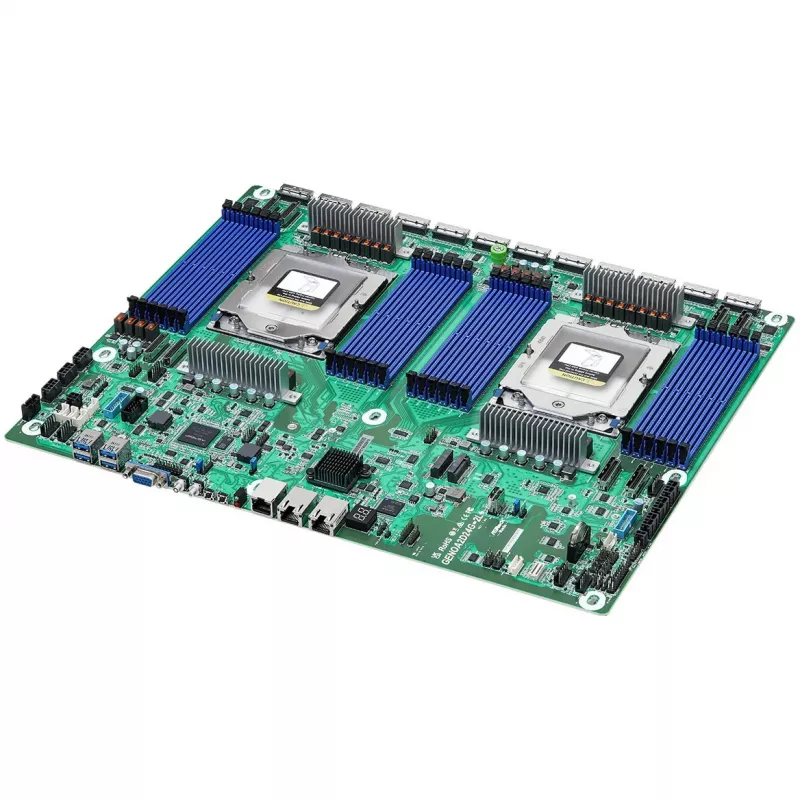

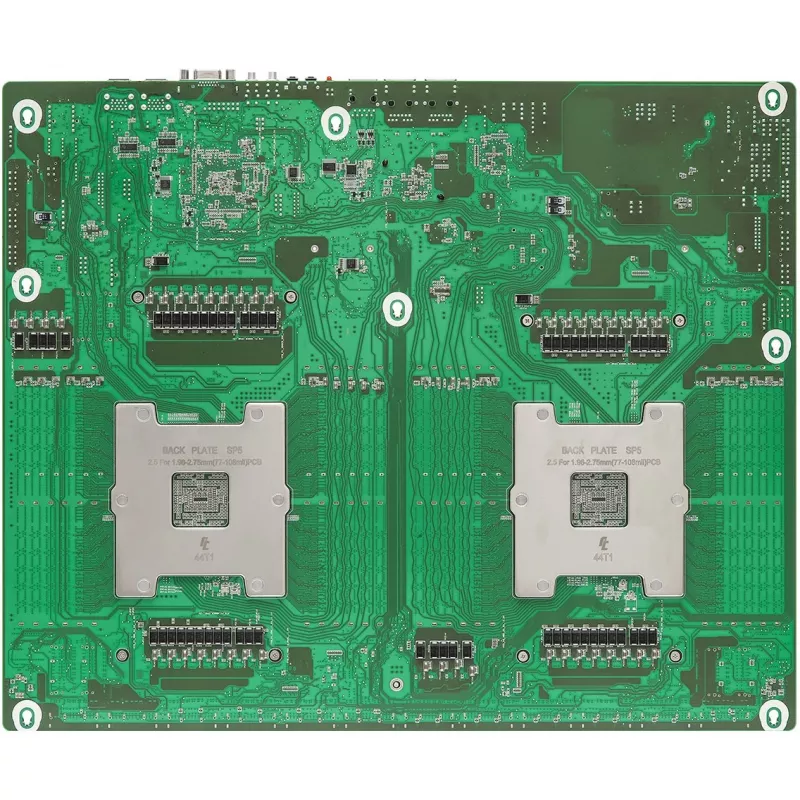

Placa base ASRock GENOA2D24G-2L+ — AMD SoC, socket SP5, ATX, 24x DDR5-DIMM, hasta 12,3 TB, 2x GbE

The Asrock GENOA2D24G-2L+ motherboard is built around an AMD SoC chipset with Socket SP5, designed for server-class systems and AMD EPYC processors. It supports DDR5-SDRAM across 24 DIMM slots for a maximum internal memory capacity of 12,288 GB and provides SATA III interfaces for connecting HDDs and SSDs. Integrated management and VGA functions are handled by the Aspeed AST2600 graphics controller with 512 MB dedicated memory, while network connectivity is supplied by a Gigabit Ethernet controller based on the Intel® I350 design. The board follows the ATX form factor and targets high-density compute and storage applications.

Advantages

The GENOA2D24G-2L+ offers high memory density through 24 DIMM slots and DDR5 support, enabling large in-memory workloads and virtualization. Integrated Aspeed AST2600 firmware and onboard graphics simplify remote management and system setup. Native SATA III interfaces provide straightforward storage connectivity for mixed HDD/SSD configurations. The inclusion of an Intel® I350-based Gigabit Ethernet controller ensures reliable wired networking performance suitable for server environments.

Suitable for

• Rack-mounted or tower servers for virtualization and database workloads
• High-memory compute tasks such as in-memory databases and analytics
• Storage servers using SATA III HDDs and SSDs
• Systems requiring remote management and out-of-band access

Key specifications

• Chipset: AMD SoC
• Processor socket: Socket SP5 (for AMD EPYC processors)
• Memory type: DDR5-SDRAM
• Number of memory slots: 24 DIMM slots
• Maximum internal memory: 12,288 GB
• Storage interface: SATA III
• Onboard graphics/controller: Aspeed AST2600 with 512 MB memory
• Network controller: Gigabit Ethernet (Intel® I350 based)
• Form factor: ATX

How to use

Install the GENOA2D24G-2L+ into a compatible ATX chassis and mount an appropriate AMD EPYC processor into the Socket SP5 following the processor and motherboard vendor instructions. Populate DDR5 DIMMs across the 24 memory slots according to the recommended memory population guidelines to achieve desired capacity and performance. Connect storage devices to the SATA III ports, and attach required power and front-panel connectors. Use the Aspeed AST2600 interface for initial BIOS setup and remote management, and configure network settings for the Intel® I350-based Gigabit Ethernet controller within the system firmware or operating system.

Recommendations

For optimal performance, populate memory channels evenly across the 24 DIMM slots using matched DDR5 modules and consult the motherboard memory QVL for supported configurations. Use quality SATA III SSDs or enterprise HDDs for storage reliability, and enable appropriate firmware and driver updates for the Aspeed AST2600 and Intel® network controller to ensure stable remote management and network operation.
