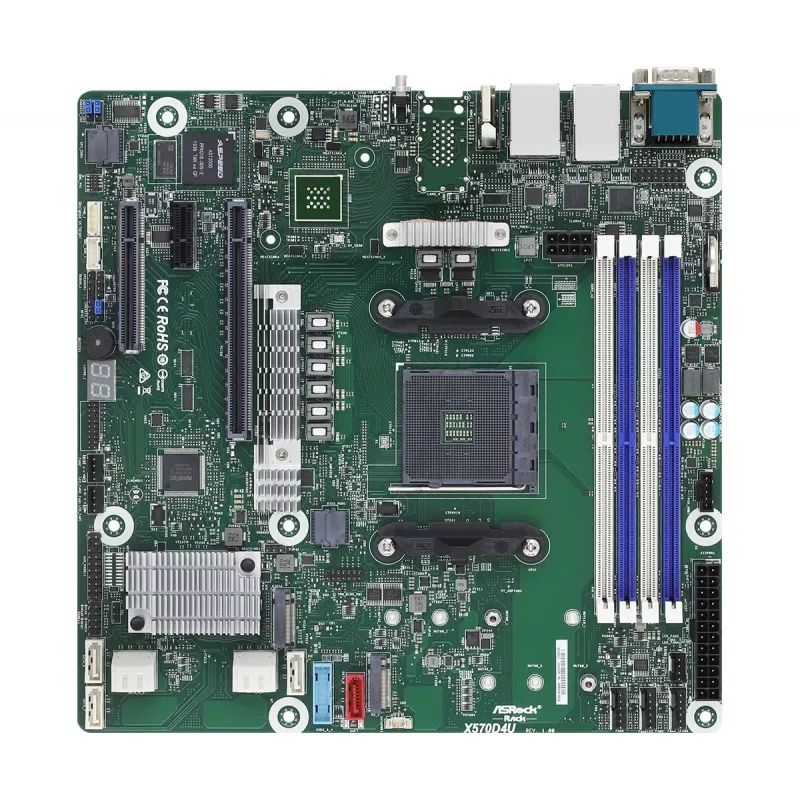

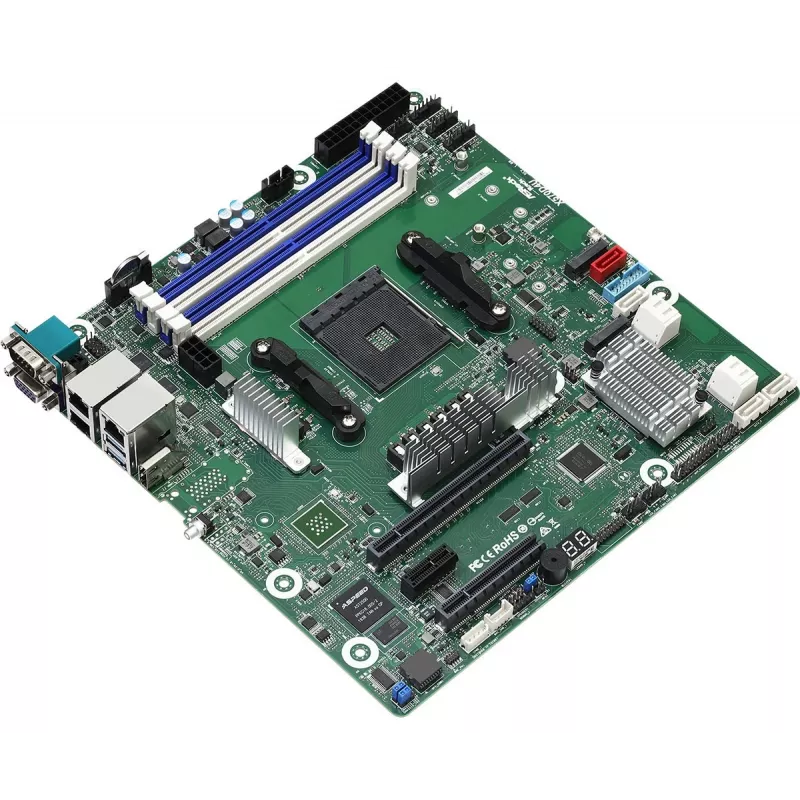

Placa base ASRock X570D4U Micro ATX — AMD X570, Zócalo AM4, 4× DIMM, DDR4, máx. 32 GB, 12× SATA III, 3× RJ-45

The Asrock X570D4U Motherboard AMD X570 Socket AM4 Micro ATX is a compact AM4-compatible mainboard designed for systems that require AMD X570 chipset features in a Micro ATX footprint. It supports DDR4-SDRAM across four DIMM slots for a maximum internal memory of 32 GB, and provides modern storage connectivity including M.2 and SATA III interfaces. Built-in ASPEED AST2500 graphics and integrated Gigabit Ethernet controllers deliver basic remote-management and network connectivity suitable for a range of workloads.

Advantages

This Micro ATX motherboard combines the AMD X570 chipset’s platform capabilities with a small form factor, enabling multi-drive RAID configurations (0, 1, 10) and offering both high-speed M.2 storage and legacy SATA III support. Four DIMM slots allow flexible memory configurations within the specified 32 GB maximum, while integrated graphics and dual Gigabit LAN controllers provide essential remote-management and network options without the immediate need for add-in cards.

Suitable for

• Compact desktop systems and small workstations where space is limited
• Home lab or light server setups requiring RAID 0/1/10 storage options
• Networked appliances or management-focused builds using integrated graphics and LAN
• Systems that need M.2 NVMe or SATA III storage alongside multiple DIMM modules

Key specifications

• Form factor: Micro ATX
• Chipset: AMD X570
• CPU socket: Socket AM4
• Memory type: DDR4-SDRAM
• Memory slots: 4 DIMM slots, maximum supported internal memory 32 GB
• Storage interfaces: M.2 and SATA III
• Supported RAID levels: 0, 1, 10
• Integrated graphics controller: ASPEED AST2500
• Network controllers: Gigabit Ethernet (Intel I210, Realtek RTL8211E)

How to use

Install the Asrock X570D4U into a compatible Micro ATX chassis and mount a Socket AM4 processor according to the motherboard’s CPU installation guidelines. Populate up to four DDR4 DIMM modules ensuring total memory does not exceed 32 GB and observe recommended slot population order for dual-channel operation. Connect M.2 and SATA III storage devices as required, and configure RAID arrays through the motherboard’s storage controller settings or BIOS/UEFI utility. Attach network cabling to the Gigabit LAN ports and connect power and case headers before initial power-up and BIOS configuration.

Recommendations

Use quality DDR4 modules that match the motherboard’s supported specifications and verify BIOS/UEFI updates before deploying in production environments. For RAID configurations, back up data before changing array settings. Ensure adequate cooling in compact Micro ATX builds to maintain stable operation of chipset and processor components.
