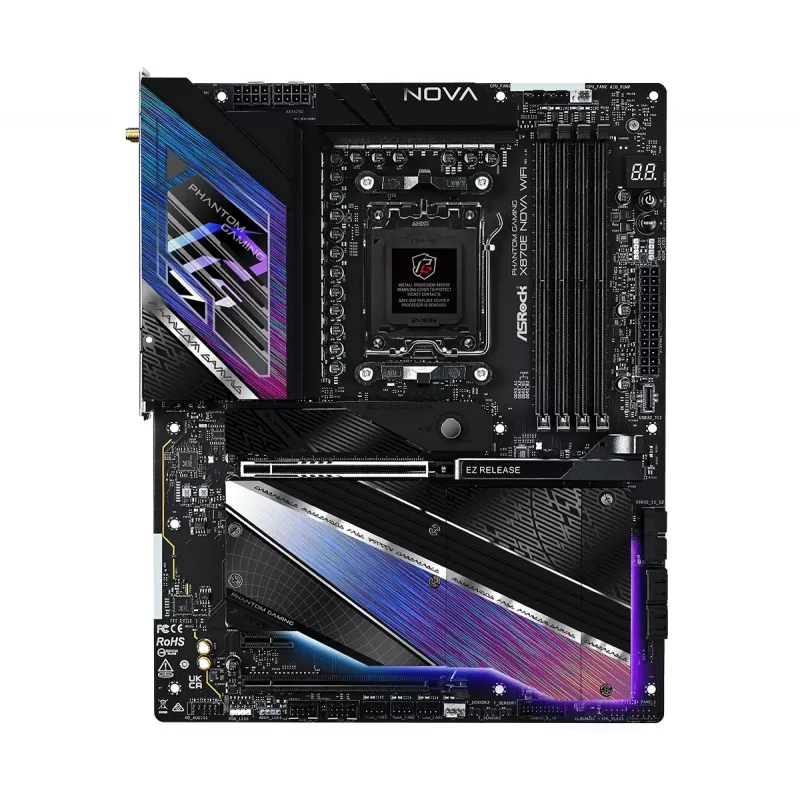

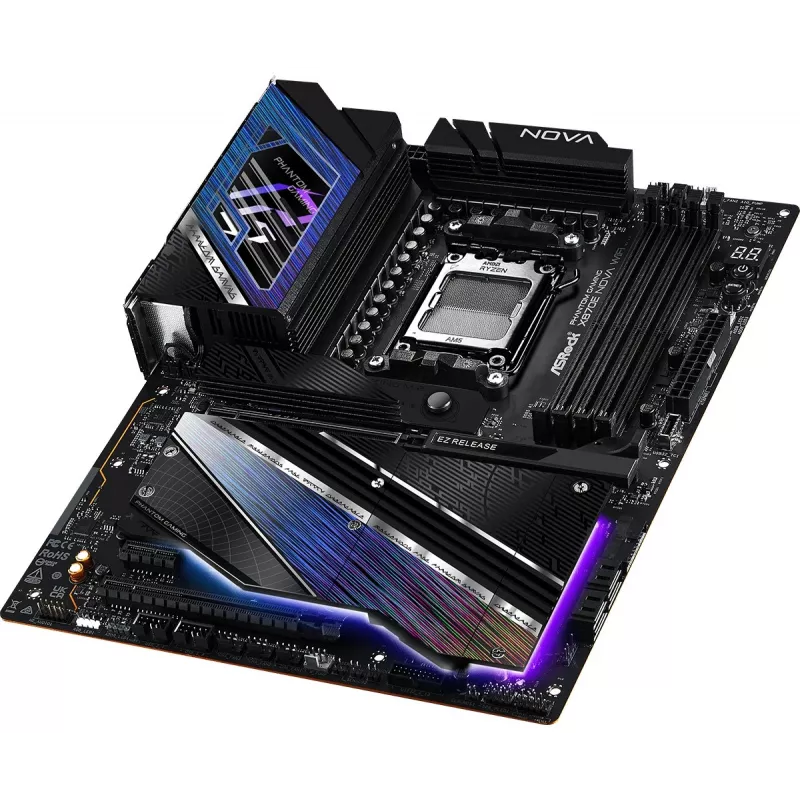

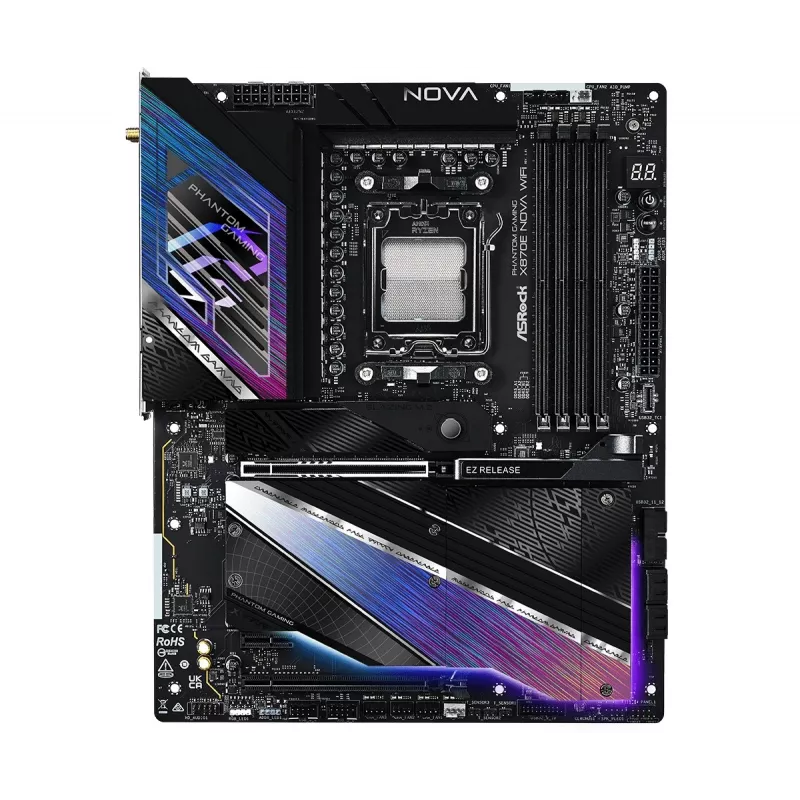

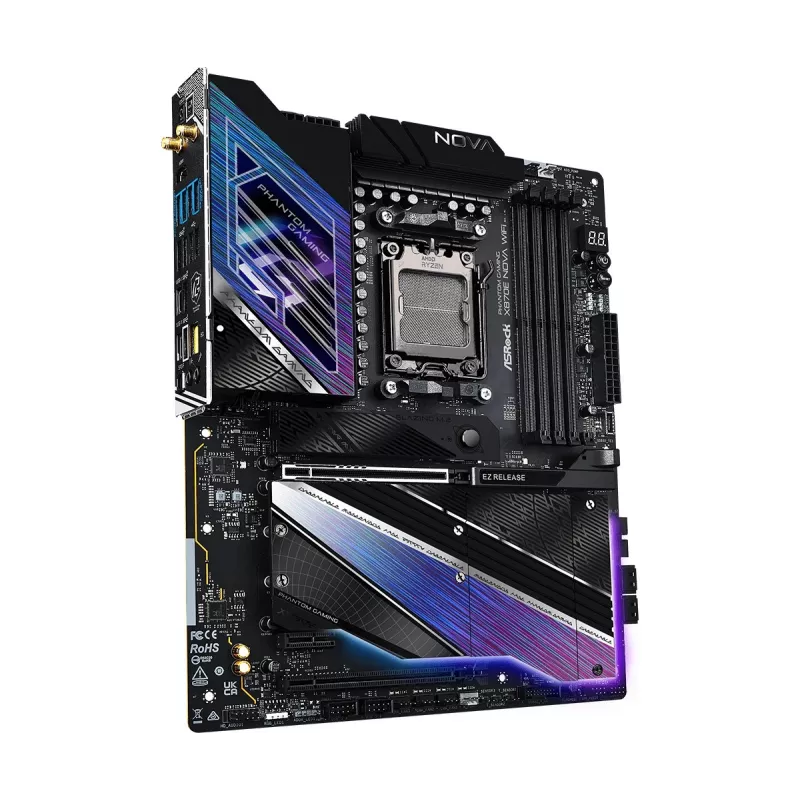

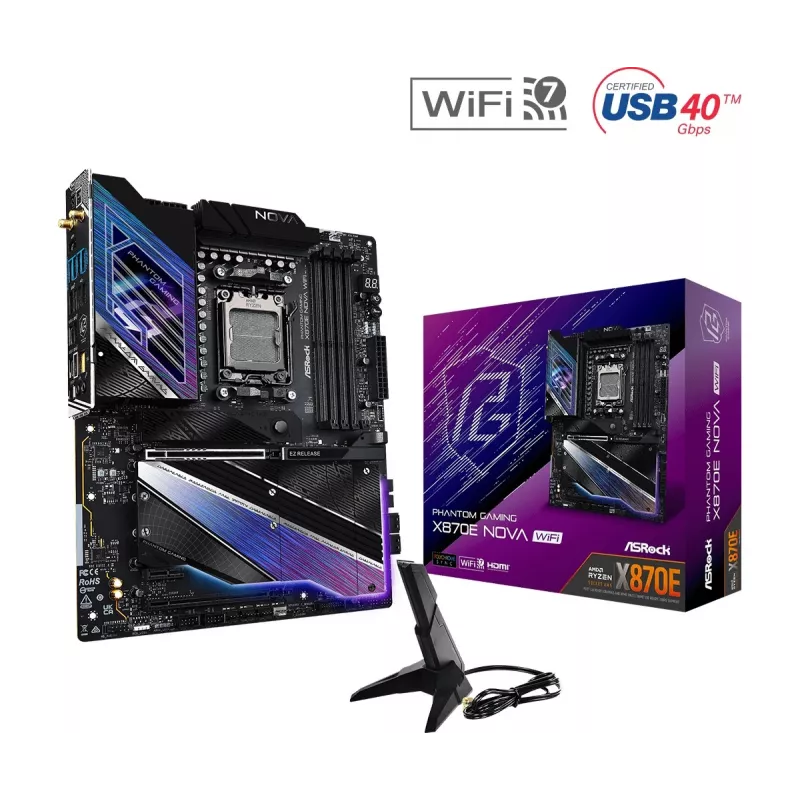

Placa base ASRock X870 NOVA WIFI — AMD X870, zócalo AM5, ATX, 4× DIMM DDR5, 256 GB, Wi-Fi 7, 2,5 GbE

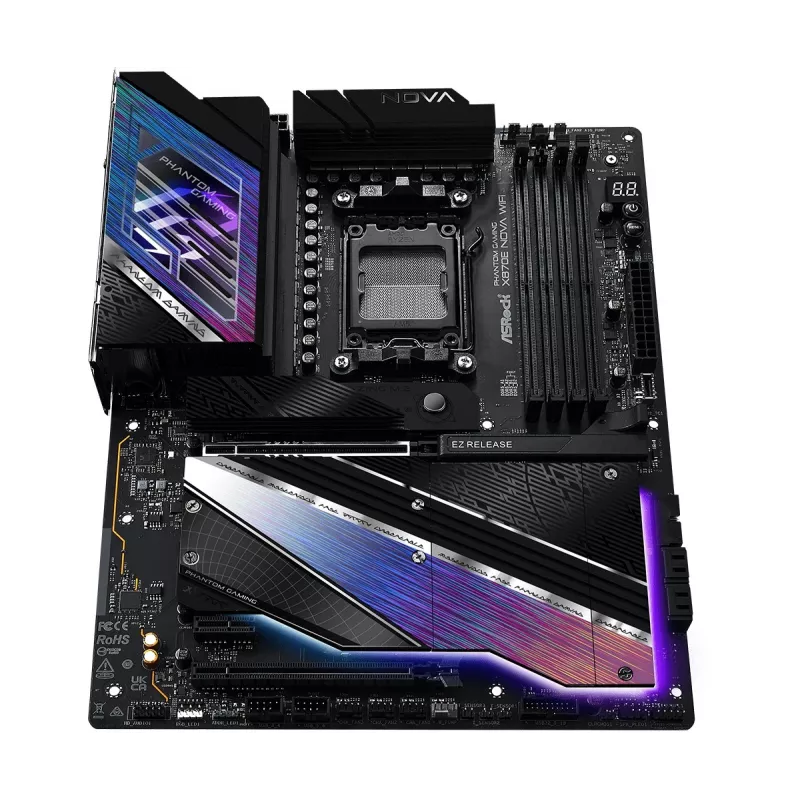

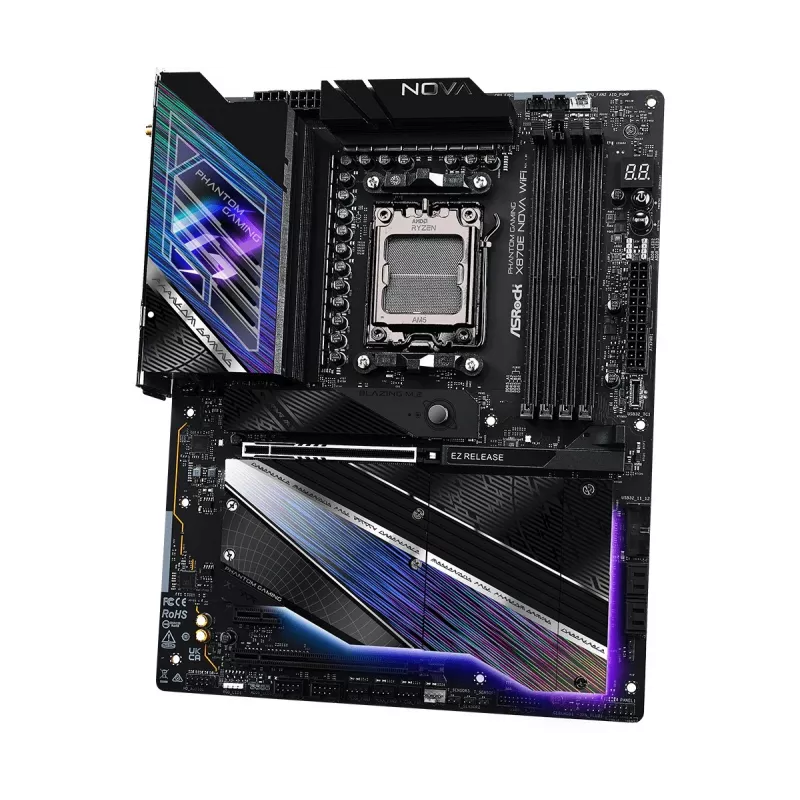

The ASRock X870 NOVA WIFI (Socket AM5, ATX) is a high-performance motherboard engineered for AMD Ryzen 7000, 8000 and 9000 series processors. It supports DDR5 memory up to 256 GB across four DIMM slots, multiple M.2 and SATA III storage options, integrated Realtek 5GbE LAN and Wi-Fi 7 with Bluetooth for fast connectivity, and a comprehensive set of modern I/O including USB4 Type-C and front-panel USB 3.2 Gen2x2 Type-C.

Advantages

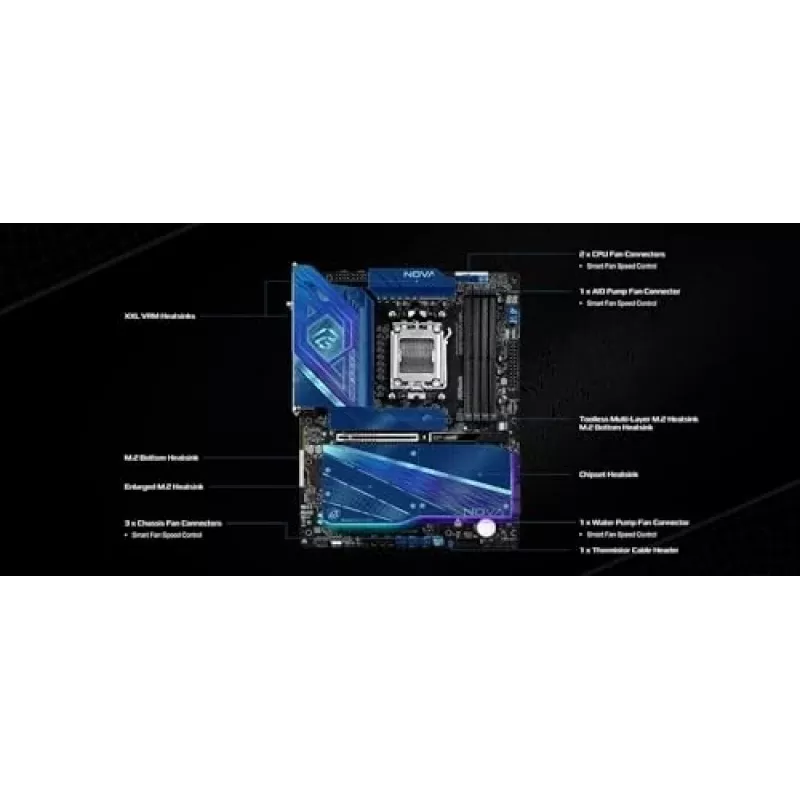

The motherboard offers PCIe Gen5 M.2 support for next-generation SSD speeds, robust 18+2+1 phase power delivery for stable CPU overclocking, and extensive cooling features such as an extra-large M.2 heatsink, M.2 bottom heatsink and optimized aluminum heatsinks for improved thermal performance. It includes user-friendly features like Graphics Card EZ Release and a toolless XXL M.2 heatsink design, plus advanced connectivity options including dual USB4 Type-C ports and a 20 Gbps front Type-C header.

Suitable for

• Gaming PCs requiring high-speed storage and strong CPU power delivery
• Content creation and productivity systems using DDR5 memory and multiple high-bandwidth drives
• Workstations needing fast network connectivity (5 GbE and Wi‑Fi 7)
• Custom builds where easy GPU and M.2 installation/removal is preferred

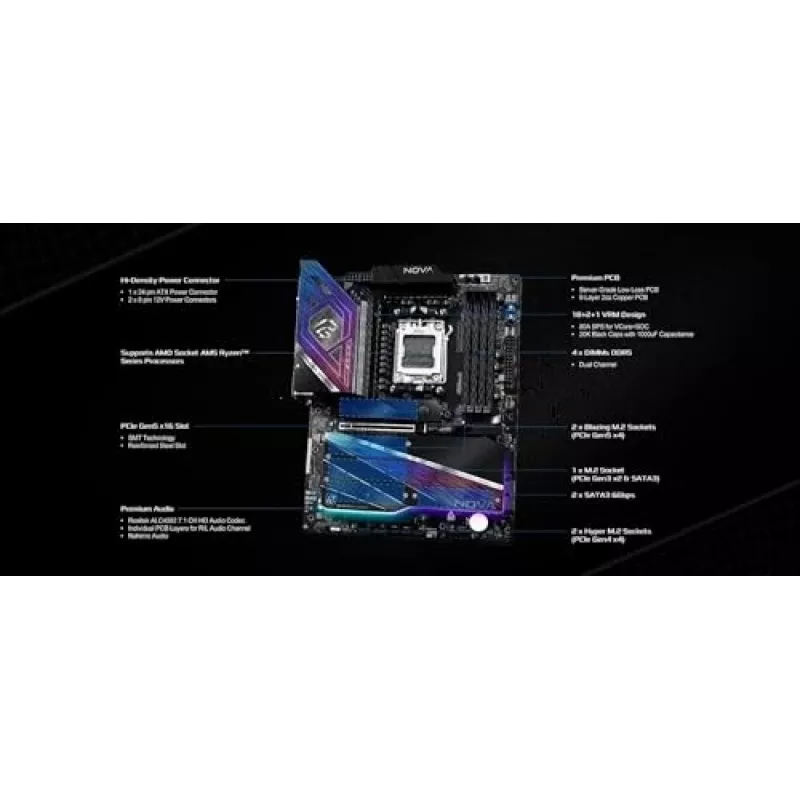

Key specifications

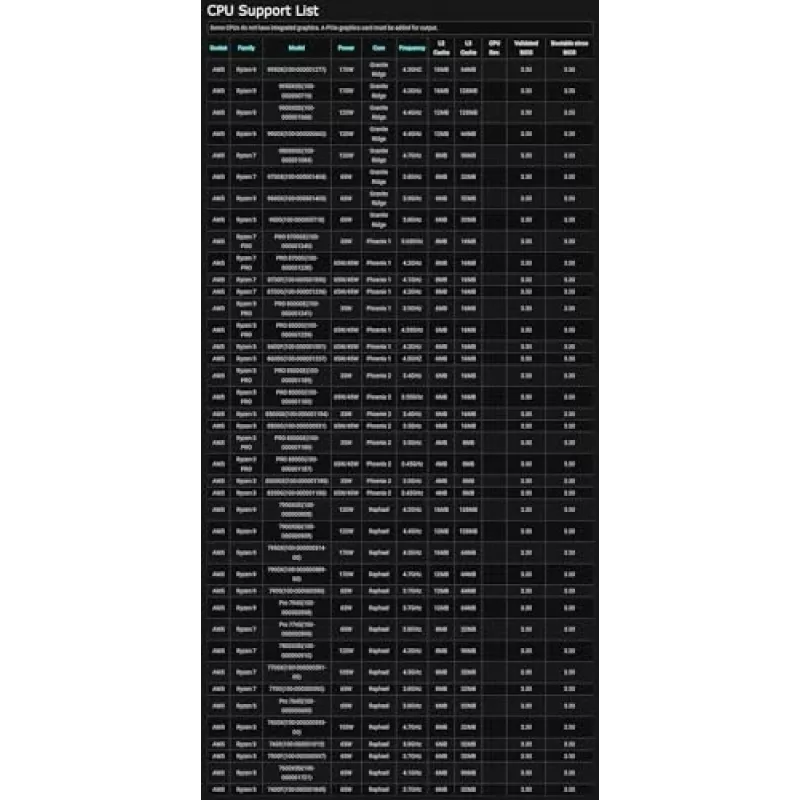

• Processor support: AMD Socket AM5 — Ryzen 7000 / 8000 / 9000 Series

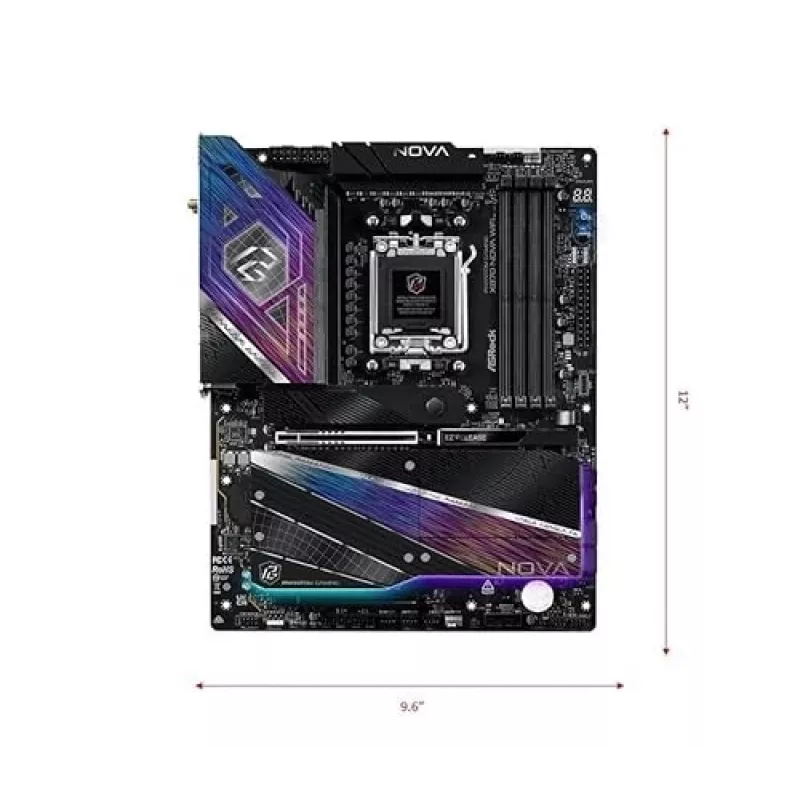

• Chipset: AMD X870; Form factor: ATX
• Memory: 4 x DDR5 DIMM, dual channel, up to 256 GB, supports XMP / EXPO, capable of 8400+ (OC)
• Power design: 18+2+1 phase with 80A SPS for VCore+SOC
• Expansion slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• Storage: 2 x PCIe Gen5 M.2 (Blazing M.2), 2 x PCIe Gen4 M.2 (Hyper M.2), 1 x M.2 (PCIe Gen3x2 & SATA3), 2 x SATA3
• Audio: Realtek ALC4082 7.1 CH HD Audio Codec with Nahimic Audio
• Networking: Realtek 5GbE LAN, 802.11be Wi‑Fi 7 + Bluetooth

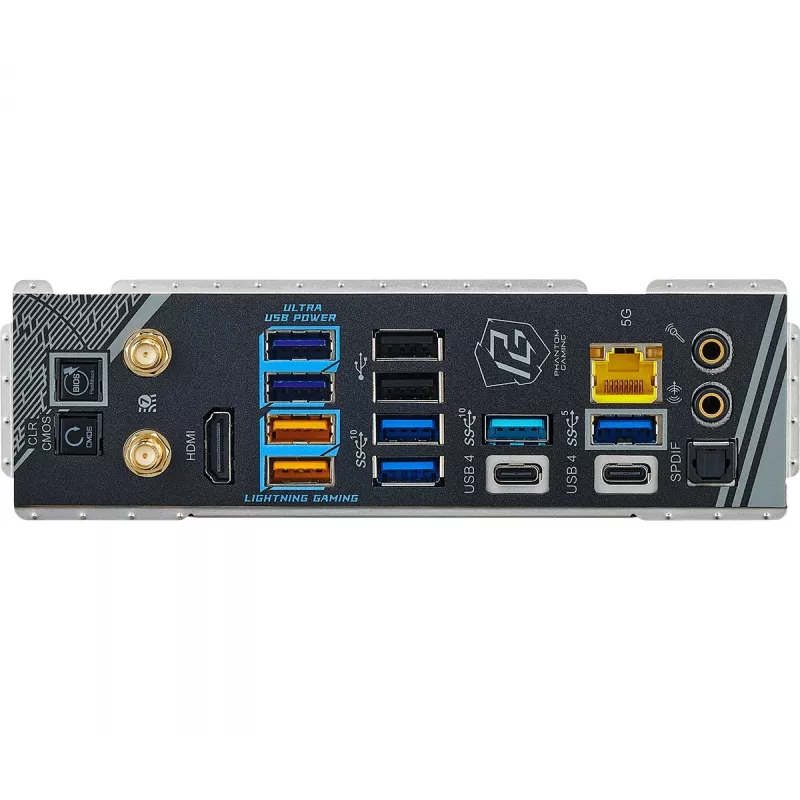

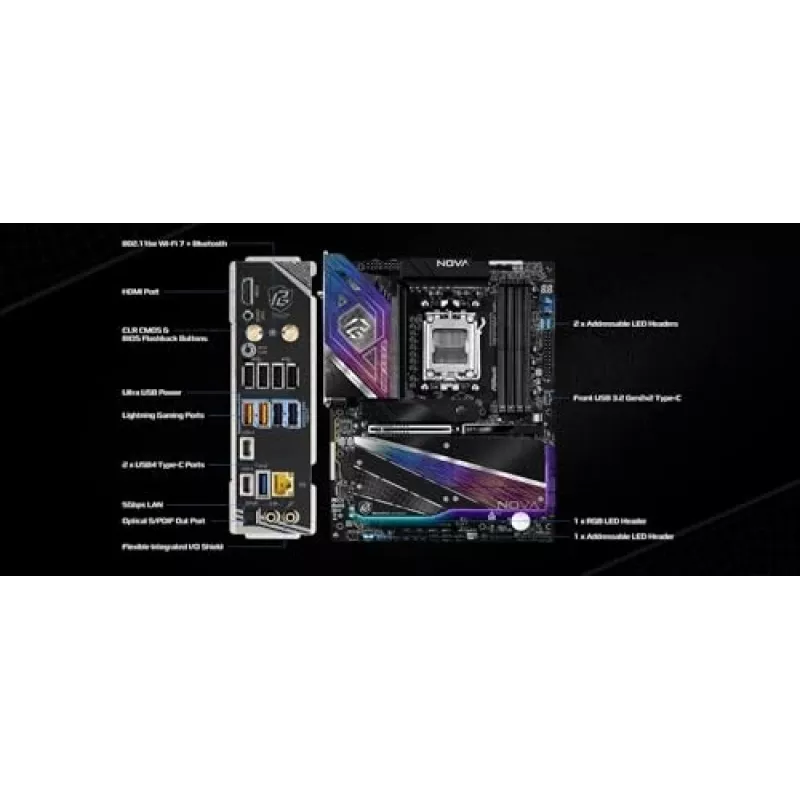

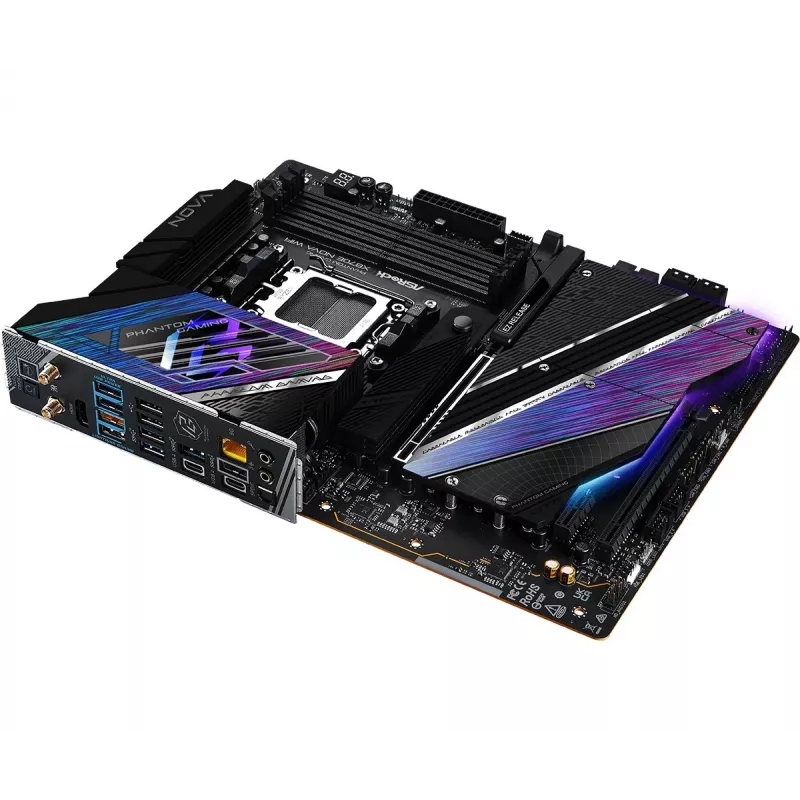

• Rear I/O & headers: 2 x USB4 Type-C (rear), 1 x USB 3.2 Gen2x2 Type-C (front header, 20 Gbps), multiple USB 3.2/USB2.0 ports
• BIOS: UEFI AMI 256 Mbit

How to use

Install the ASRock X870 NOVA WIFI into a compatible ATX chassis and mount an AMD Socket AM5 CPU following standard CPU installation procedures. Populate up to four DDR5 DIMMs and ensure memory modules support Intel XMP or AMD EXPO if you plan to enable pre-tested overclocking profiles. Fit M.2 SSDs into the designated slots and use the XXL M.2 heatsink tool-less mechanism for secure installation. Connect power, storage and front-panel headers, then attach peripherals to USB4 Type-C and other ports. Enter the UEFI BIOS to configure memory XMP/EXPO profiles, storage modes and boot order as needed.

Recommendations

For sustained high performance, ensure adequate chassis airflow to complement the motherboard’s heatsinks, use certified DDR5 modules for XMP/EXPO compatibility, and keep the UEFI BIOS updated. When installing high-speed M.2 SSDs, use the provided heatsinks and avoid obstructing airflow near PCIe and M.2 areas.
