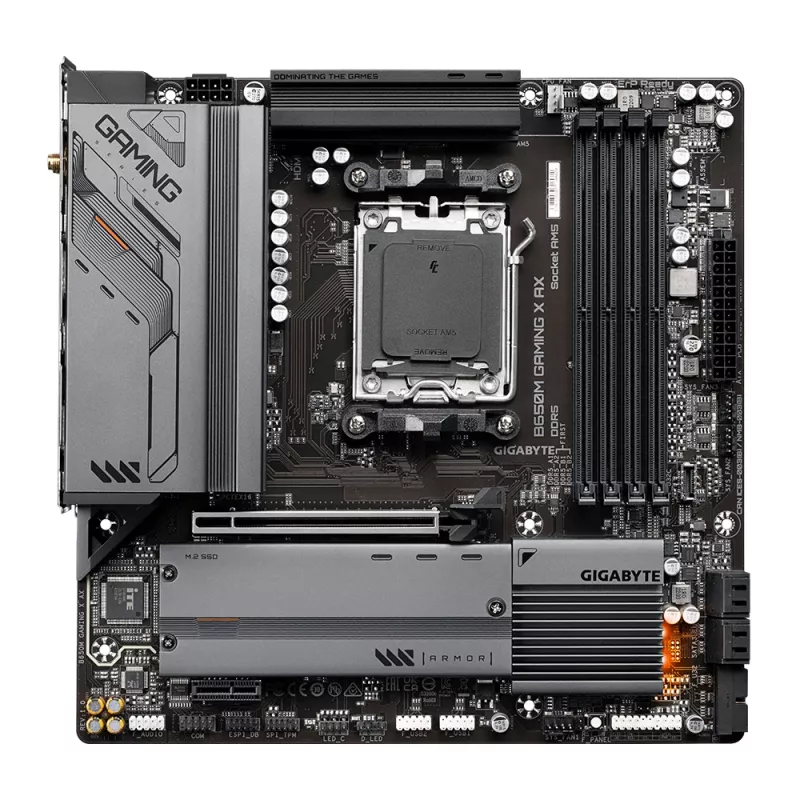

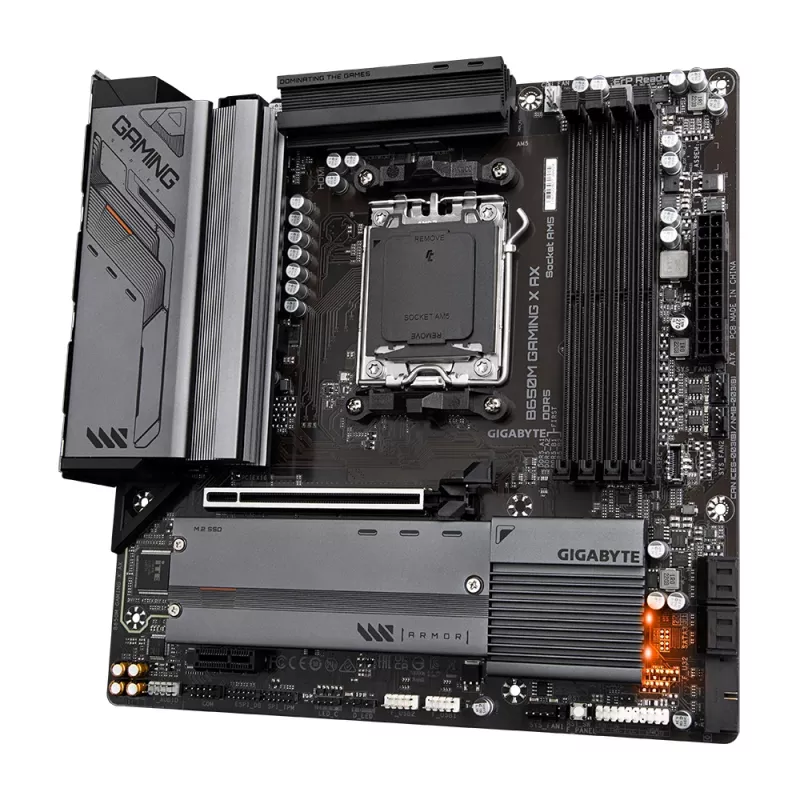

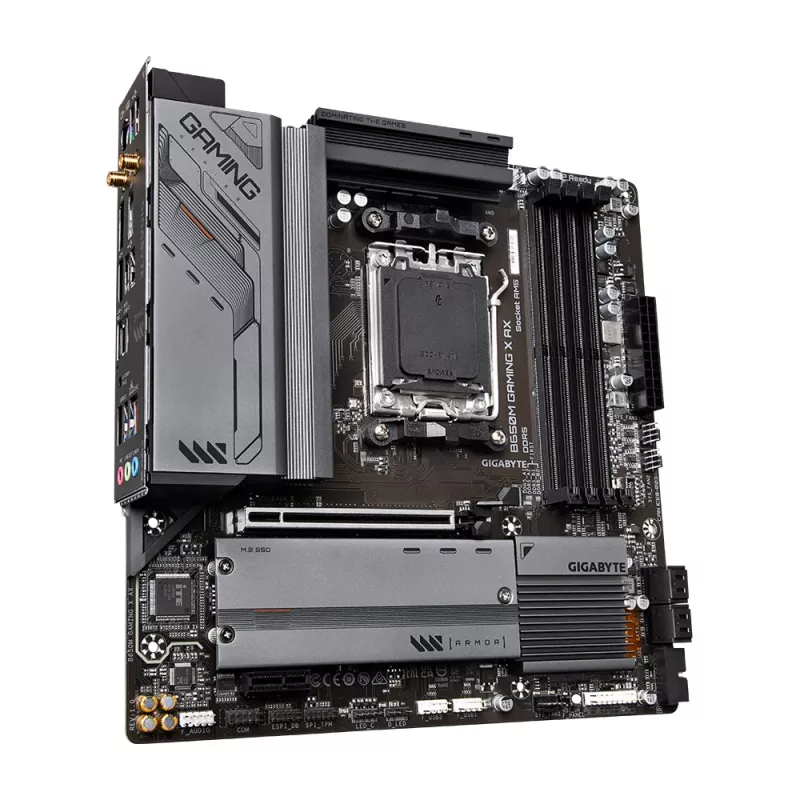

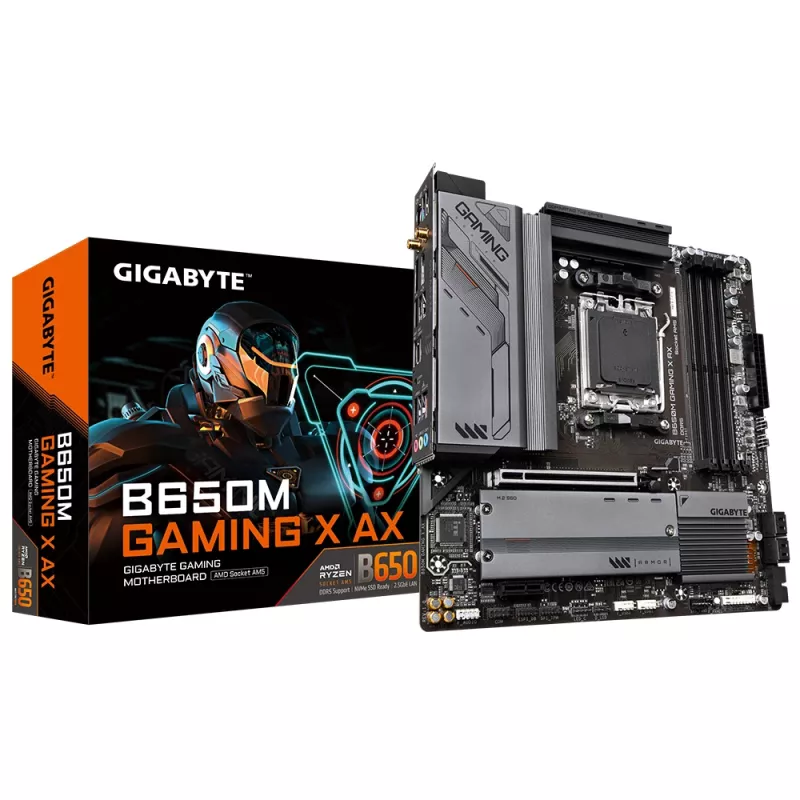

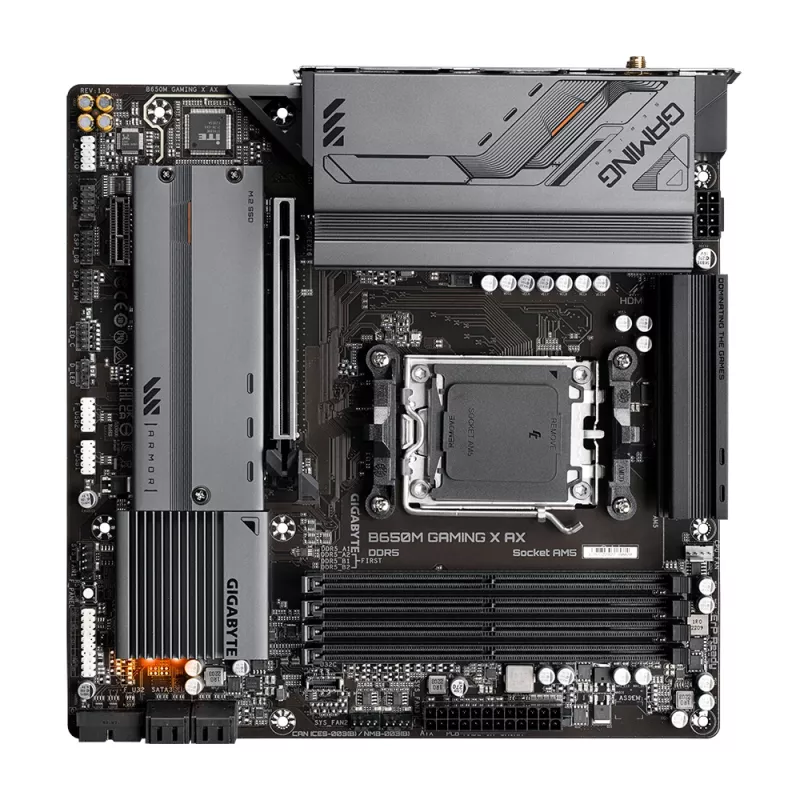

Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE

Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
36 mes
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
Placa base GIGABYTE B650M GAMING X AX — AMD B650, socket AM5, Micro ATX, DDR5, 4 DIMM, 2x M.2, Wi‑Fi 6E, 2.5GbE
0 opiniones • Escribir una opinión
284,99 €
The GIGABYTE B650M GAMING X AX is a Micro ATX motherboard for Socket AM5 designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots for up to 256 GB (overclocking to higher frequencies supported), integrates a 6+2+1 phase VRM for CPU power delivery, and o... Leer más
Agotado
Añadir a la lista de deseos Comparar este producto
Stock AgotadoSin stock Código 1731640 Marca GIGABYTE Modelo B650M GAMING X AX Garantía 3 años

Envíos y devoluciones

Placa base ASRock X870 Pro RS WiFi AM5 ATX
Vista rápida
Placa base ASRock X870 Pro RS WiFi AM5 ATX
216,49 €
Sin IVA:178,92 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base ASUS PRIME B550M-K AMD B550 Socket AM4 micro ATX
Vista rápida
Placa base ASUS PRIME B550M-K AMD B550 Socket AM4 micro ATX
95,79 €
Sin IVA:79,16 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
ASRock Z790 LiveMixer placa base ATX LGA1700 DDR5
Vista rápida
ASRock Z790 LiveMixer placa base ATX LGA1700 DDR5
233,77 €
Sin IVA:193,20 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base GIGABYTE Z790 EAGLE AX — Intel LGA1700 ATX, Z790, DDR5, 4x DIMM, Wi‑Fi 6E, 2.5Gb LAN
Vista rápida
Placa base GIGABYTE Z790 EAGLE AX — Intel LGA1700 ATX, Z790, DDR5, 4x DIMM, Wi‑Fi 6E, 2.5Gb LAN
186,22 €
Sin IVA:153,90 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base ASRock Z890 Pro-A WiFi — Intel Z890, LGA 1851, ATX, DDR5, 4x DIMM, 256GB, Wi-Fi 6E, 2.5Gb LAN
Vista rápida
Placa base ASRock Z890 Pro-A WiFi — Intel Z890, LGA 1851, ATX, DDR5, 4x DIMM, 256GB, Wi-Fi 6E, 2.5Gb LAN
214,84 €
Sin IVA:177,55 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base GIGABYTE B850 GAMING WIFI6, chipset AMD B850, socket AM5, ATX, 4 ranuras DDR5, Wi-Fi 6, 3x M.2, 4x SATA III
Vista rápida
Placa base GIGABYTE B850 GAMING WIFI6, chipset AMD B850, socket AM5, ATX, 4 ranuras DDR5, Wi-Fi 6, 3x M.2, 4x SATA III
169,73 €
Sin IVA:140,27 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base ASRock B860M Pro-A micro ATX — Intel B860, LGA 1851, DDR5, 4 DIMM, hasta 256 GB, 2.5Gb Ethernet
Vista rápida
Placa base ASRock B860M Pro-A micro ATX — Intel B860, LGA 1851, DDR5, 4 DIMM, hasta 256 GB, 2.5Gb Ethernet
131,00 €
Sin IVA:108,27 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
Vista rápida
Placa base ASRock B550M Phantom Gaming 4 AMD B550 Socket AM4 micro ATX
96,68 €
Sin IVA:79,90 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base MSI PRO X870E-P WIFI ATX — AMD X870E, Socket AM5, DDR5, 4 DIMM, Wi‑Fi 7, 3× M.2, HDMI 2.1
Vista rápida
Placa base MSI PRO X870E-P WIFI ATX — AMD X870E, Socket AM5, DDR5, 4 DIMM, Wi‑Fi 7, 3× M.2, HDMI 2.1
260,83 €
Sin IVA:215,56 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto
Placa base GIGABYTE B760M GAMING X WIFI6E GEN5 Micro ATX, LGA1700, B760, DDR5 hasta 5600MHz, 4 DIMM, 2x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE
Vista rápida
Placa base GIGABYTE B760M GAMING X WIFI6E GEN5 Micro ATX, LGA1700, B760, DDR5 hasta 5600MHz, 4 DIMM, 2x PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE
150,81 €
Sin IVA:124,64 €
Añadir al carrito Añadir a la lista de deseos Comparar este producto

The GIGABYTE B650M GAMING X AX is a Micro ATX motherboard for Socket AM5 designed for AMD Ryzen 7000/8000/9000 series processors. It supports DDR5 memory across four DIMM slots for up to 256 GB (overclocking to higher frequencies supported), integrates a 6+2+1 phase VRM for CPU power delivery, and offers dual PCIe 4.0 M.2 slots alongside SATA III for flexible storage configurations. Connectivity includes 2.5GbE LAN, Wi‑Fi 6E with Bluetooth and antenna, multiple USB 3.2 and USB 2.0 ports, and an HDMI output. The board supports RAID 0/1/10 arrays and discrete graphics cards via PCIe slots, making it suitable for compact gaming and performance-oriented PC builds.

Advantages

This Micro ATX motherboard combines modern platform features—Socket AM5 compatibility, DDR5 memory support, and PCIe 4.0 M.2 storage—with integrated networking options including 2.5GbE and Wi‑Fi 6E. The four DIMM slots enable up to 256 GB of system memory for demanding multitasking, while the 6+2+1 phase VRM provides stable power delivery for supported Ryzen CPUs. Dual M.2 slots and RAID support allow for flexible high-speed storage setups, and the board includes a full complement of USB 3.2 ports and legacy USB 2.0 for peripherals.

Suitable for (tasks / use cases)

  • Compact gaming builds using AMD Ryzen 7000/8000/9000 series CPUs and discrete graphics.
  • High-performance productivity systems requiring DDR5 memory and multiple M.2 SSDs.
  • Home or small office systems needing fast wired and wireless networking (2.5GbE and Wi‑Fi 6E).
  • Systems where RAID 0/1/10 storage configurations are required for performance or redundancy.

When it may not be suitable

This Micro ATX board is not ideal if you require an extended ATX or full-size motherboard for many PCIe expansion cards or additional onboard features found on larger motherboards. Systems that depend on legacy sockets or older memory standards (DDR4) are not compatible with this AM5/DDR5 platform. Very large cooling solutions or extreme multi‑GPU configurations may be limited by the Micro ATX form factor and available PCIe lanes.

Key specifications

  • Form factor: Micro ATX
  • Chipset: AMD B650
  • CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
  • Memory: 4x DDR5 DIMM slots, up to 256 GB (supports overclocking up to rated frequencies)
  • Storage: 2x PCIe 4.0 M.2 slots, SATA III ports (for HDD/SSD)
  • Expansion: PCIe slots with discrete graphics support
  • Networking: 2.5GbE LAN and Wi‑Fi 6E with Bluetooth (antenna included)
  • Audio: 7.1 channel onboard audio

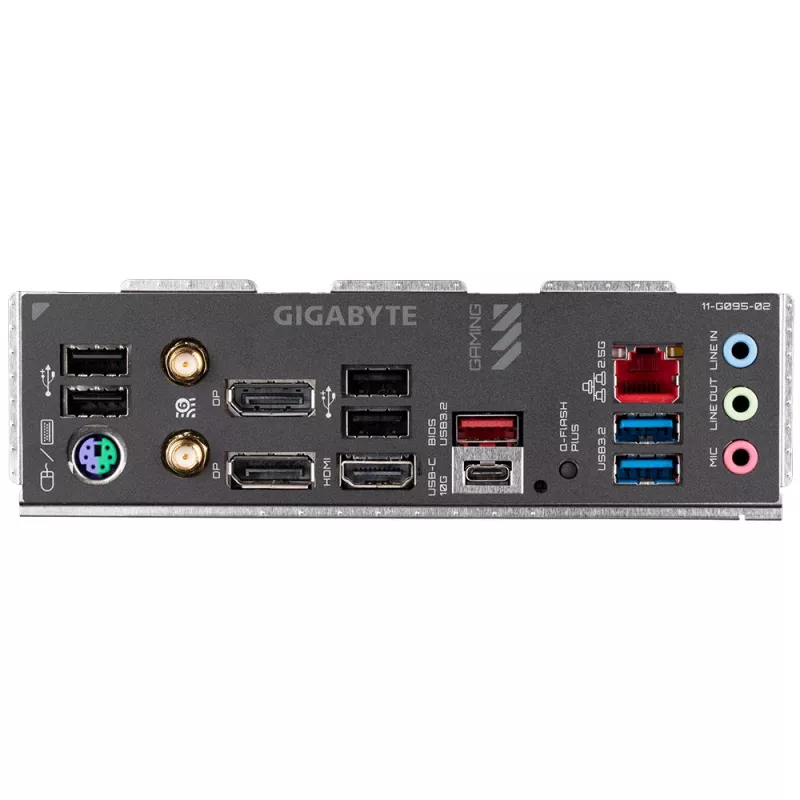

  • Rear I/O: HDMI output, multiple USB 3.2 Gen1/Gen2 Type-A and Type-C ports, USB 2.0 ports, RJ‑45 LAN
  • RAID support: RAID 0/1/10 for compatible storage devices

How to use

Install the GIGABYTE B650M GAMING X AX into a compatible Micro ATX case using standard motherboard standoffs and screws. Fit an AM5-compatible Ryzen processor, apply appropriate thermal solution, and populate DDR5 DIMMs across the slots according to the motherboard manual to enable dual- or quad-channel operation. Connect M.2 SSDs and SATA drives as needed, and configure RAID in the BIOS if required. Attach the Wi‑Fi antenna to the external connectors for wireless networking and plug in power, front-panel headers, and peripherals. Update the BIOS and chipset drivers after initial boot to ensure full compatibility and performance.

What to consider before purchase

  • Ensure your CPU is an AM5-compatible AMD Ryzen 7000/8000/9000 series processor.
  • Choose DDR5 memory modules; DDR4 is not supported on this board.
  • Verify your PC case supports Micro ATX form factor and can accommodate your cooler and GPU length.
  • Plan storage and RAID needs to confirm the number of M.2 and SATA devices required.
  • Check available PCIe lanes and expansion requirements if you need multiple add-in cards.

Recommendations

For balanced performance, install memory in matched DDR5 kits across recommended DIMM slots, use NVMe PCIe 4.0 M.2 SSDs for primary storage, and keep BIOS and driver packages up to date. Ensure adequate case airflow for stable VRM and CPU temperatures during sustained loads.

Aspectos destacados
  • Compact gaming builds using AMD Ryzen 7000/8000/9000 series CPUs and discrete graphics.
  • High-performance productivity systems requiring DDR5 memory and multiple M.2 SSDs.
  • Home or small office systems needing fast wired and wireless networking (2.5GbE and Wi‑Fi 6E).
  • Systems where RAID 0/1/10 storage configurations are required for performance or redundancy.
  • Form factor: Micro ATX
  • Chipset: AMD B650
  • CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
  • Memory: 4x DDR5 DIMM slots, up to 256 GB (supports overclocking up to rated frequencies)
  • Storage: 2x PCIe 4.0 M.2 slots, SATA III ports (for HDD/SSD)
  • Expansion: PCIe slots with discrete graphics support
  • Networking: 2.5GbE LAN and Wi‑Fi 6E with Bluetooth (antenna included)
  • Audio: 7.1 channel onboard audio
  • Rear I/O: HDMI output, multiple USB 3.2 Gen1/Gen2 Type-A and Type-C ports, USB 2.0 ports, RJ‑45 LAN
  • RAID support: RAID 0/1/10 for compatible storage devices
  • Ensure your CPU is an AM5-compatible AMD Ryzen 7000/8000/9000 series processor.
  • Choose DDR5 memory modules; DDR4 is not supported on this board.
  • Verify your PC case supports Micro ATX form factor and can accommodate your cooler and GPU length.
  • Plan storage and RAID needs to confirm the number of M.2 and SATA devices required.
  • Check available PCIe lanes and expansion requirements if you need multiple add-in cards.
Especificaciones
Altura
35 mm
Altura del embalaje
68 mm
Ancho
244 mm
Ancho del embalaje
270 mm
Antena incluida
Yes
Bluetooth
Yes
Canales de memoria
Dual-channel
Canales de salida de audio
7.1 channels
Chip de audio
Realtek ALC897
Chipset de la placa base
AMD B650
Color del producto
Brown
Compatibilidad con gráfica dedicada
Yes
Compatibilidad con tecnología de procesamiento en paralelo
Not supported
Compatibilidad ECC
Non-ECC
Compatibilidad RAID
Yes
Componente para
PC
Conector de alimentación ATX (24 pines)
Yes
Conector de alimentación de 12 V
Yes
Conector de alimentación EPS (8 pines)
Yes
Conector de antena wifi (AP)
2
Conector de audio del panel frontal
Yes
Conector de pines para LED RGB
Yes
Conector de ventilador de CPU
Yes
Conector del panel frontal
Yes
Conector TPM
Yes
Conectores de puerto serie
1
Conectores USB 2.0
2
Conectores USB 3.2 Gen 1 (3.1 Gen 1)
1
Conectores USB 3.2 Gen 2 (3.1 Gen 2)
1
Controlador LAN
Realtek RTL8125
Entrada de línea
Yes
Entrada de micrófono
Yes
Estándar wifi superior
Wi-Fi 6E (802.11ax)
Estándares wifi
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
Fabricante del procesador
AMD
Familia de chipset de la placa base
AMD
Formato de la placa base
micro ATX
Generación PCI Express máxima del 1.º M.2
4.0
Generación PCI Express máxima del 2.º M.2
4.0
HDCP
Yes
Interfaces de unidades de almacenamiento compatibles
M.2, SATA III
Jumper Clear CMOS
Yes
Memoria interna máxima
256 GB
Memoria interna máxima por ranura
64 GB
Memoria sin búfer
Yes
Modelo del controlador wifi
Realtek RTL8852CE
Monitorización del estado del PC
Fan, Temperature, Voltage
Niveles RAID
0, 1, 10
Número de celdas de la batería
1
Número de conectores de alimentación EPS (8 pines)
1
Número de conectores de pines para LED RGB
3
Número de conectores de ventilador de chasis
3
Número de conectores para ventilador de CPU
1
Número de conectores SATA III
4
Número de discos duros compatibles
4
Número de puertos DisplayPort
2
Número de puertos DVI-D
0
Número de puertos HDMI
1
Número de puertos PS/2
1
Número de puertos USB 2.0
4
Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo A
2
Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo C
0
Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo A
1
Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo C
1
Número de puertos VGA (D-Sub)
0
Número de ranuras de memoria
4
Número de ranuras M.2 (M)
2
Número de unidades de almacenamiento compatibles
6
País de origen
China
Periodo de garantía
3 year(s)
Peso de la batería
3 g
Peso de litio por batería
0.07 g
Peso del embalaje
1.9 kg
Pilas incluidas
Yes
Productos por caja interior
1 pc(s)
Profundidad
244 mm
Profundidad del embalaje
268 mm
Puertos Ethernet LAN (RJ-45)
1
Ranuras PCI Express x1 (Gen 3.x)
1
Ranuras PCI Express x16 (Gen 4.x)
1
Resolución máxima
4096 x 2160 pixels
Salidas de auriculares
1
Serie de procesadores compatible
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Sistemas operativos Windows compatibles
Windows 10 x64, Windows 11 x64
Software incluido
Norton® Internet Security (OEM version) LAN bandwidth management software
Tamaño de clave máximo del 1.º M.2
25110
Tamaño de clave máximo del 2.º M.2
25110
Tamaño de memoria de la BIOS
256 Mbit
Tecnología de la batería
Lithium-Manganese Dioxide (LiMnO2)
Tipo de batería
CR2032
Tipo de BIOS
UEFI AMI
Tipo de fuente de alimentación
ATX
Tipo de interfaz Ethernet
2.5 Gigabit Ethernet
Tipo de ranuras de memoria
DIMM
Tipos de memoria compatibles
DDR5-SDRAM
Tipos de unidades de almacenamiento compatibles
HDD & SSD
Tornillos incluidos
Yes
Velocidad de reloj de memoria compatible (máx.)
8000 MHz
Velocidades de reloj de memoria compatibles
4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Versión ACPI
5.0
Versión de Bluetooth
5.3
Versión de Desktop Management Interface (DMI)
2.7
Versión de DirectX
12.0
Versión de DisplayPort
1.4
Versión de HDMI
2.1
Versión de System Management BIOS (SMBIOS)
2.7
Wifi
Yes
Zócalo del procesador
Socket AM5
Zócalos de procesador compatibles
Socket AM5
El historial de precios aún no está disponible
Todavía estamos recopilando suficientes datos de precios diarios de este producto.

Análisis independientes de medios tecnológicos

techspot.comSteven

“Today is the day when we can finally present to you the results of our extensive AMD B650 motherboard testing. It's been a massive undertaking indeed. In total, we've tested 35 boards, a task that spanned several months, but it's finally complete.”

Lee el análisis completo en techspot.com →

Productos populares en esta categoría

Hola, soy el asistente de IA de DistriNode. Puedo ayudarte a encontrar productos, comparar opciones, crear presupuestos en PDF o abrir solicitudes de soporte.
Términos y condiciones·Desistimiento y devoluciones·Política de privacidad·Información de entrega·Contacto
