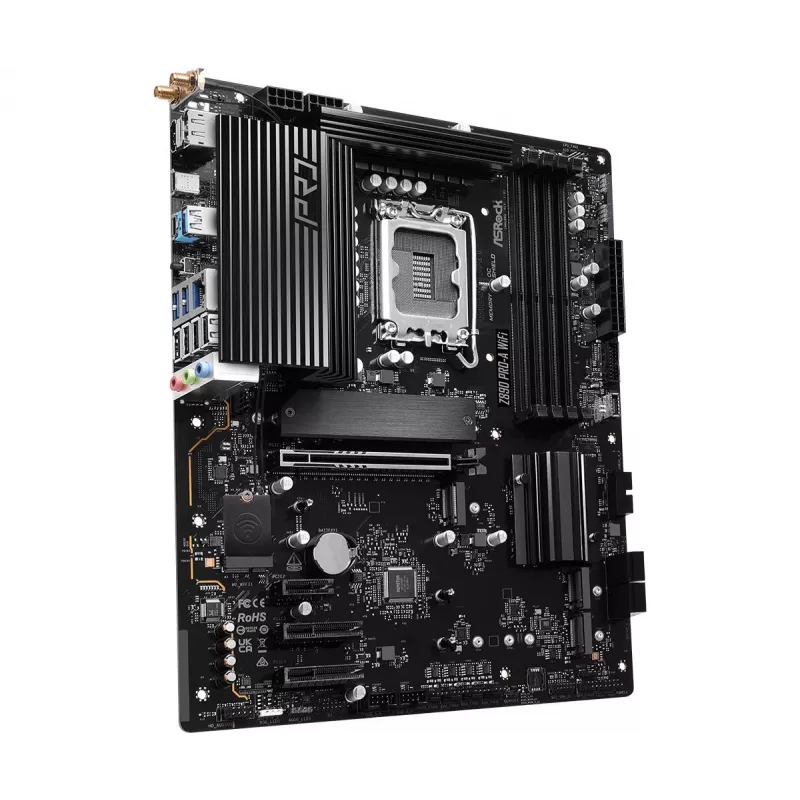

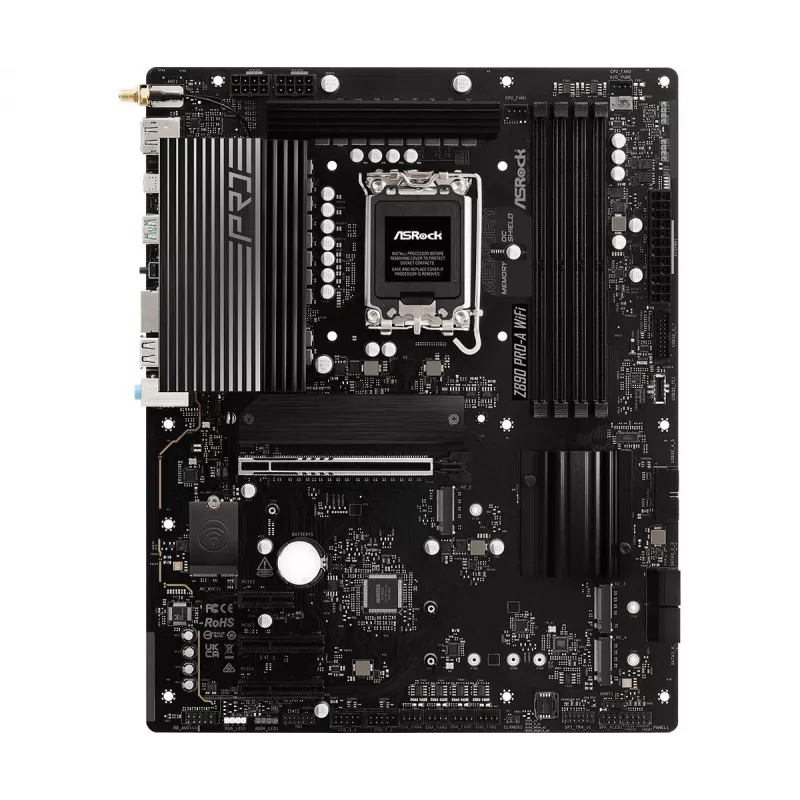

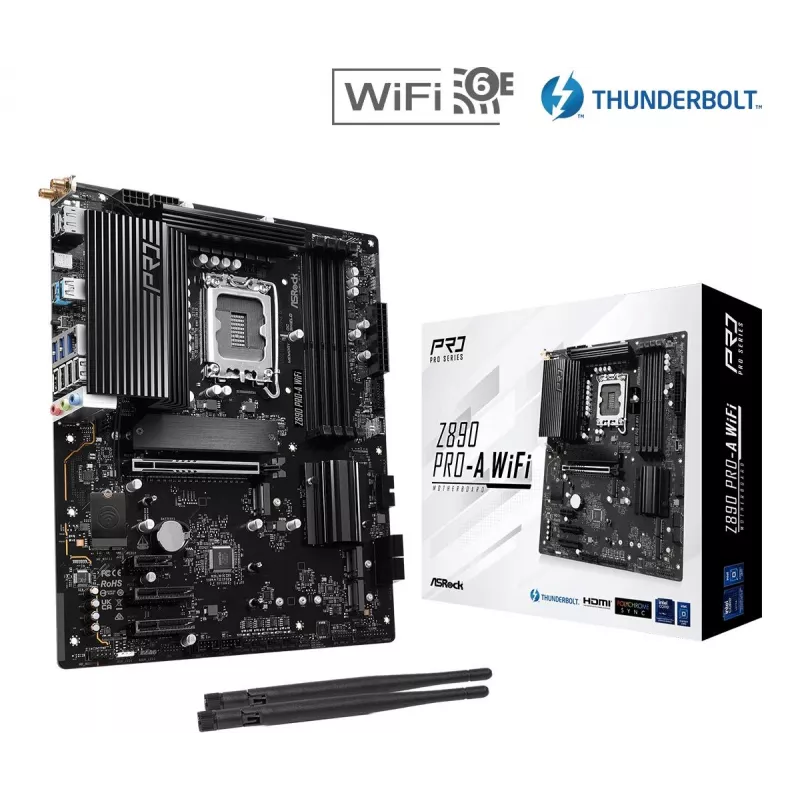

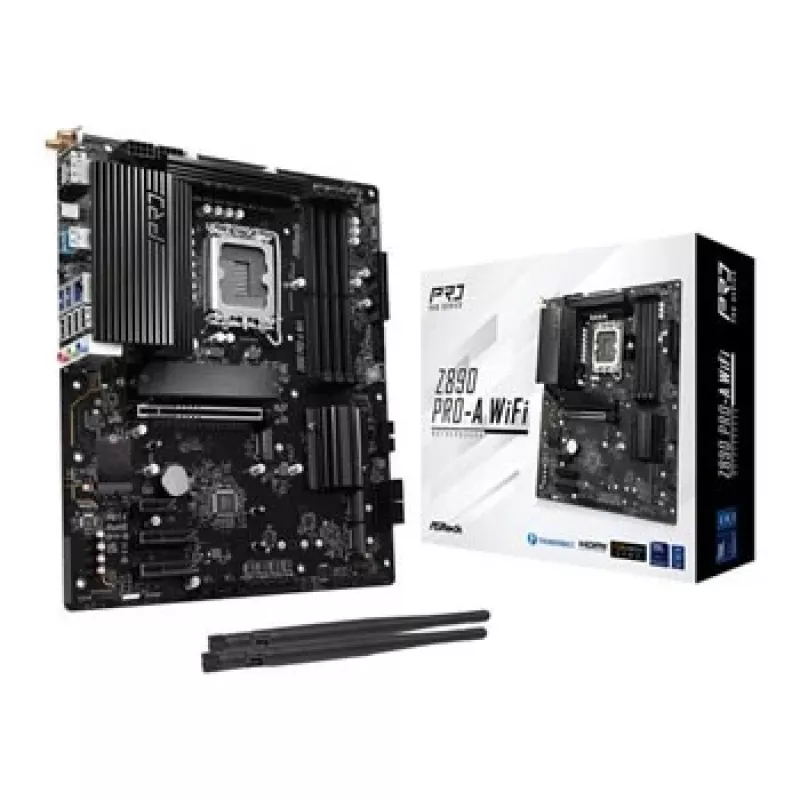

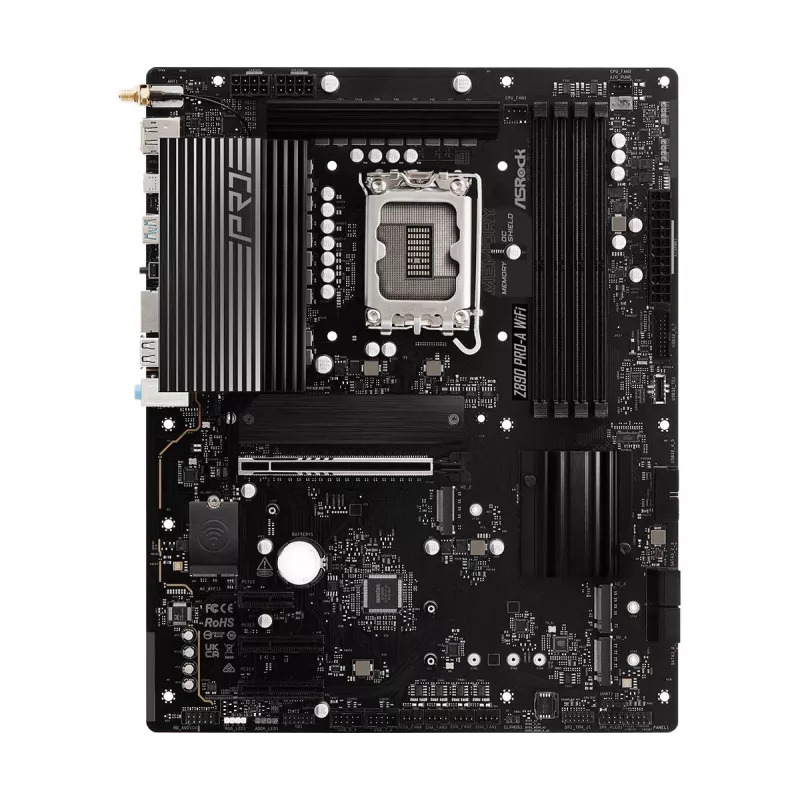

Placa base ASRock Z890 Pro-A WiFi — Intel Z890, LGA 1851, ATX, DDR5, 4x DIMM, 256GB, Wi-Fi 6E, 2.5Gb LAN

The ASRock Z890 Pro-A WiFi motherboard is built on the Intel Z890 chipset with an LGA 1851 (Socket V1) for Intel Core Ultra processors. This ATX board supports up to 256 GB of DDR5 memory across four slots and provides multiple storage options including M.2 and SATA III for SSDs and HDDs. Integrated 2.5 Gigabit Ethernet and Wi‑Fi 6E deliver high-speed network connectivity while the ATX form factor leaves room for expansion and add‑on cards.

Advantages

The Pro‑A series emphasizes stability, durability and efficiency through design choices such as high‑capacitance power components and reinforced PCB construction. Large 1000µF capacitors improve charge storage, reduce ripple and help maintain a stable output current under load, which supports consistent system behaviour. Dual‑ounce (2oz) copper inner PCB layers provide improved thermal characteristics and more efficient power and signal delivery, beneficial for sustained workloads and modest overclocking.

Suitable for

• Everyday desktop and office PCs
• Content creation and multimedia workstations
• Mid‑range gaming builds with upgrade potential
• Systems requiring fast wired and wireless networking (2.5GbE, Wi‑Fi 6E)

Key specifications

• Chipset: Intel Z890
• CPU Socket: LGA 1851 (Socket V1), compatible with Intel Core Ultra processors
• Form factor: ATX
• Memory: 4 × DDR5 slots, up to 256 GB
• Storage interfaces: M.2 and SATA III

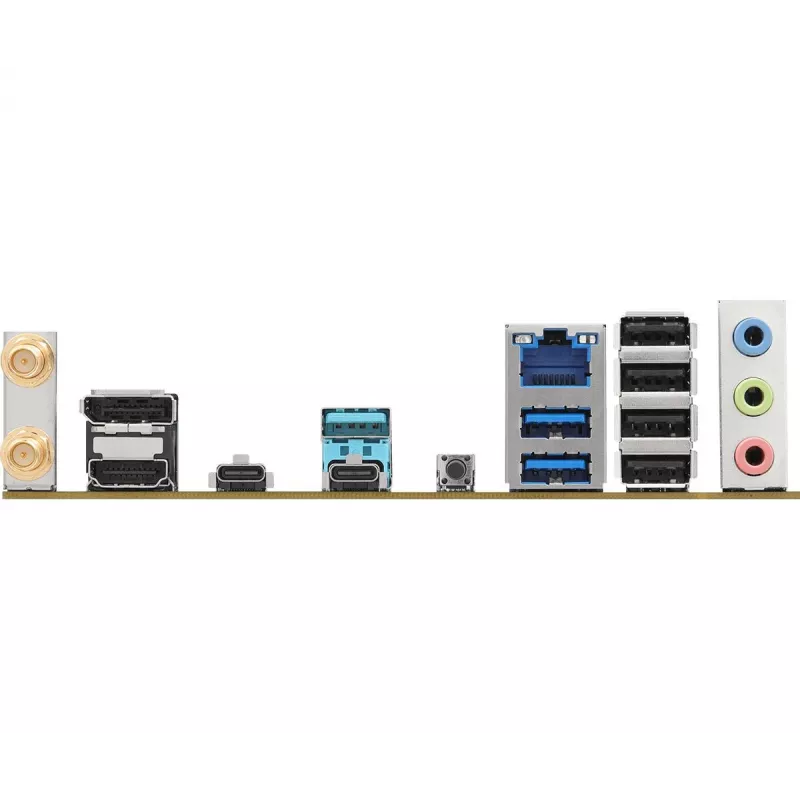

• Networking: 2.5 Gigabit Ethernet, Wi‑Fi 6E
• Power delivery highlights: 1000µF capacitors, 2oz copper inner PCB layers

How to use

Install the motherboard into a compatible ATX chassis and secure it with standoffs. Fit an LGA 1851 CPU and apply the appropriate cooler following the processor and cooler manufacturer instructions. Populate DDR5 memory modules in matched pairs for optimal performance and connect storage devices to M.2 or SATA III ports. Attach power connectors from a suitable PSU, connect front‑panel headers and I/O peripherals, then complete BIOS setup to configure memory profiles, storage and networking settings.

Recommendations

For stable operation, use a quality power supply with appropriate wattage and connectors, install memory in recommended slot pairs, and keep BIOS and firmware up to date. When overclocking, monitor temperatures and power delivery, as the 2oz copper PCB and 1000µF capacitors support improved thermal and power characteristics but proper cooling remains essential.
