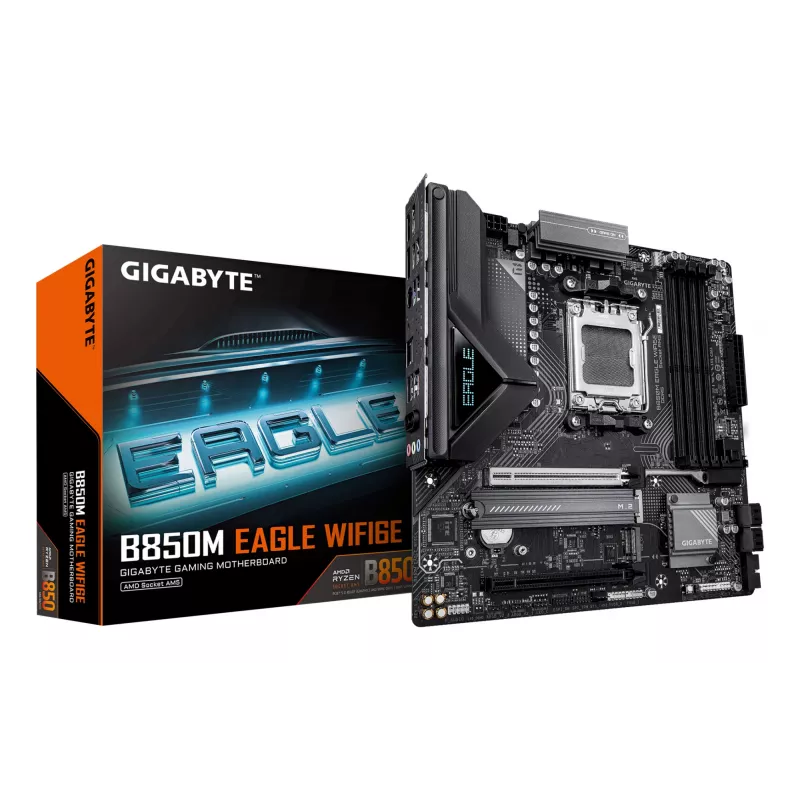

Placa base GIGABYTE B850M EAGLE WIFI6E Socket AM5 para AMD Ryzen 7000/8000/9000, DDR5 hasta 8200MHz (OC), PCIe 5.0, Wi‑Fi 6E, 2.5 GbE

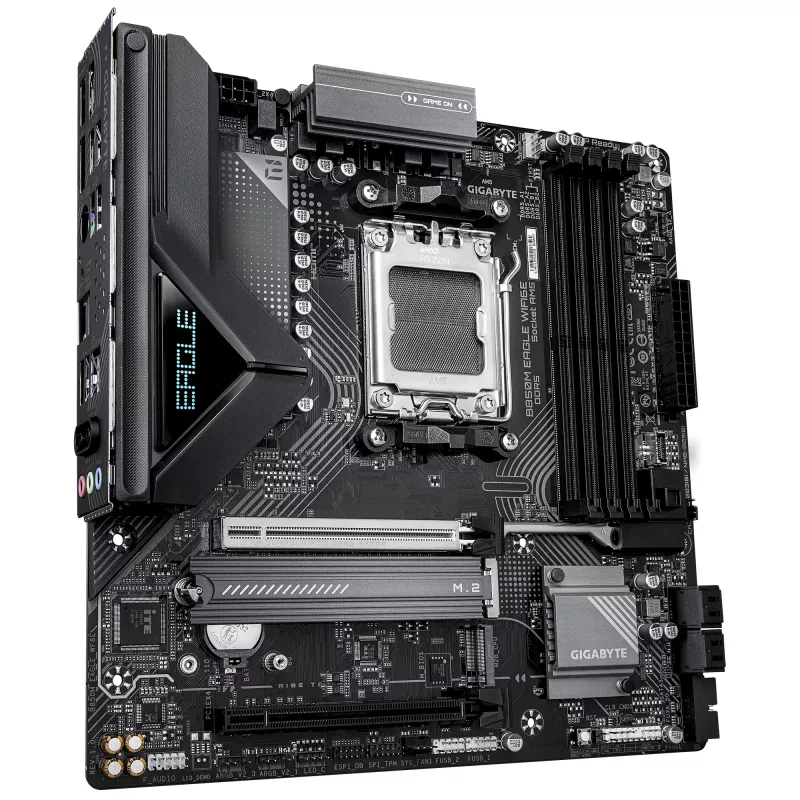

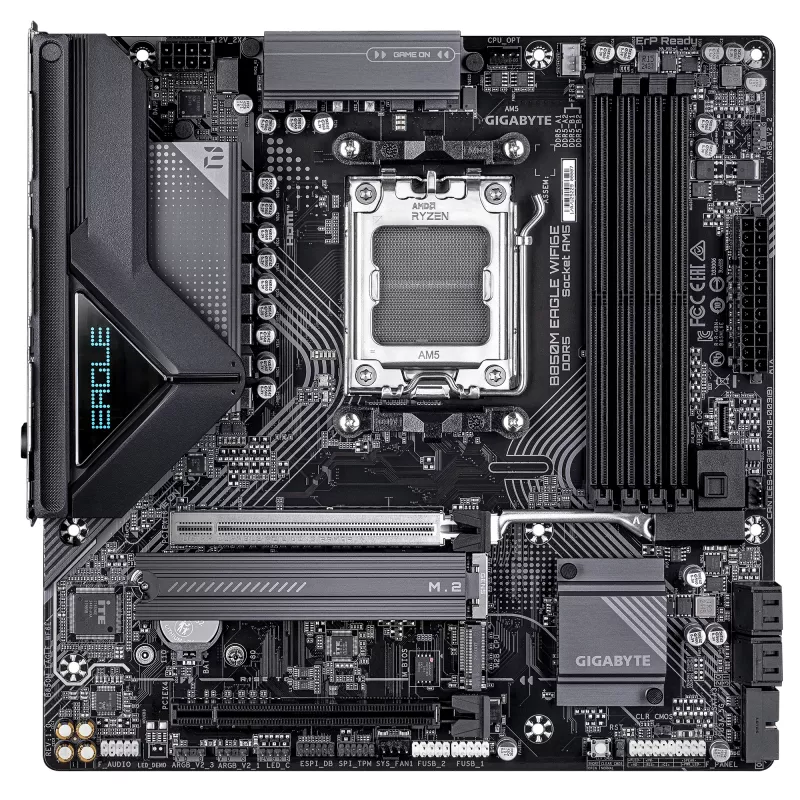

GIGABYTE B850M EAGLE WIFI6E is a micro‑ATX motherboard for Socket AM5 designed for AMD Ryzen 7000, 8000 and 9000 series processors. It supports DDR5 memory with four DIMM slots (up to 256 GB and up to 8200 MT/s with overclocking), features a digital 8+2+2 phase VRM, PCIe 5.0 x16 for the GPU and multiple M.2 slots including PCIe 5.0/4.0, as well as modern connectivity such as 2.5 GbE LAN and Wi‑Fi 6E. The board provides a compact platform for high‑performance gaming, content creation and productivity systems that require fast memory, advanced storage and updated networking.

Advantages

The motherboard combines compact micro‑ATX sizing with enthusiast‑level features: strong power delivery through a digital twin 8+2+2 phase VRM, high memory frequency support (DDR5 OC up to 8200 MT/s), and PCIe 5.0 expansion for next‑generation GPUs or devices. Integrated Wi‑Fi 6E and 2.5 GbE LAN offer fast networking, while multiple M.2 slots (including PCIe 5.0 x4) and SATA III with RAID support provide flexible, ultra‑fast storage options. Practical design details such as EZ‑Latch Plus for screwless PCIe/M.2 installation and WIFI EZ‑Plug for easy antenna mounting simplify assembly and upgrades.

Suitable for

• High‑performance gaming builds with AM5 processors
• Content creation and video editing systems requiring fast memory and storage
• Compact productivity or workstation PCs where micro‑ATX size is preferred

Key specifications

• Form factor: Micro ATX
• Chipset: AMD B850
• CPU socket: Socket AM5 — supports AMD Ryzen 7000 / 8000 / 9000 Series
• Memory: 4× DDR5 DIMM slots, up to 256 GB, DDR5 OC up to 8200 MT/s (OC)
• Power delivery: Digital twin 8+2+2 phases VRM
• Expansion: 1× PCIe 5.0 x16
• Storage: 2× M.2 (including PCIe 5.0 x4 support), SATA III, RAID 0/1/5/10, up to 6 drives supported
• Audio: Realtek ALC897, 7.1 channels

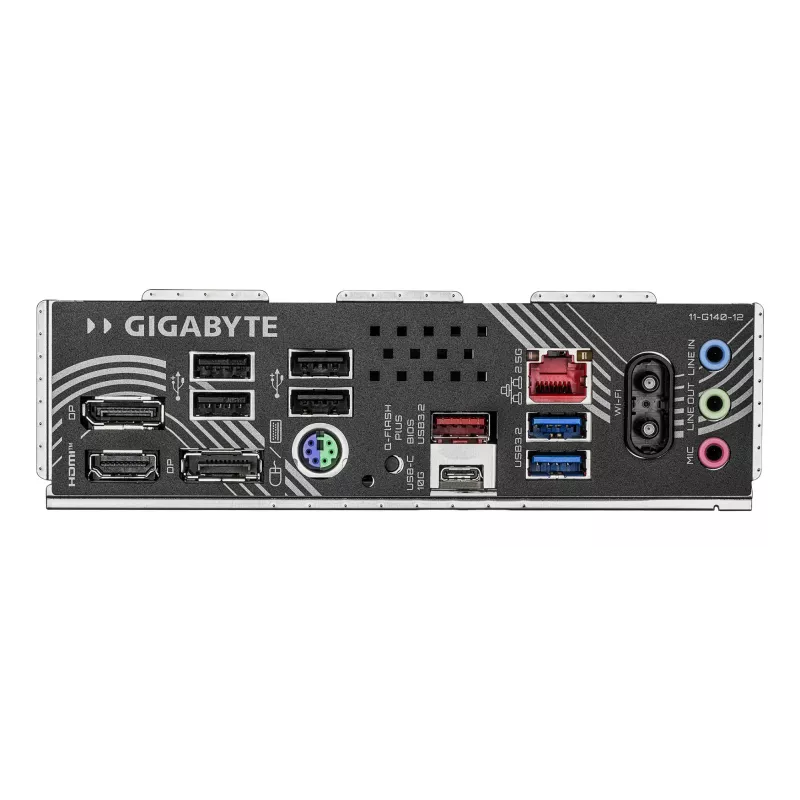

• Networking: 2.5 GbE LAN, Wi‑Fi 6E (802.11ax) with high‑gain antenna, Bluetooth 5.3
• BIOS: UEFI AMI 256 Mbit, ACPI 5.0, Clear CMOS jumper

How to use

Install the GIGABYTE B850M EAGLE WIFI6E into a compatible micro‑ATX case, mount an AM5‑compatible AMD Ryzen CPU and attach the CPU cooler according to the cooler manufacturer’s instructions. Populate up to four DDR5 memory modules, connect storage devices to M.2 slots or SATA ports, and install the GPU into the PCIe 5.0 x16 slot if required. Attach the Wi‑Fi antenna using the WIFI EZ‑Plug and connect power from the PSU to the 24‑pin ATX and CPU power headers. Configure boot order and memory settings (AMD EXPO profiles) in the UEFI BIOS and enable RAID or storage settings as needed.

Recommendations

For stable high‑frequency memory operation and overclocking, use quality DDR5 kits with compatible EXPO profiles, ensure adequate CPU cooling and a reliable power supply, and update the BIOS to the latest version before heavy workloads or OC adjustments.
